Chapter 2: Motherboard Installation
I/O Ports

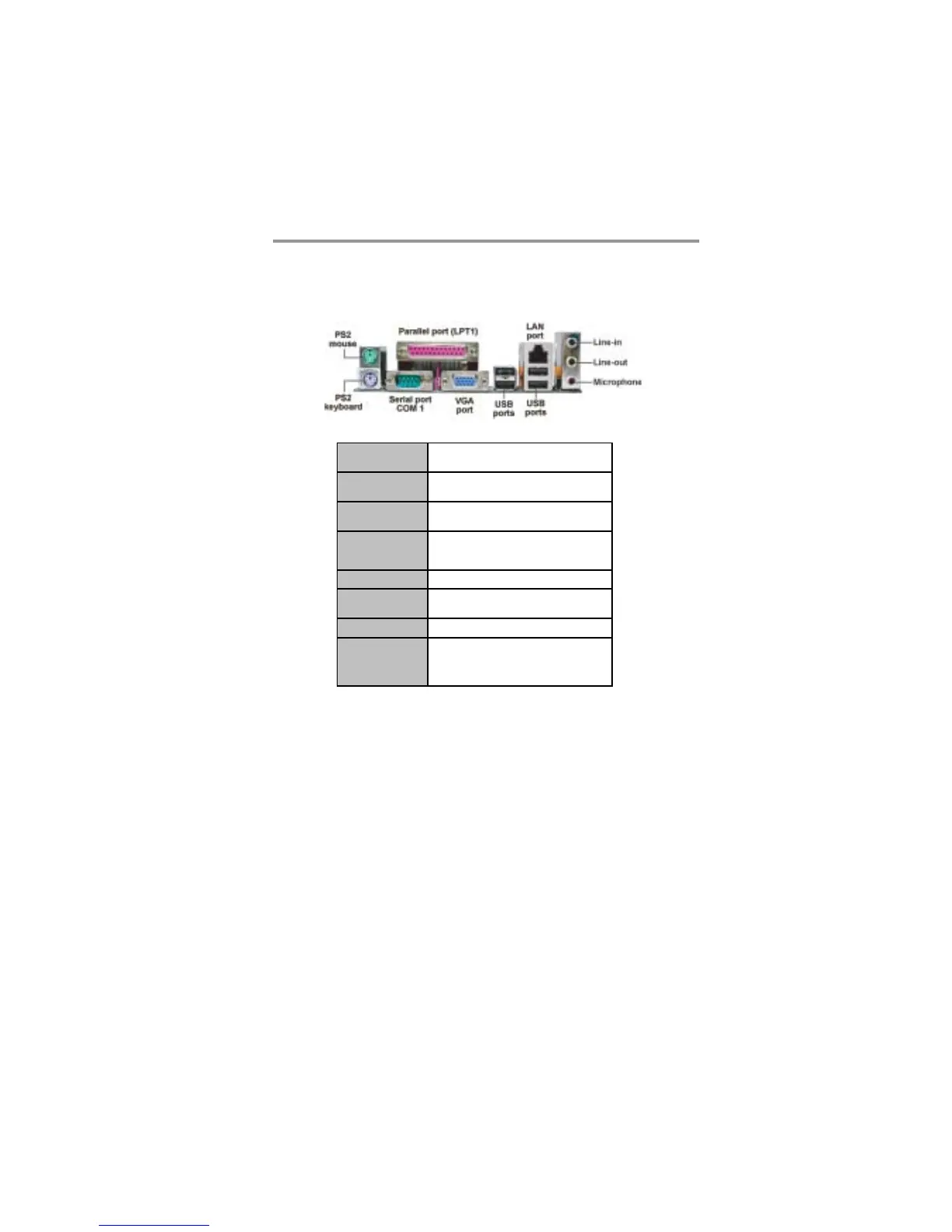

The illustration below shows a side view of the built-in I/O ports on the
motherboard.
Installing the Processor
This motherboard has a socket 754 processor socket. When choosing a proces-
sor, consider the performance requirements of the system. Performance is based
on the processor design, the clock speed and system bus frequency of the
processor, and the quantity of internal cache memory and external cache
memory.
PS/2 Mouse
Use the upper PS/2 port to connect a PS/2 pointing
device.
PS/2 Keyboard
Use the low er PS/2 port to connect a PS/2
keyboard.
Parallel Port (LPT1)
Use the Parallel port to connect printers or other
parallel communications devices.
Serial Port (COM1)
Use the COM port to connect serial devices such
as mice or fax/modems. COM1 is identified by the
system as COM1.
VGA Port
Use the VGA port to connect VGA devices.
LAN Port (optional)
Connect an RJ-45 jack to the LAN port to connect
your computer to the Netw ork.
USB Por ts
Use the USB ports to connect USB devices.
Audio Ports
Use these three audio jacks to connect audio
devices. The first jack is for stereo Line-In signal,
the second jack for stereo Line-Out signal, and the
third jack for Microphone.
