ECS A55F-M3 User Manual

12
Installing the Motherboard
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM only.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.

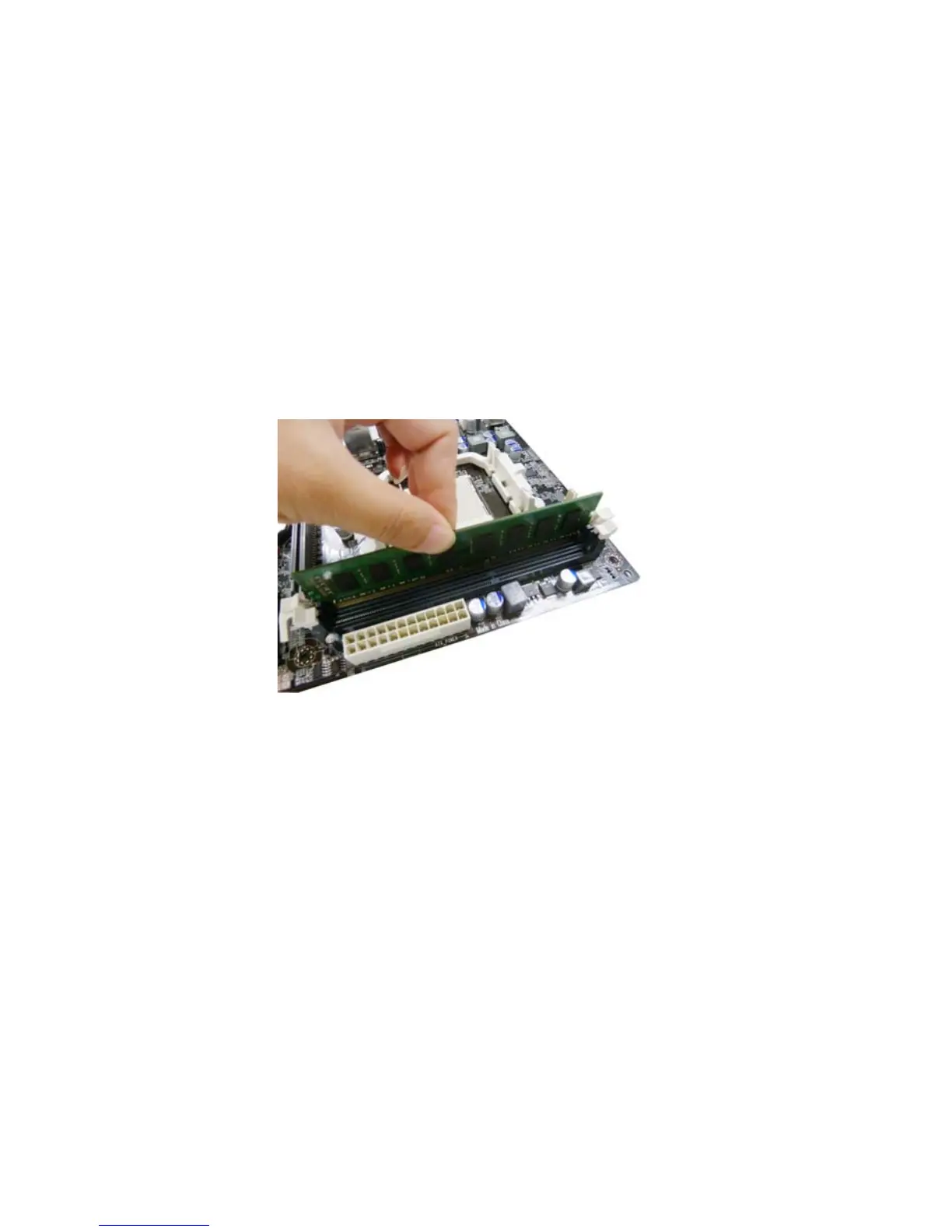

5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Install any remaining DIMM modules.
* For reference only

ECS A55F-M3 Specifications

General

Memory channels	Dual-channel
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon X2 Dual-Core, AMD Sempron
USB 2.0 connectors	2
Power fan connector	Yes
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP, Vista
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabti Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	180 mm
Width	230 mm
