Installing the Motherboard

Refer to the illustration below for proper installation:

This motherboard supports the “Hot-Plug” function.

1 Attach either cable end to the connector on the motherboard.

2 Attach the other cable end to the SATA hard drive.

3 Attach the SATA power cable to the SATA hard drive and connect the

other end to the power supply.

About SATA Connectors

Your motherboard features four SATA connectors supporting a total of four drives.

SATA refers to Serial ATA (Advanced Technology Attachment) is the standard inter-

face for the IDE hard drives which are currently used in most PCs. These connectors

are well designed and will only fit in one orientation. Locate the SATA connectors on

the motherboard and follow the illustration below to install the SATA hard drives.

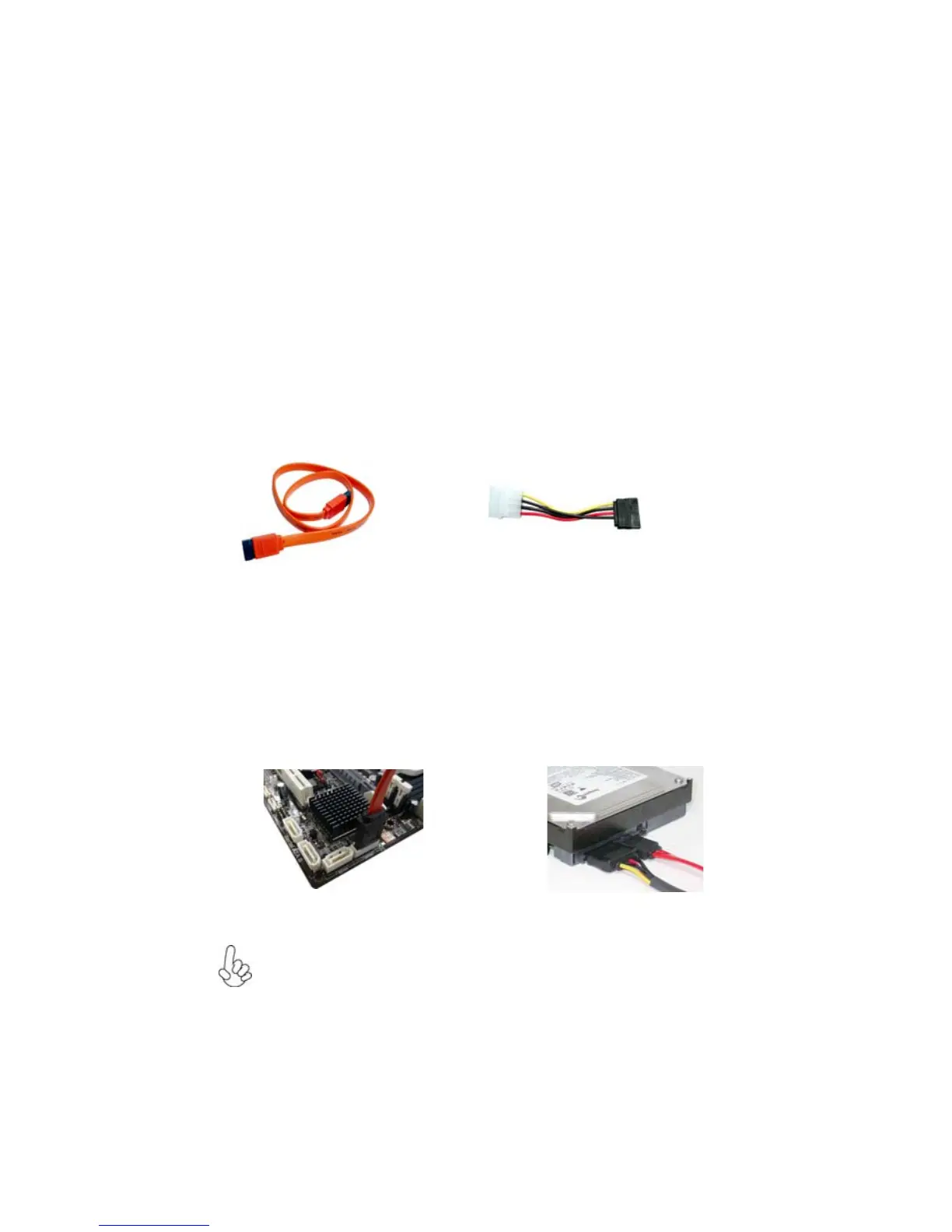

Installing Serial ATA Hard Drives

To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the

Serial ATA protocol. This SATA cable comes with an SATA power cable. You can

connect either end of the SATA cable to the SATA hard drive or the connector on the

motherboard.

SATA cable (optional)

SATA power cable (optional)

* For reference only

Installing a SATA Hard Drive

This section describes how to install a SATA hard drive.

Questions and Answers:

Need help?

Do you have a question about the ECS A55F-M3 and is the answer not in the manual?

ECS A55F-M3 Specifications

General

Memory channels	Dual-channel
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon X2 Dual-Core, AMD Sempron
USB 2.0 connectors	2
Power fan connector	Yes
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP, Vista
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabti Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
BIOS memory size	16 Mbit
