ECS A55F-M3 User Manual

15
Installing the Motherboard
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:

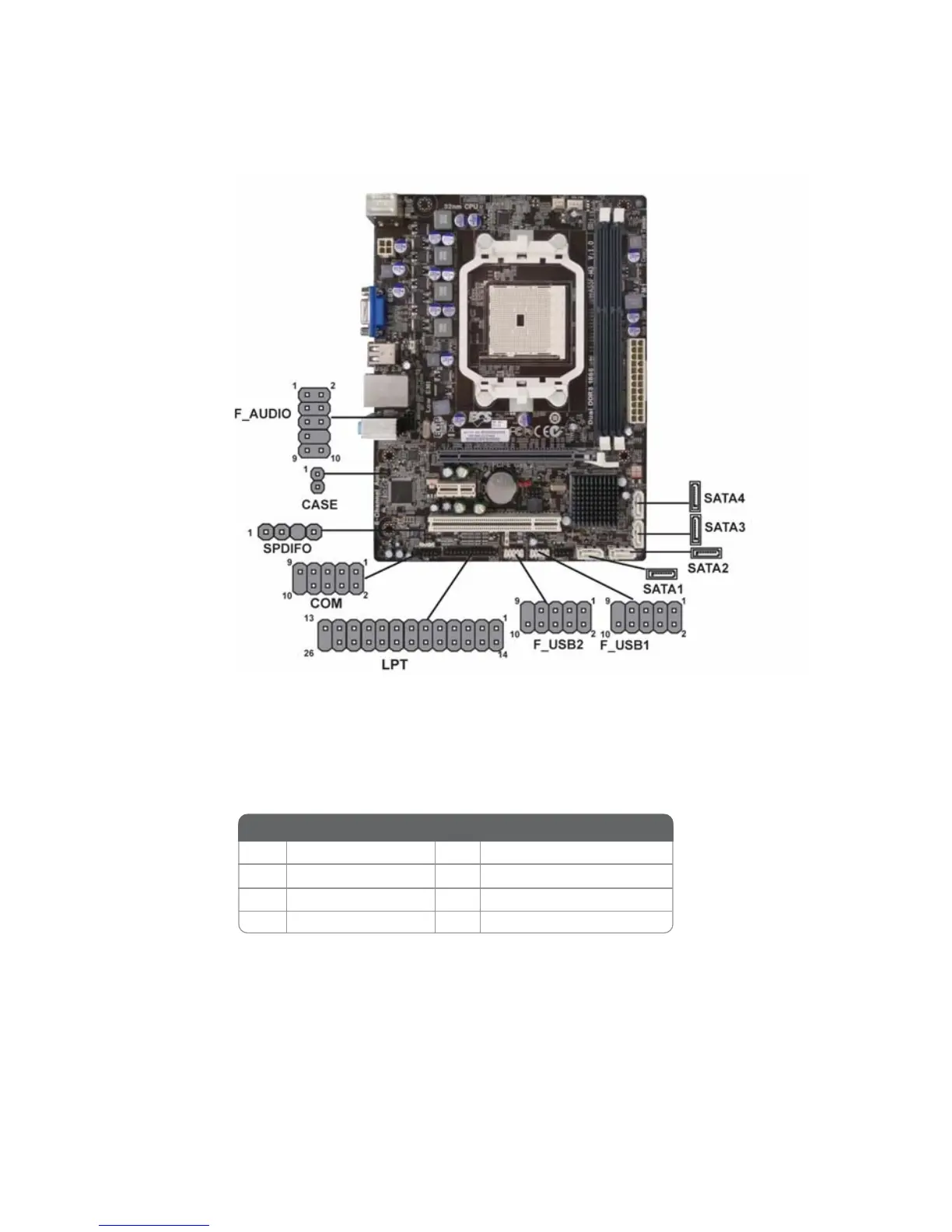

SATA1~4: Serial ATA connectors
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground - -
Pin Signal Name
Pin Signal Name
These connectors are used to support the Serial ATA II devices, simpler disk drive
cabling and easier PC assembly. It eliminates limitation of the current Parallel ATA
interface. But maintains register compatibility and software compatibility with
Parallel ATA.

ECS A55F-M3 Specifications

General

Memory channels	Dual-channel
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon X2 Dual-Core, AMD Sempron
USB 2.0 connectors	2
Power fan connector	Yes
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP, Vista
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabti Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	180 mm
Width	230 mm
