Chapter 2
15
B350AM4-M USER MANUAL

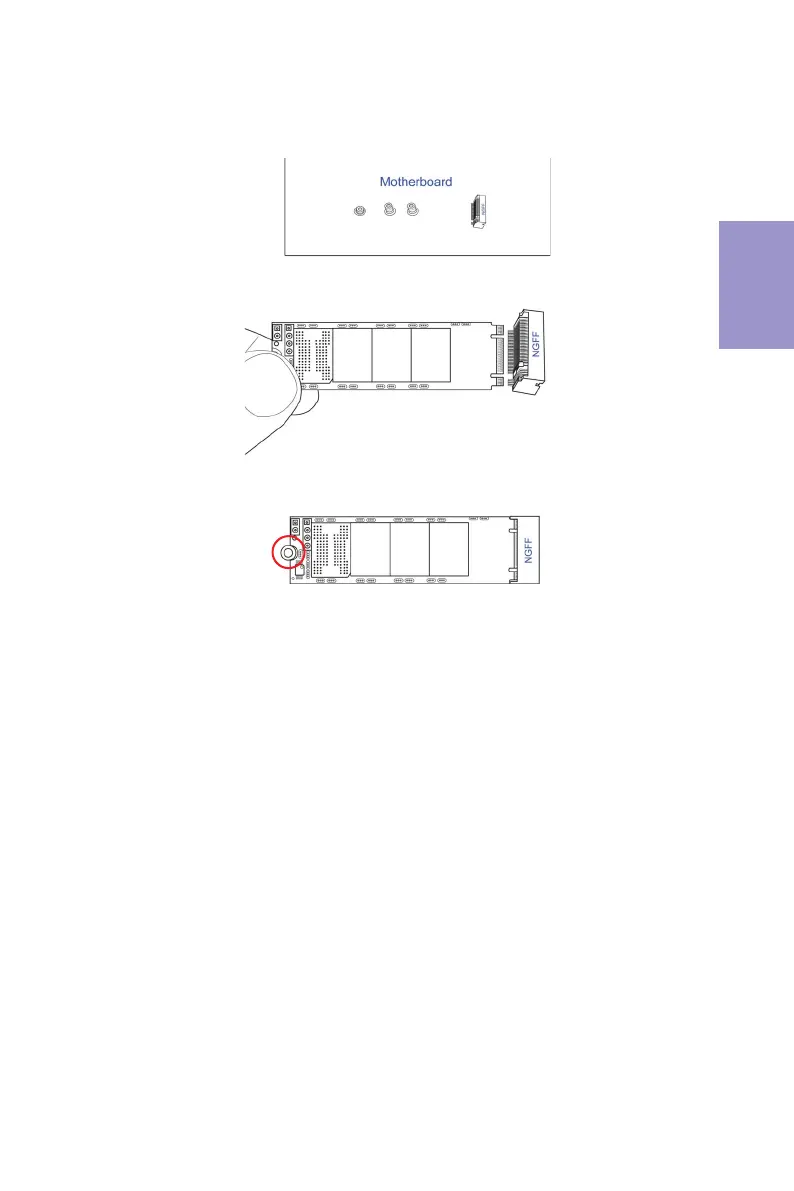

Please refer the following steps to install the M.2 SSD card:
1
Demount the screw not used according to the length of your M.2 SSD card.
2
Insert the M.2 SSD card into NGFF slot in the f
ool-proof wa
y
.
3
Lock the screw as the following picture shows to make sure the M.2 SSD
card is installed in place.
