ECS B350AM4-M User Manual

Chapter 3
B350AM4-M USER MANUAL
33

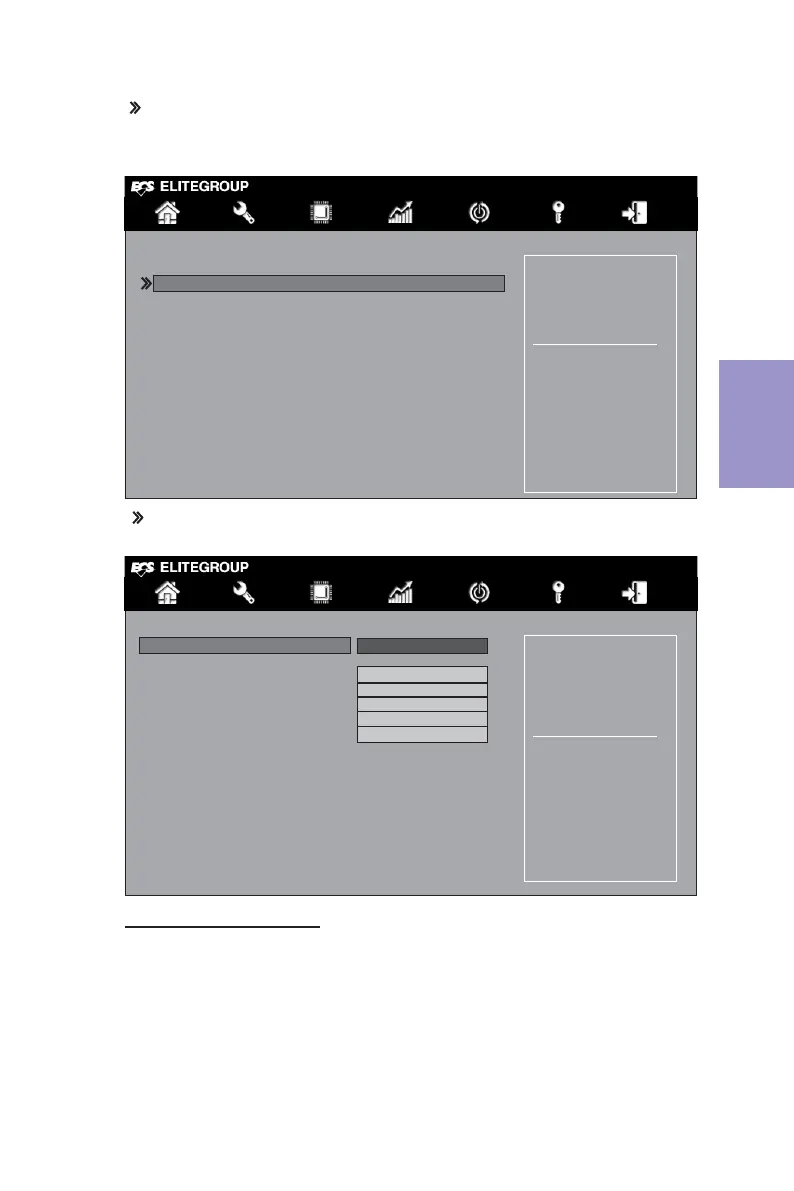

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
 Smart Fan Function
Main Advanced Chipset M.I.B. X Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Tct1 42
System Temperature 36
O
C
CPU Fan 1 Speed 2766 RPM
System Fan 1 Speed 0 RPM
System Fan 2 Speed 3183 RPM
Core Voltage 1.188V
DIMM Voltage 1.243V
+12V 12.078V
FCH Voltage 2.519V
DDR VPP Voltage 2.541V
VDDP Voltage 1.015V
Smart Fan Function
PC Health Status
Smart Fan Select
Main Advanced Chipset M.I.B. X Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Smart Fan Select CPU Fan 1
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP 70
DeltaT 3
Smart Fan Slope PWM value 10
Fan Full Speed Offset 77
Smart Fan Select (CPU Fan 1)
This item allows you to change and configure Smart Fans on M/B. ex. CPU Fan1,
System Fan1, System Fan2.
