Chapter 2
10
B75H2-M2 USER MANUAL

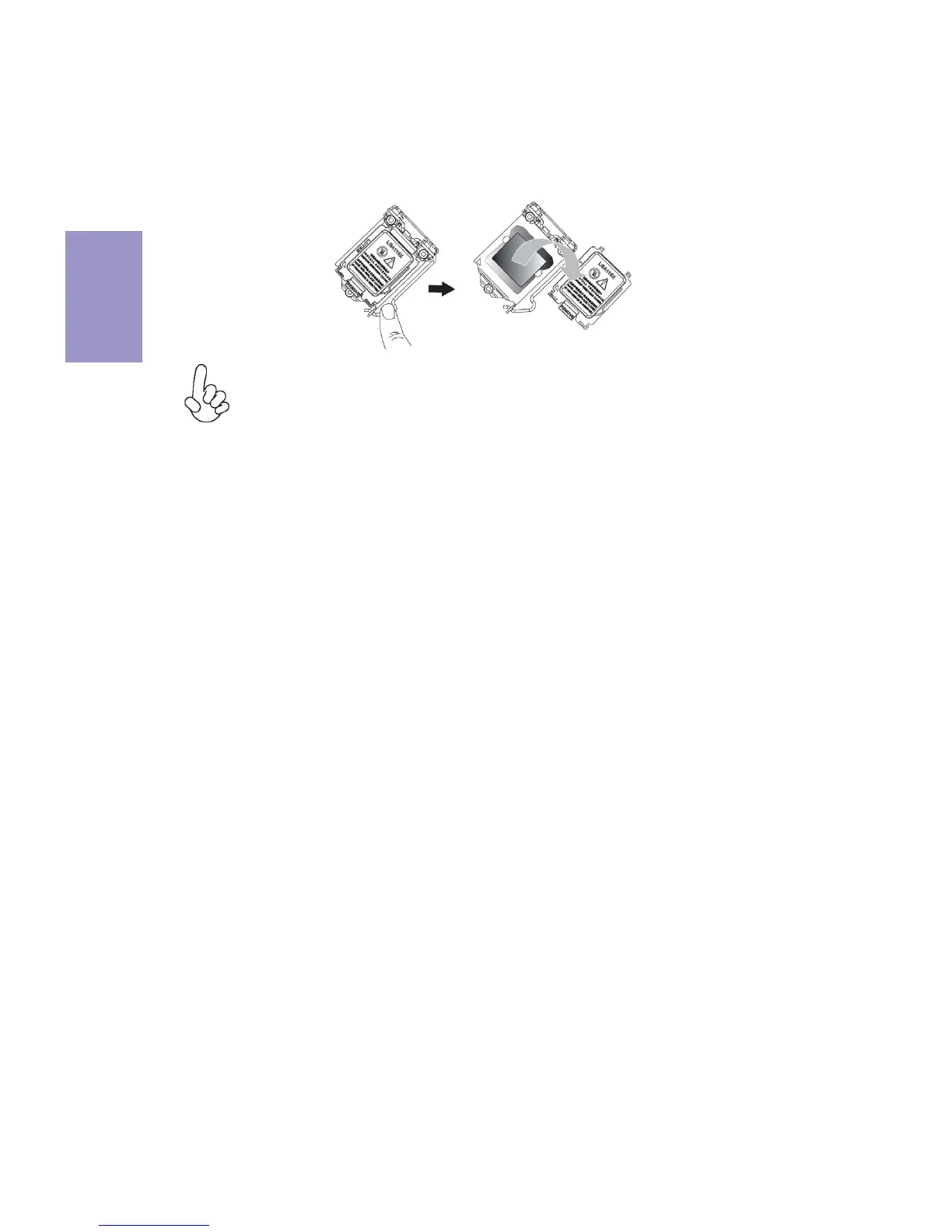

D. Rotate the load plate onto the package IHS (Intergraded Heat
Spreader). Engage the load lever while pressing down lightly onto the
load plate. Secure the load lever with the hook under retention tab. Then
the cov
er will flick automatically
.
Please save and replace the cover onto the CPU socket if processor is re-
moved.
13
15
Table of Contents
Default Chapter
2
About the Manual
2
Canadian Department of Communications
2
Declaration of Conformity
2
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Package Contents
5
Specifications
6
Motherboard Components
8
I/O Ports
10
Chapter 2 Installing the Motherboard
11
Safety Precautions
11
Installing the Motherboard in a Chassis
11
Checking Jumper Settings
12
Installing Hardware
13
Installing the Processor
13
Installing the CPU Cooler
15
Installing Memory Modules
16
Installing Add-On Cards
17
Connecting Optional Devices
19
Installing a SATA Hard Drive
25
Connecting Case Components
26
Front Panel Header
28
Chapter 3 Using BIOS
31
About the Setup Utility
31
The Standard Configuration
31
Entering the Setup Utility
31
Resetting the Default CMOS Values
32
Using BIOS
32
BIOS Navigation Keys
33
Main Menu
34
Advanced Menu
35
Lan Configuration
36
Pc Health Status
37
Power Management Setup
39
Acpi Configuration
40
Cpu Configuration
41
Sata Configuration
43
Usb Configuration
44
Trusted Computing
45
Intel Rapid Start Technology
45
Chipset Menu
47
MB Intelligent Bios III) Menu
50
Boot Menu
55
Security Menu
56
Exit Menu
57
Updating the BIOS
58
Chapter 4 Using the Motherboard Software
59
Auto-Installing under Windows Xp/Vista/7
59
Running Setup
59
Manual Installation
61
ECS Utility Software (Intelligent EZ Utility)
61
Chapter 5 Trouble Shooting
63
Start up Problems During Assembly
63
Start up Problems after Prolong Use
64
Maintenance and Care Tips
64
Basic Troubleshooting Flowchart
65
