Chapter 2
22
B75H2-M2 USER MANUAL

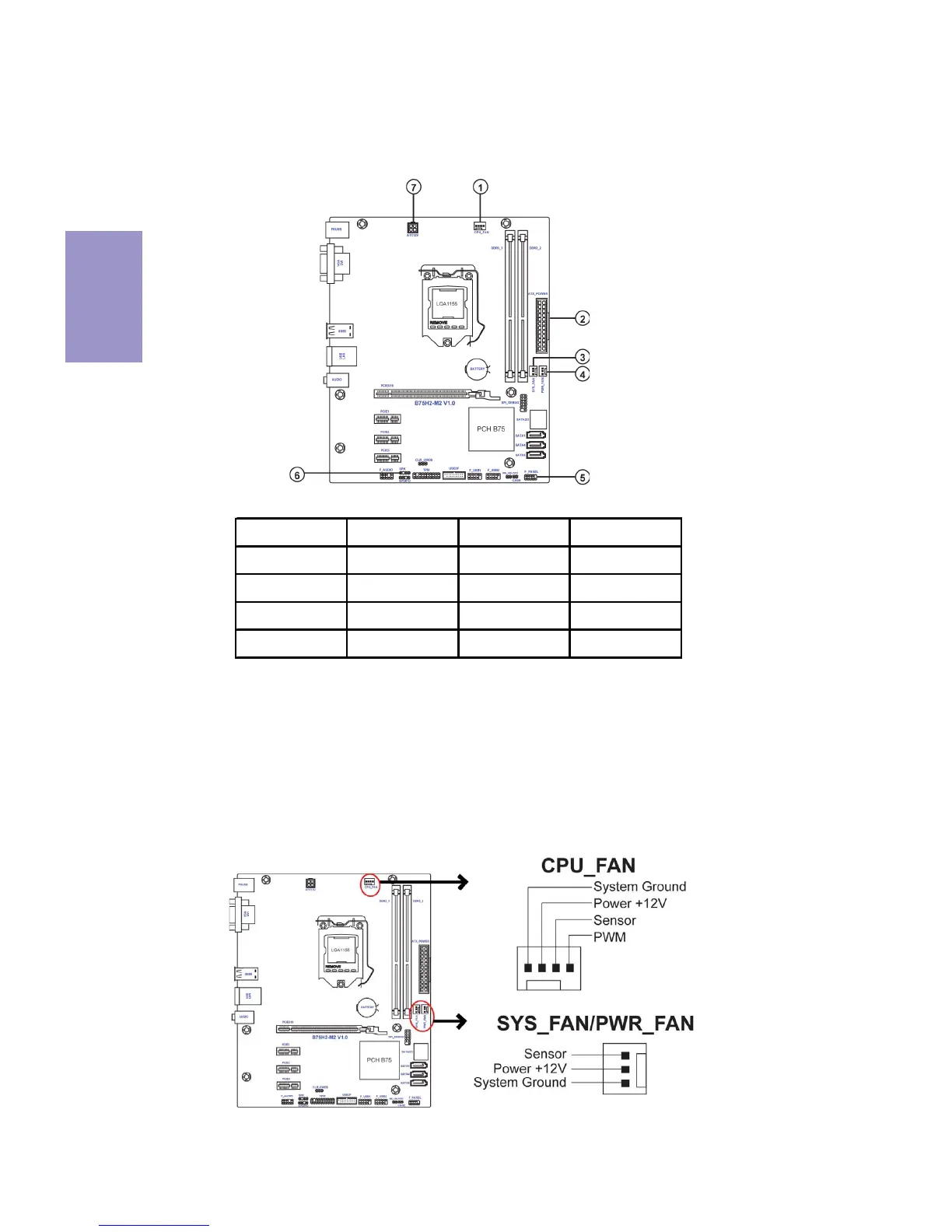

1, 3 & 4. CPU_FAN(CPU cooling FAN Power Connector) & SYS_FAN(System
Cooling FAN Power Connector)& PWR_FAN(Power Cooling FAN Power Connec-
tor)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
2-4-7. Connecting Case Components
No. Components No. Components
1 CPU_FAN 5 F_PANEL
2ATX_POWER6 SPK
3 SYS_FAN 7 ATX_12V
4PWR_FAN - -
Connect the power cooling fan connector to PWR_FAN.
