B75H2-M2 USER MANUAL
SATA2~5 connectors are used to support the Serial ATA 3.0Gb/s device, SATA1 connec-
tor supports the Serial ATA 6.0Gb/s device, simpler disk drive cabling and easier PC
assembly. It eliminates limitations of the current Parallel ATA interface. But main-
tains register compatibility and software compatibility with Parallel ATA.

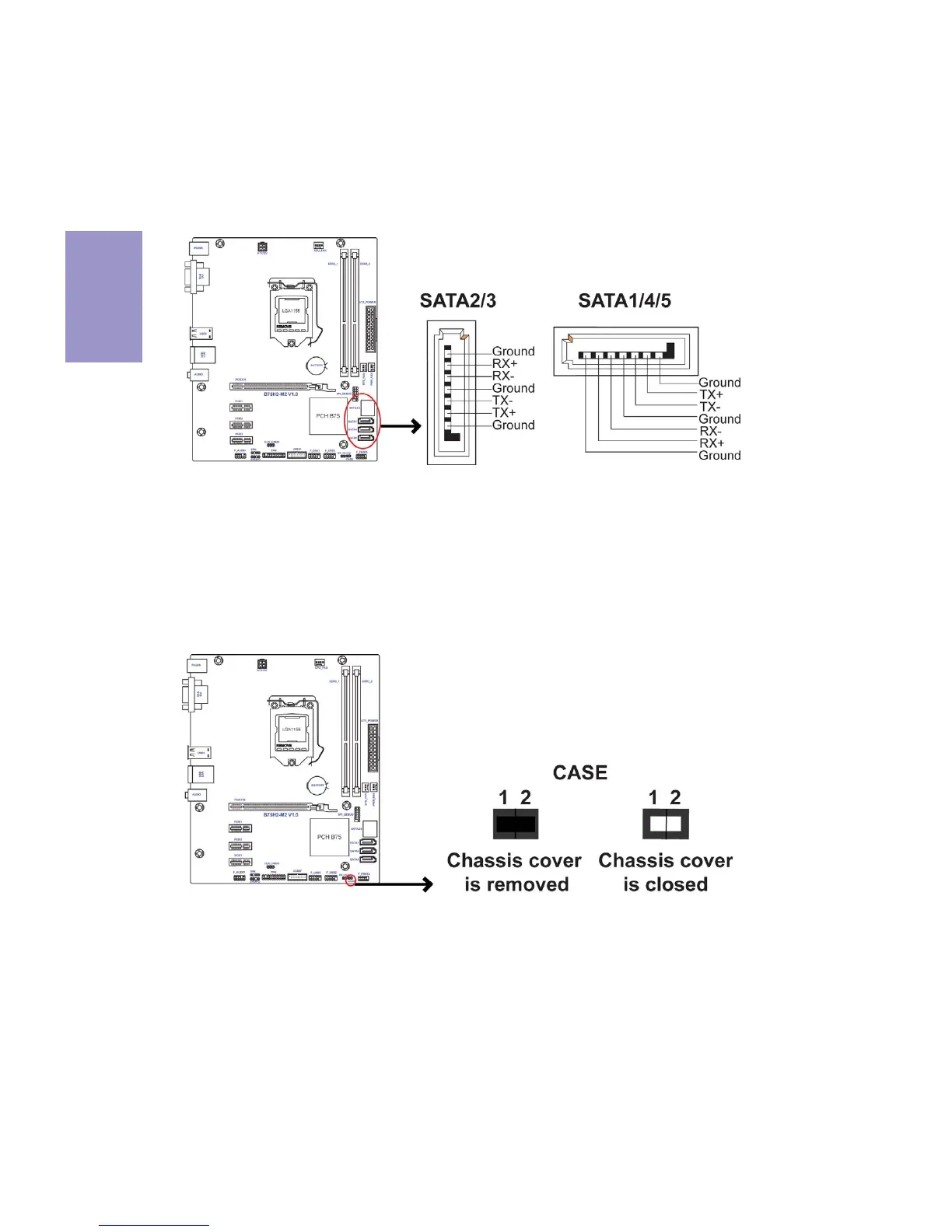

1. SATA1~5: Serial ATA connectors
2. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
