Chapter 2
18
B75H2-M2 USER MANUAL
T
rusted platf
orm module (TPM) is a published specification detailing a micr
o con-
troller that can store secured information, and implementations of that specifica-
tion.
6. TPM: T
rust
ed Platf
orm Module header

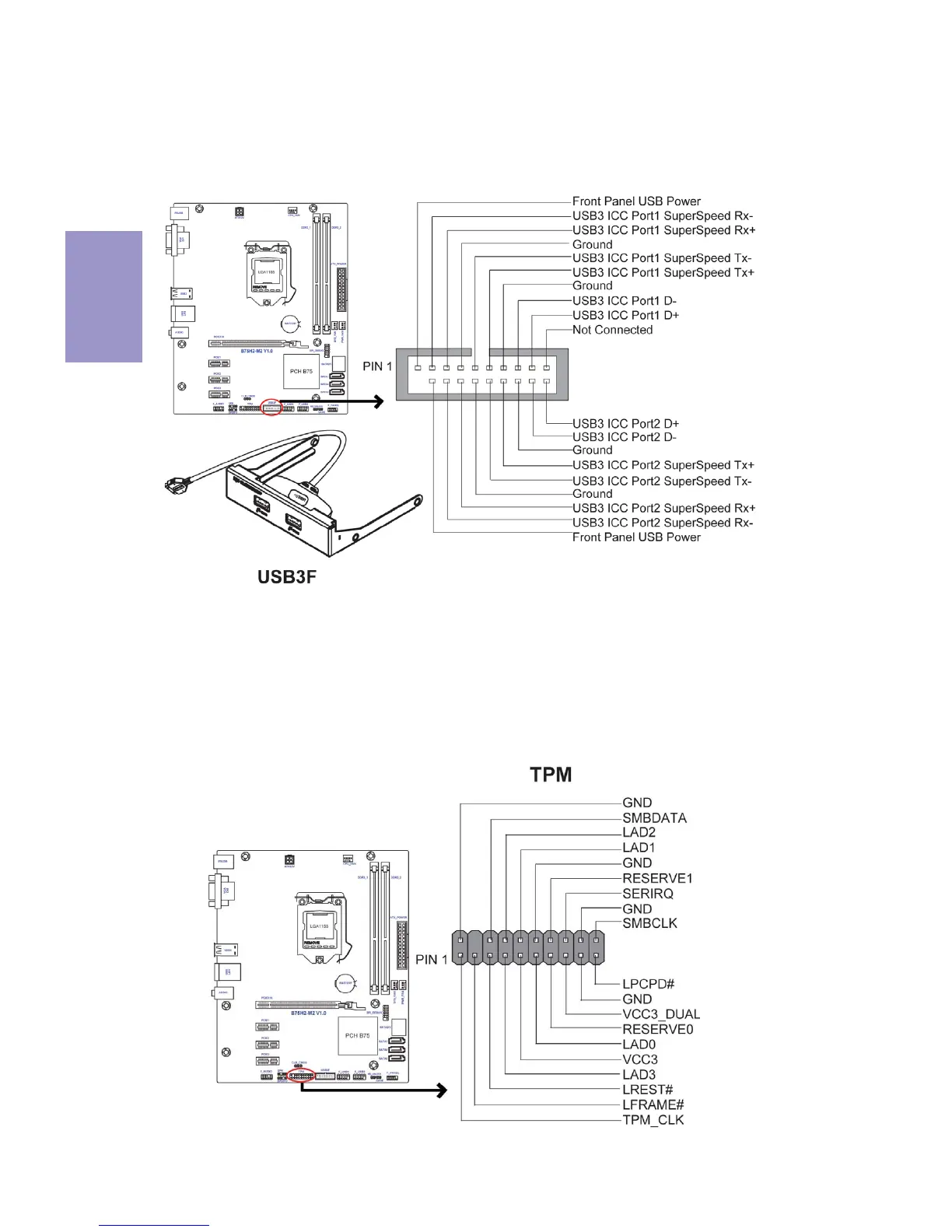

This Motherboard implements one USB 3.0 header supporting 2 extra front USB
3.0 ports, which delivers 5Gb/s transfer rate.
5. USB3F: Front Panel USB 3.0 header
21
23
