ECS B75H2-M3 Manual

Chapter 3
B75H2-M3 USER MANUAL
33
CPU Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
Delta T +3
Smart Fan Slope PWM value 10 PWM value/unite
CPU Fan Full Speed Offset (-) 23
System Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 80
Smart Fan start PWM TEMP(-) 30
Delta T +3
Smart Fan Slope PWM value 10 PWM value/unite
System Fan Full Speed Offset (-) 13
Power Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 80
Smart Fan start PWM TEMP(-) 30
Delta T +3
Smart Fan Slope PWM value 10 PWM value/unite
Power Fan Full Speed Offset (-) 13
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.

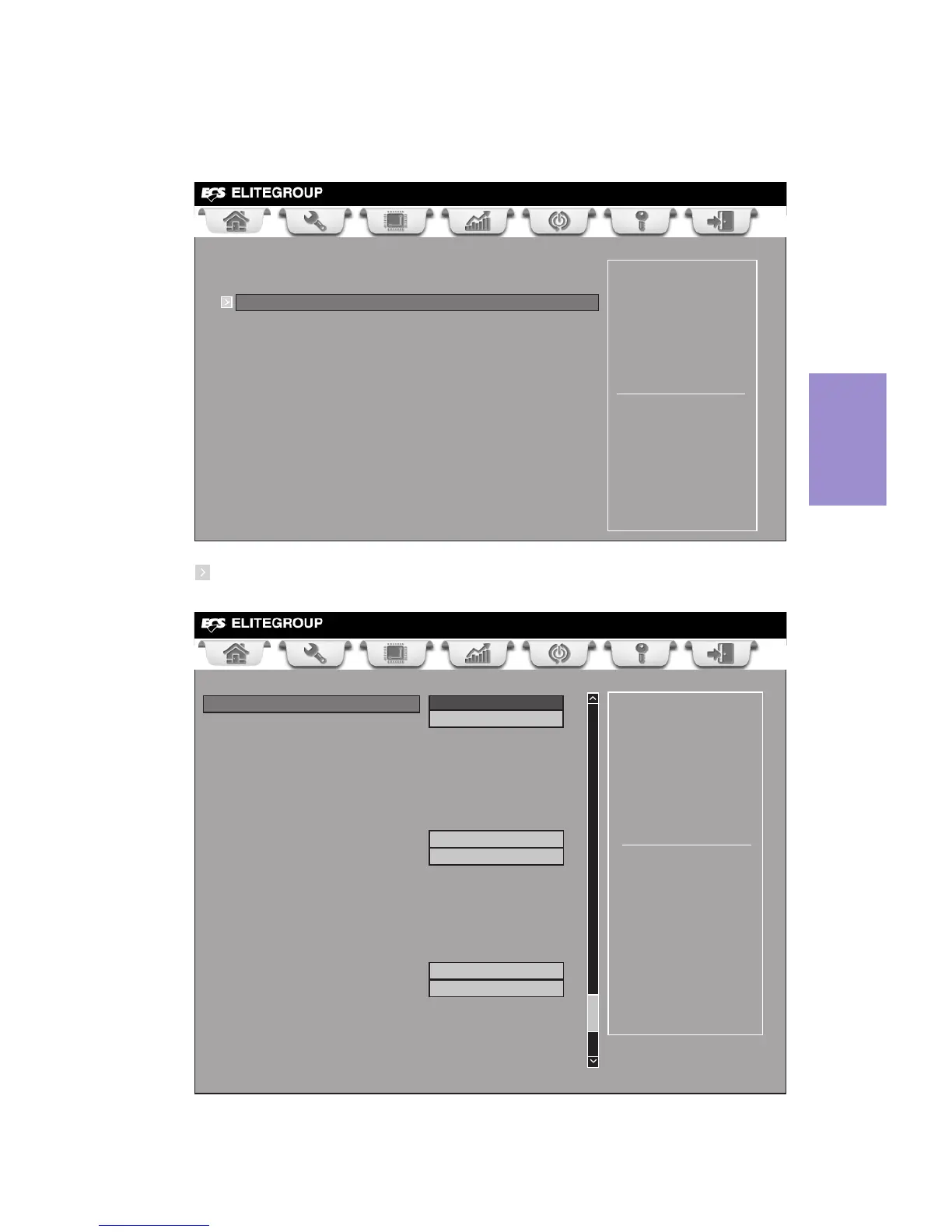

Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select

: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Fan Speed : 2872 RPM
System Fan Speed : 0 RPM
Power Fan Speed : 0 RPM
CPU Voltage : 1.068V
DIMM Voltage : 1.500V
VTT Voltage : 1.044V
-=- PECI Mode -=-
Offset to TCC Activation Temp. : -60
Smart Fan Function
PC Health Status

Enable CPU Smart Fan
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
