ECS B85H3-M3 User Manual

Chapter 3
B85H3-M3 USER MANUAL
58
Press <Esc> to return to the M.I.B. III Menu page.
Memory Configuration

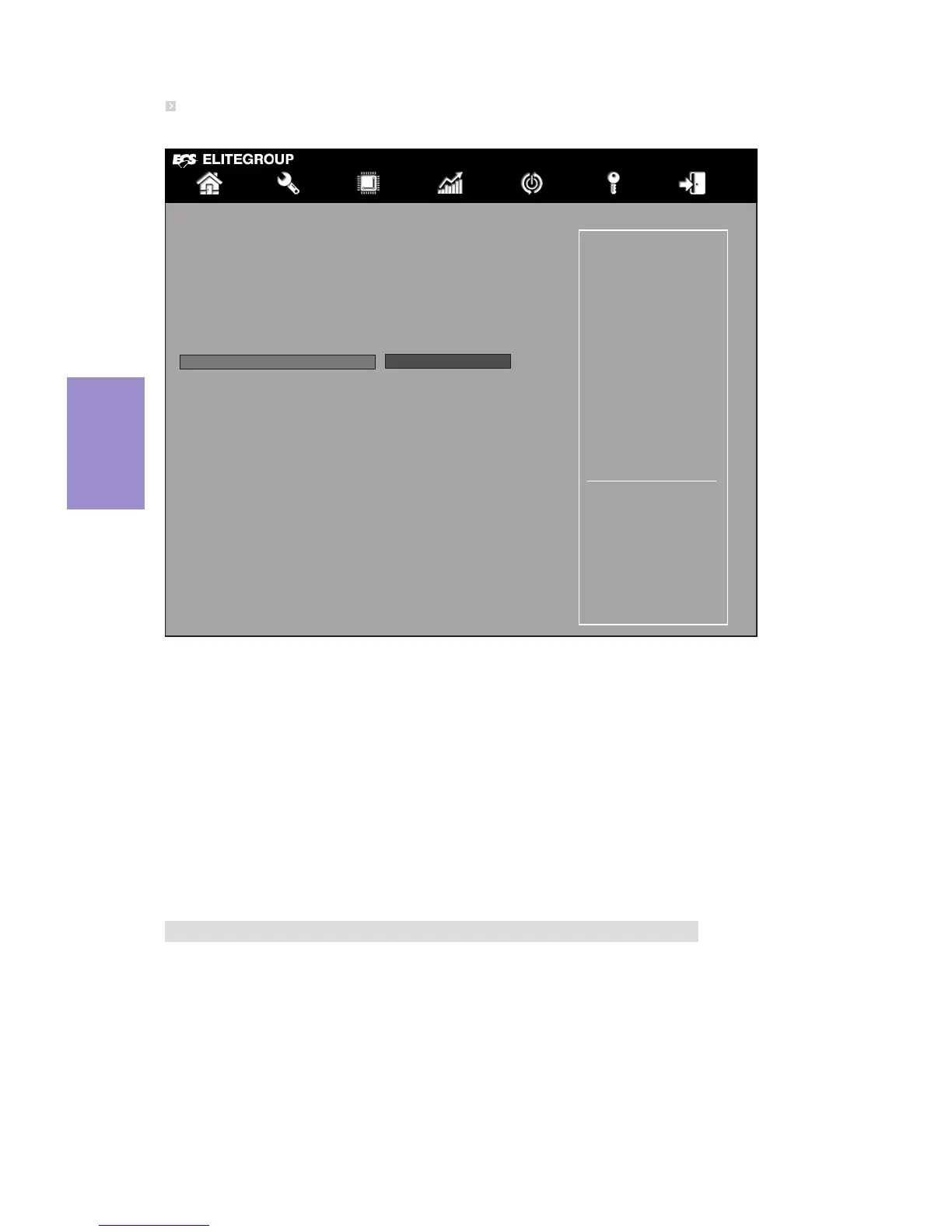

Scroll to this item to view the following screen:
Memory RC Version (1.1.0.1)
Memory Frequency (1600 Mhz)
This item shows the memory frequency.
Total Memory 4096 MB(DDR3)
This item shows the total memory.
XMP Profile 1/2 (Supported/Not Supported)
These items show your motherboard supporting the XMP profile 1/2 or not.
Memory Profiles (Automatic)
This item allows you to select the memory mode: Automatic, Manual, XMP Profile 1
or 2.
F4: Save & Exit
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Memory Information
Memory RC Version 1.1.0.1
Memory Frequency 1600 Mhz
Total Memory 4096 MB(DDR3)
XMP Profile 1 Supported
XMP Profile 2 Not Supported
Memory Profiles Automatic
Memory Frequency 1600
Tming Default Current Target
tCL 9 9 9
tRCD 9 9 9
tRP 9 9 9
tRAS 24 24 24
NMode 1 1 Auto
tWR 12 12 12
tRFC 128 128 128
tRRD 5 5 5
tWTR 6 6 6
tRTP 6 6 6
tCWL 8 8 8
tREFI 6240 6240 6240
tFAW 24 24 24
The selection of Memory
Profiles which impacts
memory sizing behavior.
This item shows the Memory RC Version.
