This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.
M.I.B. III (MB Intelligent BIOS III) Menu
CPU Configuration

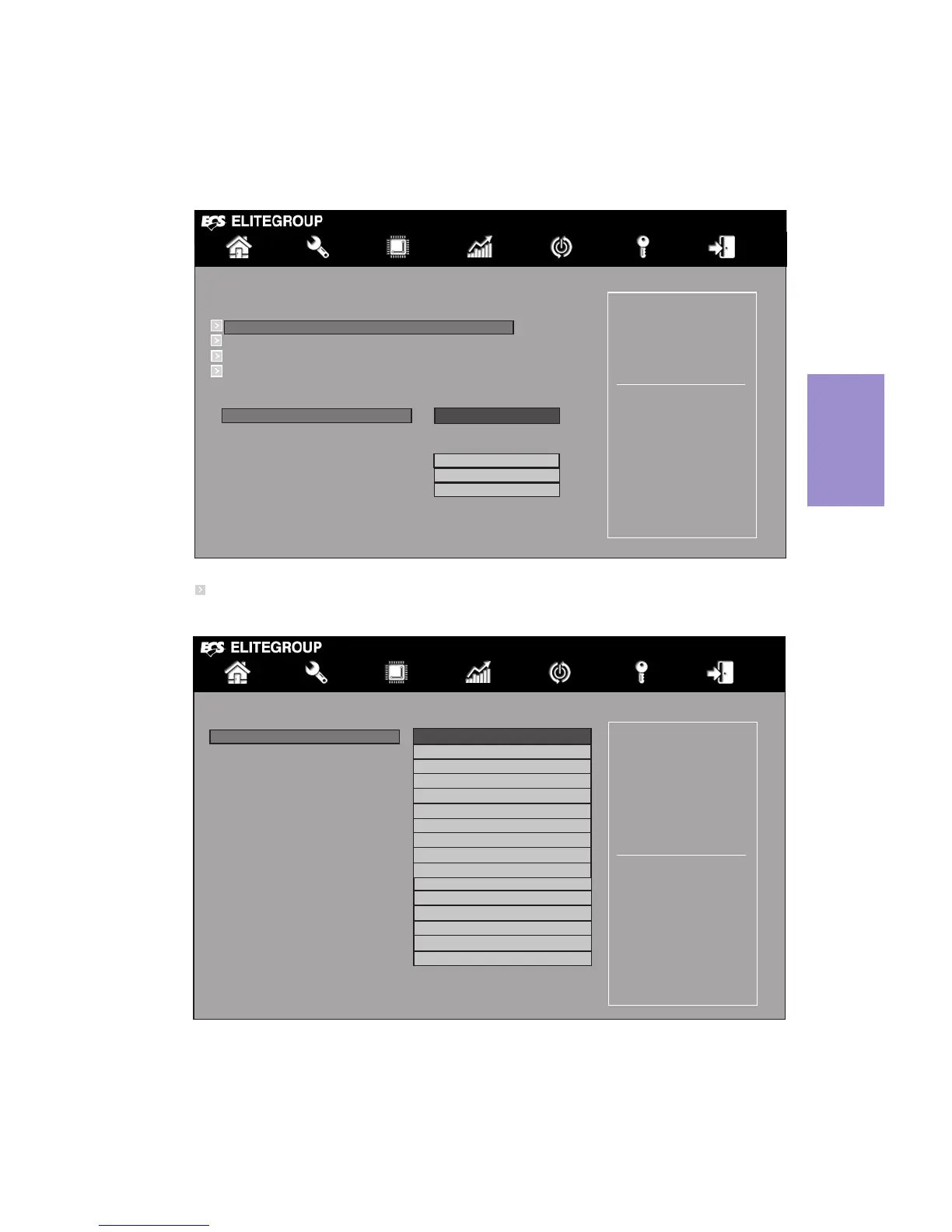

Scroll to this item to view the following screen:
ME Subsystem Help
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Configuration
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Non Turbo Ratio Override
M.I.B. III (MB Intelligent BIOS III)
CPU Configuration
North Bridge Configuration
Memory Configuration
Over Voltage Configuration
Spread Spectrum Enabled
Intel(R) Core(TM) i7-4765T CPU @ 2.00GHz
Processor Speed 2600 MHz
Memory Frequency 1600 MHz
Total Memory 4096 MB (DDR3)
Non Turbo Ratio Override 20
Package Current Lock Disabled
IA Core Current max (1/8 Amp) 384
Enhanced Intel SpeedStep Technology Enabled
Turbo Mode Enabled
Boot Performance mode Turbo Performance
Package TDP Lock Enable Disabled
Power Limit 1 Value(Watt) 35
Power Limit 1 Time (Second) 8
Power Limit 2 Switch Enabled
Power Limit 2 Value(Watt) 43
1 Core Ratio Limit 30
2 Core Ratio Limit 29
3 Core Ratio Limit 27
4 Core Ratio Limit 26
Disable OverClocking Lock Enabled
