ECS B85H3-M7 User Manual

Chapter 3
B85H3-M7 USER MANUAL
58
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
This page enables you to set the keyboard NumLock state.

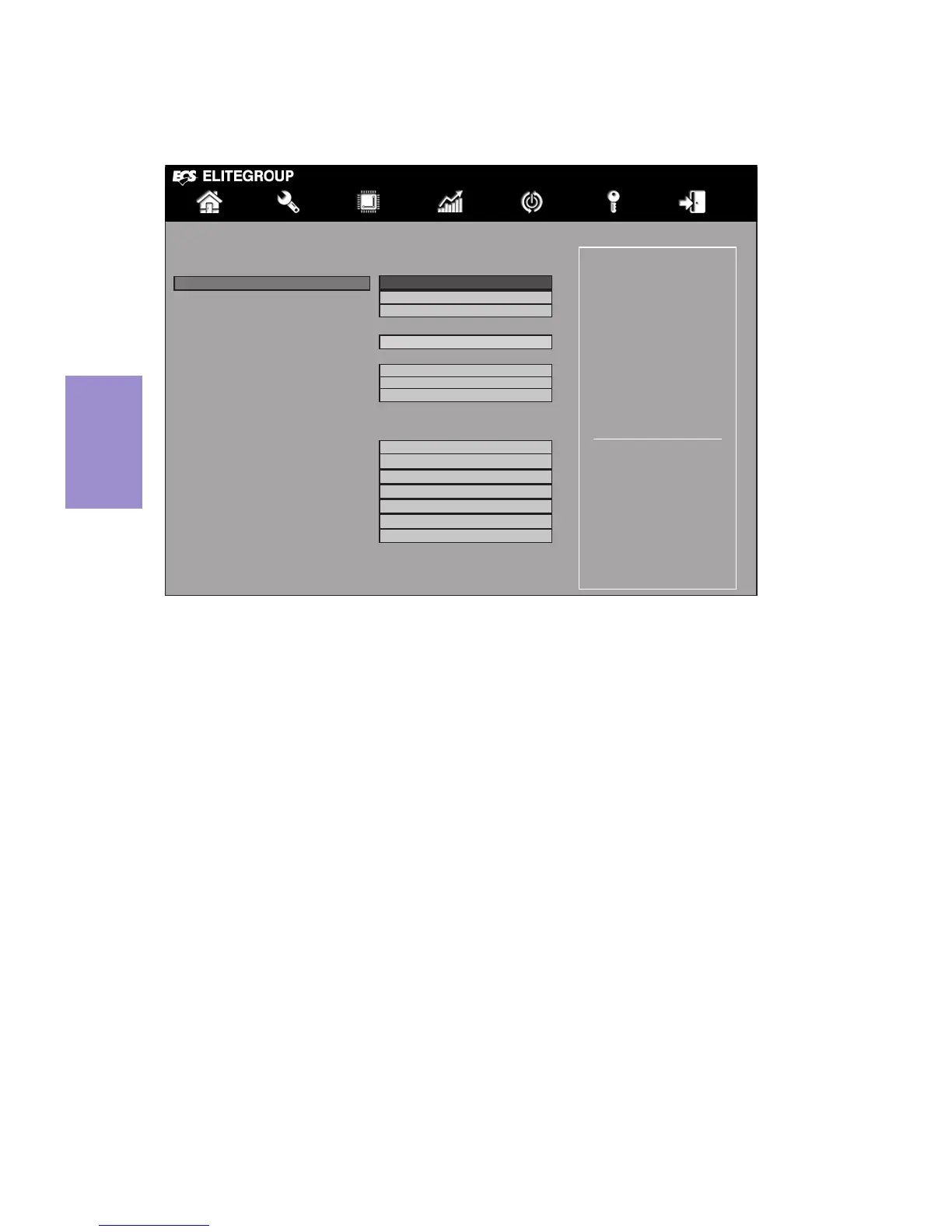

Boot Menu
Boot Configuration
This item shows the information of the Boot Configuration.
Operation System Select (Windows 7 or other OS)
This item is used to select the operation system.
Launch PXE OpROM (Disabled)
The item enables or disables launch PXE Option ROM.
Launch Storage OpROM (Enabled)
Use this item to enable or disable the Storage OpROM.
Fast Boot (Disabled)
This item enables or disables boot with initialization of a minimal set of device re-
quired to launch active boot option. Has no effect for BBS boot options.
Bootup NumLock State (On)
This item enables you to select NumLock state.
Quiet Boot (Enabled)
This item enables or disables quiet boot.
Boot mode select (LEGACY)
Use this item to select boot mode.
Set Boot Priority
This item enables you to set boot priority for all boot devices.
Boot Option #1 /2 /3 /4 /5 /6 /7
These items show the boot priorities.
Windows 7 or other OS:
Boot policy for Legacy OS.
Windows 8: Boot policy for
UEFI OS without
Compatibility Support
Module(CSM).
Manual: User customized
CSM parameters & boot
policy.
Boot Configuration
Operation System Select Windows 7 or other OS
Launch PXE OpROM Disabled
Launch Storage OpROM Enabled
Fast Boot Disabled
Bootup NumLock State On
Quiet Boot
Boot mode select
Set Boot Priority
Boot Option #1 Hard Disk
Boot Option #2 CD/DVD
Boot Option #3 USB/Floppy
Boot Option #4 USB CD/DVD
Boot Option #5 USB Hard Disk
Boot Option #6 USB Flash
Boot Option #7 Network
Enabled
LEGACY

ECS B85H3-M7 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1666 MHz
System bus rate	5 GT/s
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
Supported storage drive interfaces	SATA II, SATA III
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC662
Certification	CE/FCC \\r ErP/EuP \\r WHQL \\r WHCK
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® B85
Audio output channels	5.1 channels
Motherboard form factor	mini ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
BIOS type	AMI
ACPI version	5.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	180 mm
Width	225 mm
