5
Introducing the Motherboard

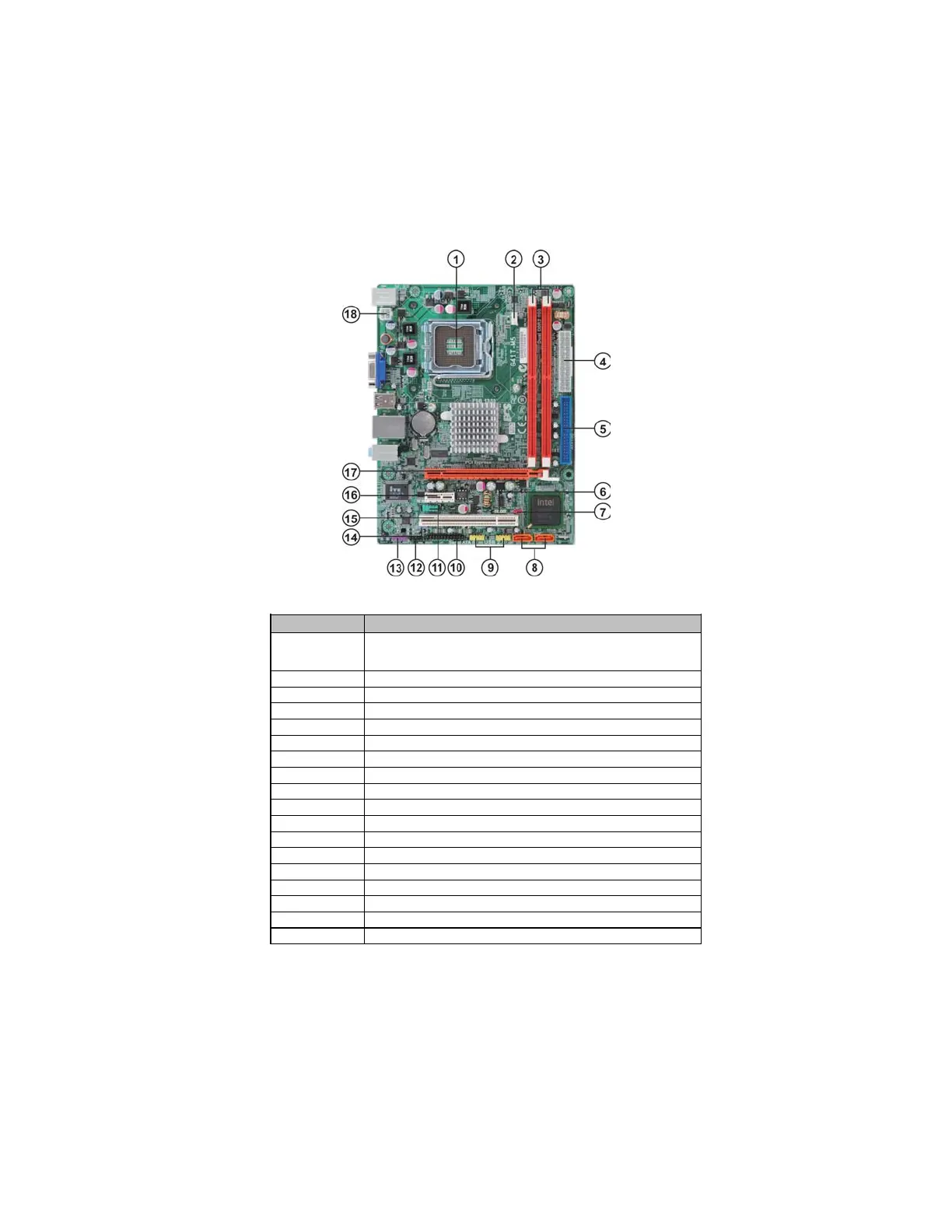

Motherboard Components
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
LGA775 socket for Intel
®
Core
TM
2 Duo
Pentium® Dual-Core
Celeron
®
Dual-Core/Celeron® 400 series processors
2. CPU_FAN CPU cooling fan connector
3. DDR2_1~2 240-pin DDR2 SDRAM slots
4. ATX_POWER Standard 24-pin ATX power connector
5. IDE Primary IDE channel
6. SPK Speaker header
7. CLR_CMOS Clear CMOS jumper
8. SATA1~2 Serial ATA connectors
9. F_USB1~2 Front panel USB headers
10. LPT Onboard parallel port header
11. COM Onboard serial port header
12. F_PANEL Front panel switch/LED header
13. F_AUDIO Front panel audio header
14. SPDIFO SPDIF out header
15. PCI 32-bit add-on card slot
16. PCIEX1 PCI Express x1 slots
17. PCIEX16 PCI Express x16 graphics card slot
18. ATX12V 4-pin +12V power connector
1. CPU Socket
