H110M4-C43(C33)/B150M4-C43 USER MANUAL
8

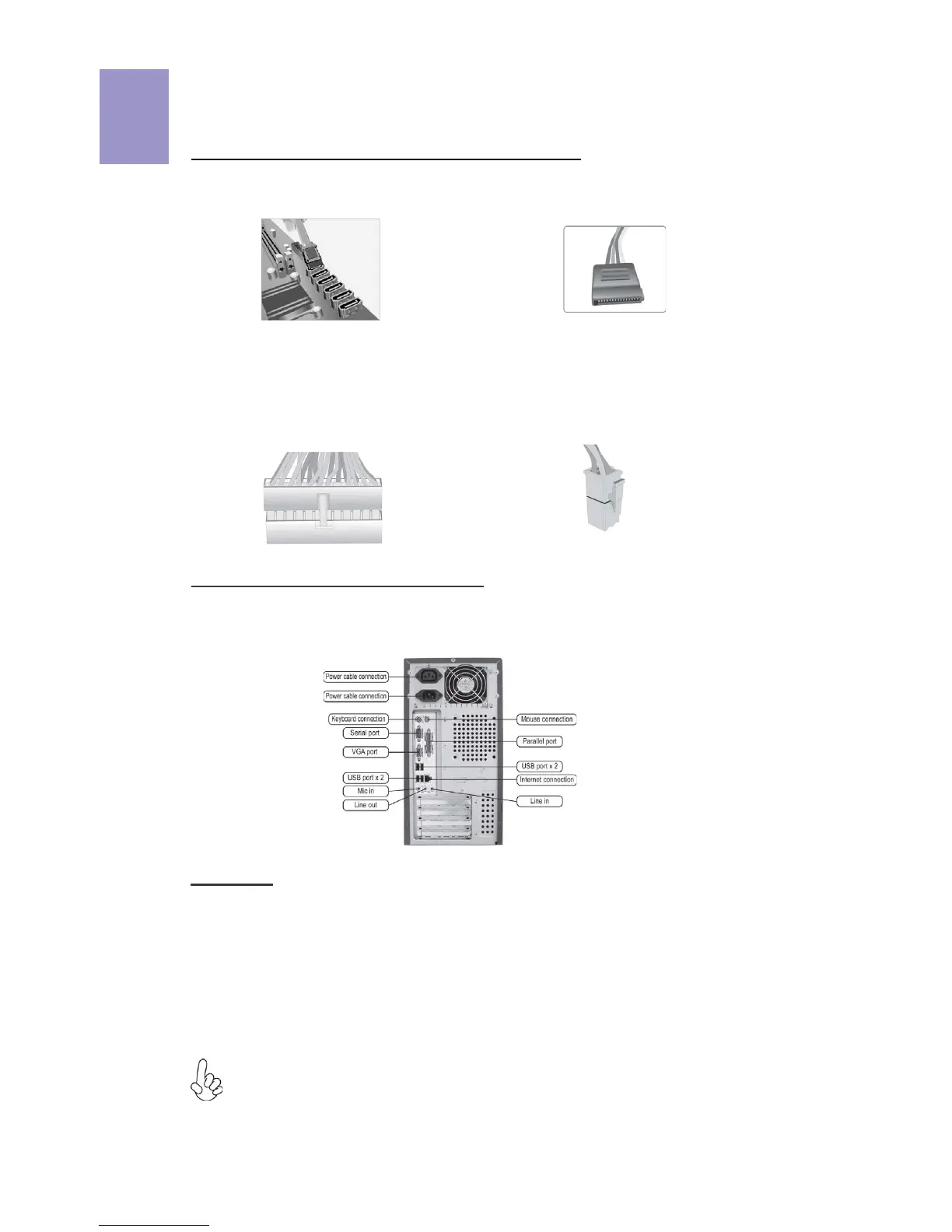

I/O Ports
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect the PS/2 Mouse.
2. PS/2 Keyboard (purple)
Use the upper PS/2 port to connect the PS/2 Keyboard.
3. COM1 Port
Use the COM1 port to connect the serial port.
4. HDMI Port
You can connect the display device to the DVI port or the HDMI port.
5. VGA Port
Connect your monitor to the VGA port.
6. DVI-D Port
Connect the DVI-D port to the monitor.
7. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
8. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
9. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
10. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
11. Line-out (lime)
It is used to connect to speakers or headphones.
12. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
