ECS H61H2-I3

Chapter 2
20
H61H2-I3 USER MANUAL

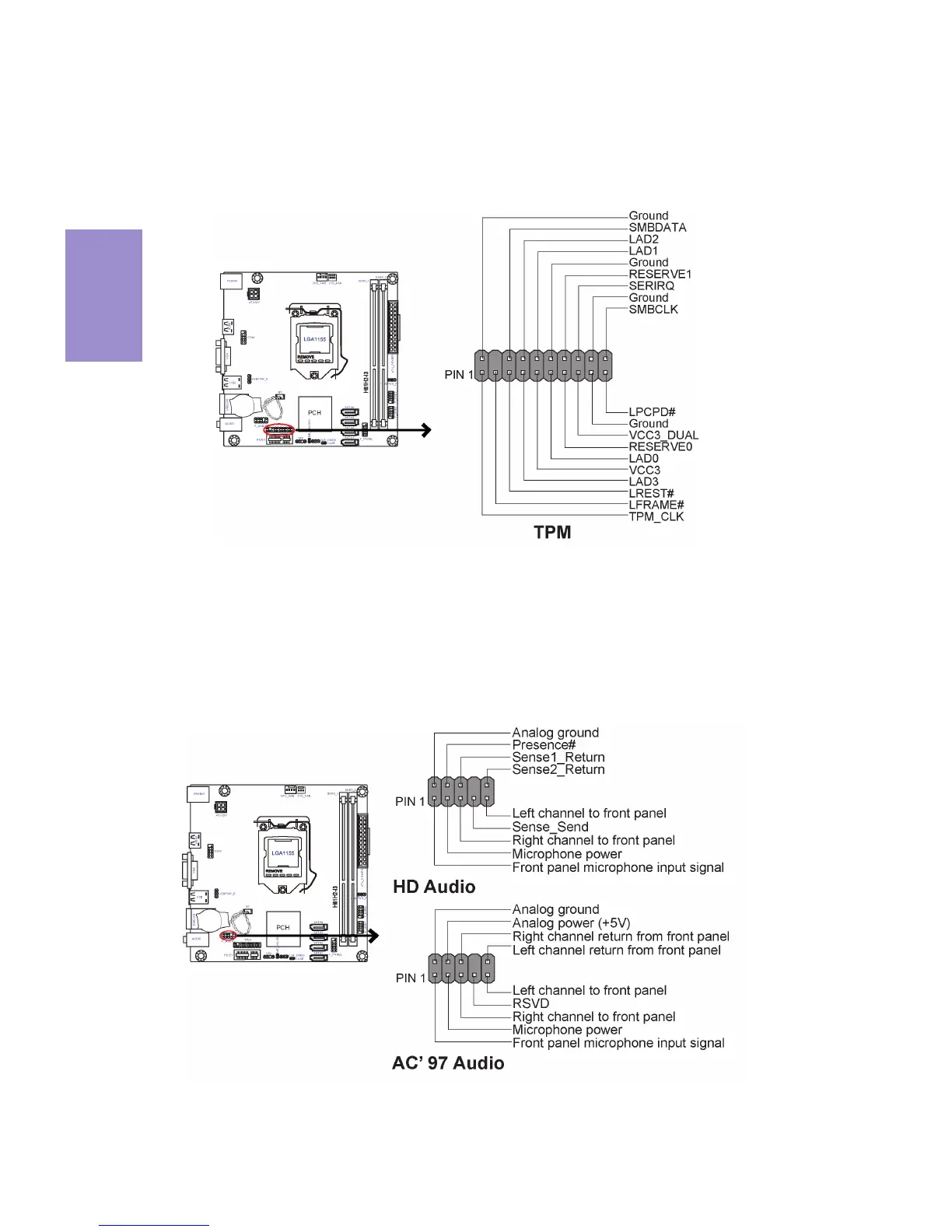

The front panel audio header allows the user to install auxiliary front-oriented mi-
crophone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC’ 97 front panel audio to HD onboard headers,
please set as below picture.
6. F_AUDIO: Front Panel Audio Header
Trusted platform module (TPM) is a published specification detailing a micro con-
troller that can store secured information, and implementations of that specifica-
tion.
5. TPM: Trusted Platform Module header
