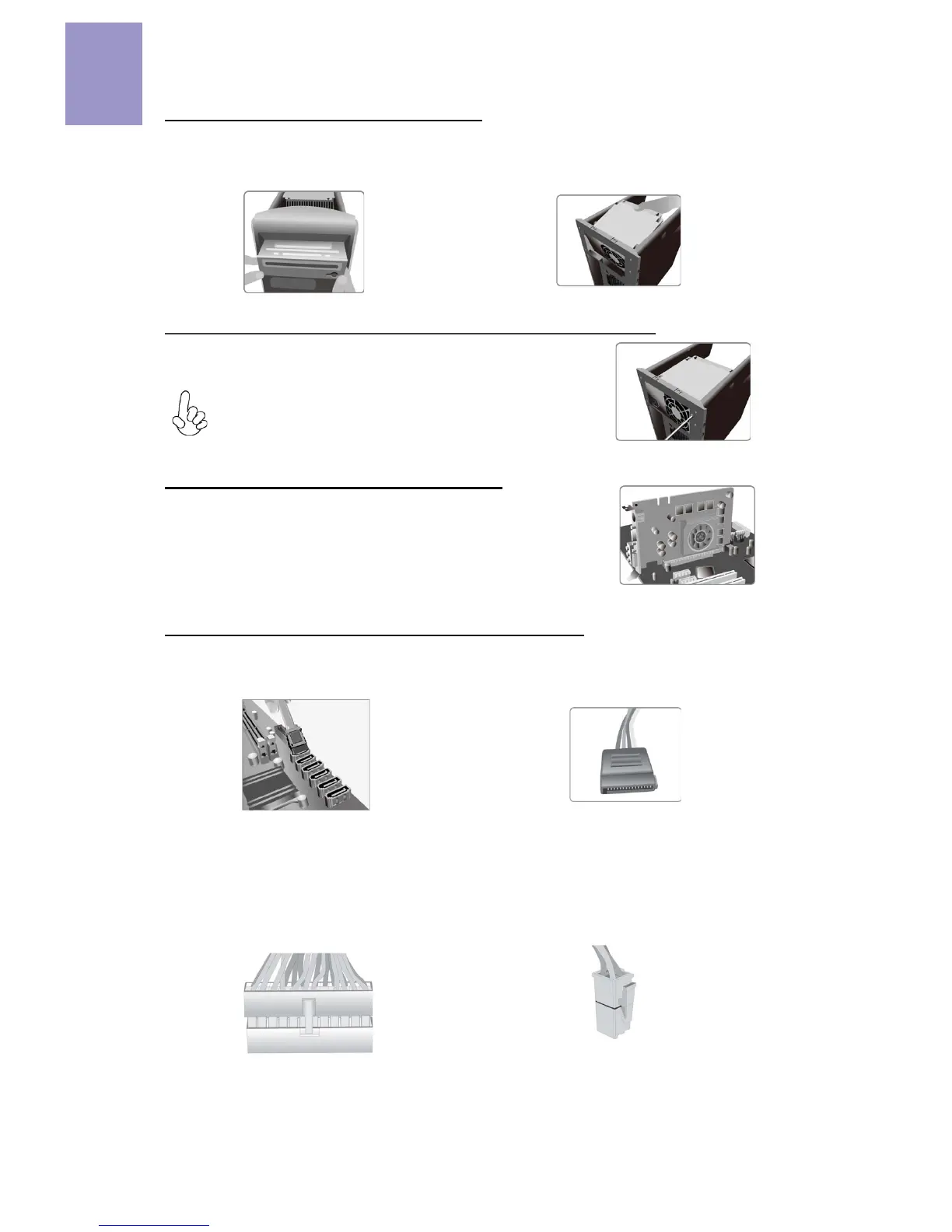

Step4. Installation of storage devices:
Step5. Case Preparation and Installation of Power Supply:
It is recommended to use a power supply delivering
more than 300W of power. Insufficient power supply
may cause unstable boot-up.
Step6. Installation of an Expansion card:
Step7. Connecting Cables and Power Connectors:
Remove the metal located on the slot and then insert the
expansion card into the slot. Press the card firmly to make
sure it is fully inserted into its slot. And then return the
screw back to its position.
4-1. Please remove the front cover and
5.25’’ plate from the case.
Remove both sides and the lid of the case, and then install
the power supply with screws.
c. Connect 24-pin power cable
The ATX_12V 4-Pin power connector is used
to provide power to the CPU. When installing
4-pin power cable, the latch of power cable
matches the ATX_12V connector perfectly.
b. Connect SATA power connector to the
SATA device
a. Connect the SATA hard drive to its
SATA cable
4-2. Place the storage devices (IDE/
SATA/FDD) in its position within the case
and secure the device with screws.
d. Connect 4-pin power cable
Please note that when installing 24-pin
power cable, the latches of power cable
and the ATX connector match perfectly.
To Next Page
