ECS KM400-M2 - Checking Jumper Settings; Jumper Settings

9
Installing the Motherboard
Checking Jumper Settings

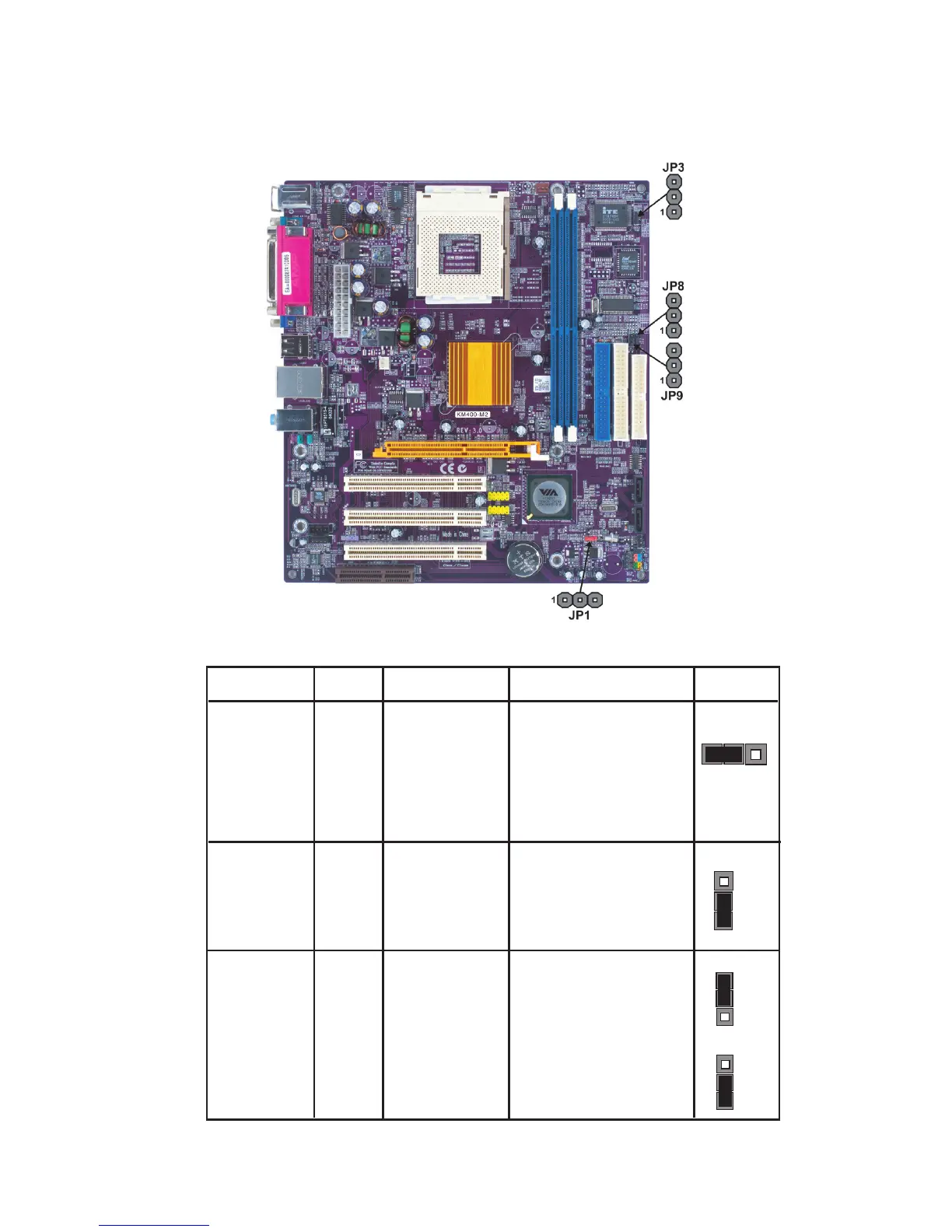

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
Type
Description Setting (default)
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
1-2: ENABLE
2-3: DISABLE
Before clearing the
CMOS, make sure to
turn the system off.
3-pin BIOS FLASH
CPU Frequency CPU FREQ JP8 JP9
100 MHz 1-2 1-2
133 MHz 2-3 1-2
166 MHz 2-3 2-3
200 MHz 1-2 2-3
3-pin
JP1
JP3
JP8/JP9
JP8
1
1
JP3
JP9
1
JP1
1
