Installing the Motherboard
Connecting Case Components

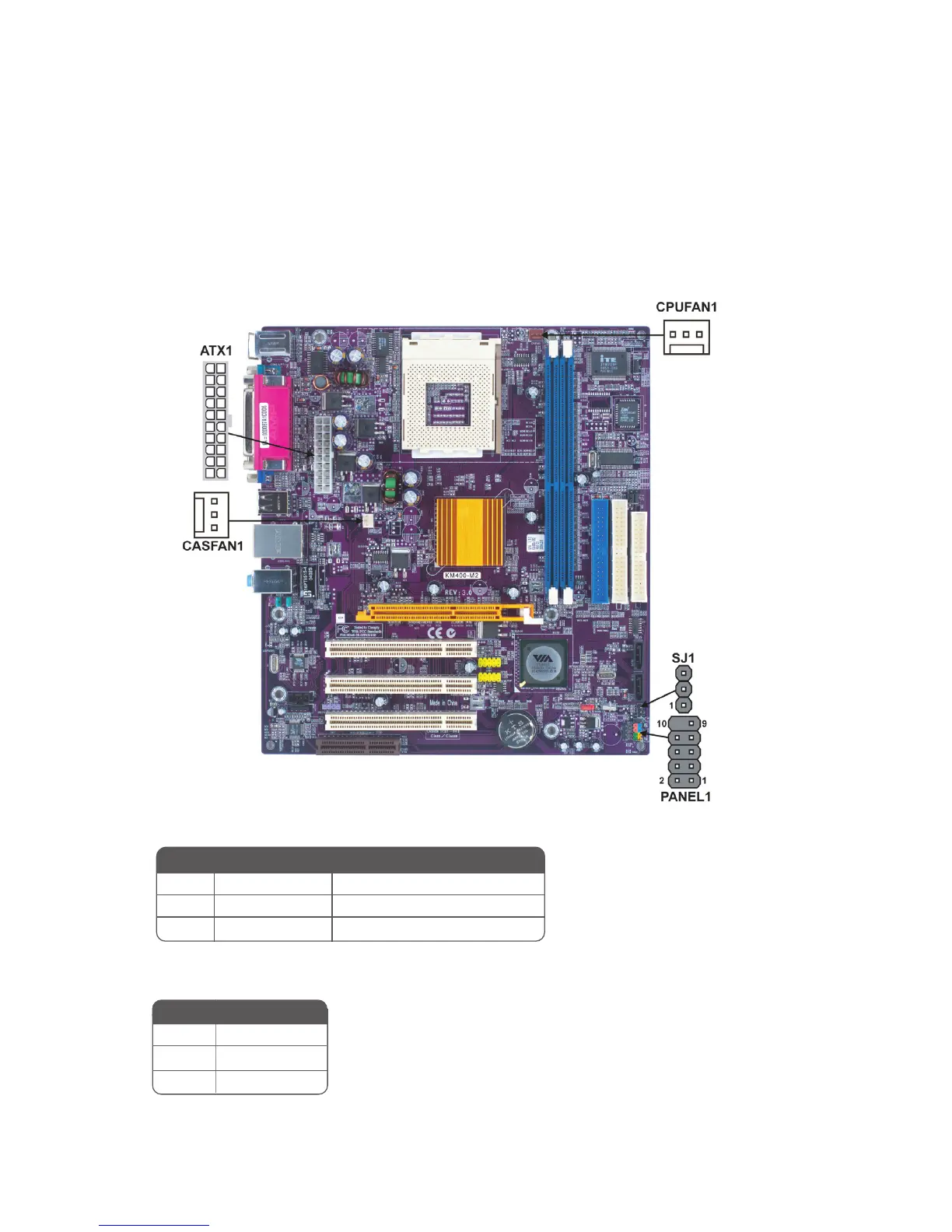

After you have installed the motherboard into a case, you can begin con-
necting the motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPUFAN1.
2 Connect the case cooling fan connector to CASFAN1.
3 Connect the case switches and indicator LEDs to the PANEL1.
If there are 3 pins in the case LED cable, connect to SJ1.
4 Connect the standard power supply connector to ATX1.
CPUFAN1/CASFAN1: FAN Power Connectors
1 GND System Ground
2 +12V Power +12V
3 Sense Sensor
Pin Signal Name
SJ1: Single-color LED header
1 ACPI LED
2 ACPI LED
3 5VSB
Pin Signal Name
Pin Signal Name Function
Pin Signal Name
