11
Chapter 2: Motherboard Installation

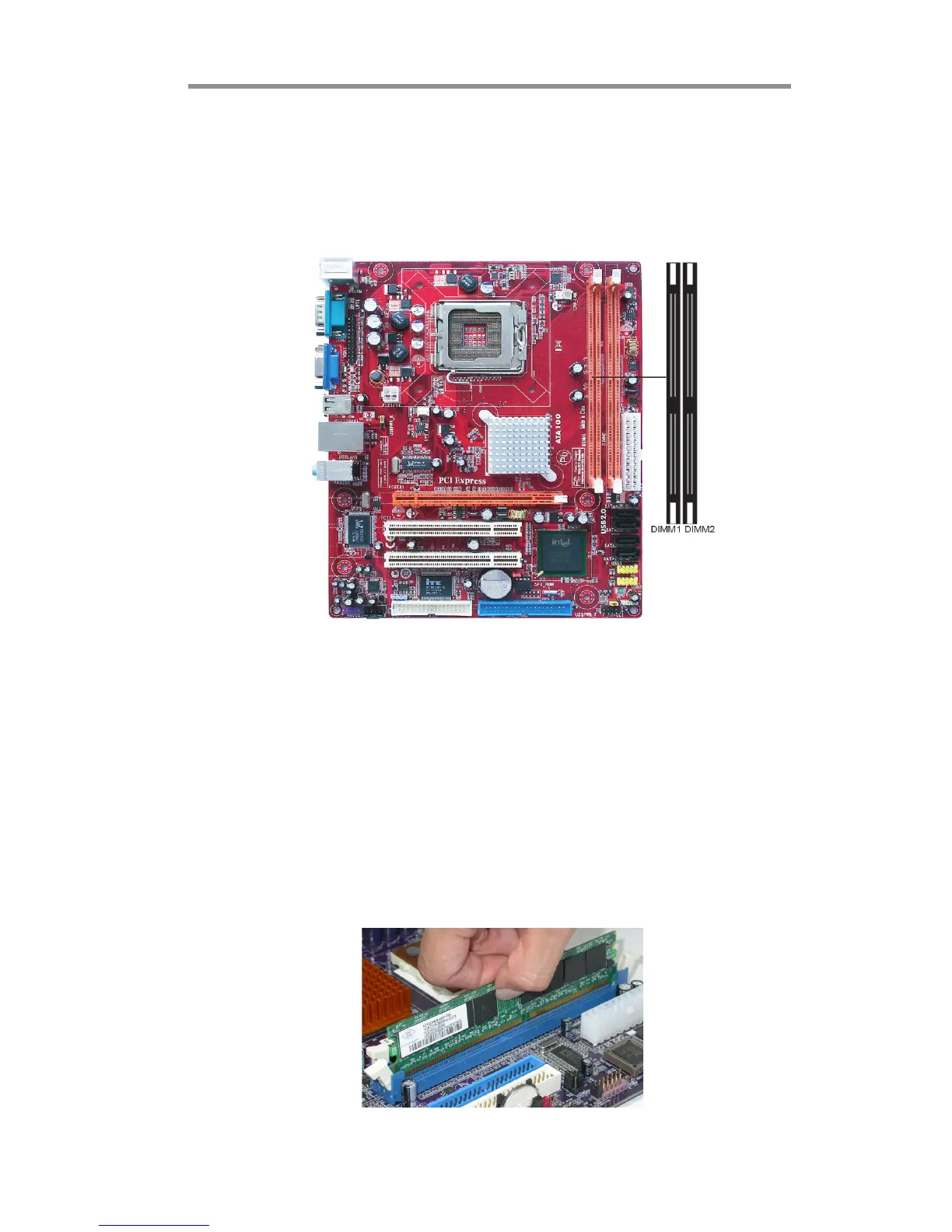

Memory Module Installation Procedure
These modules can be installed with up to 2 GB system memory. Refer to the
following to install the memory module.
1. Push down the latches on both sides of the DIMM socket.
2. Align the memory module with the socket. There is a notch on the
DIMM socket that you can install the DIMM module in the correct
direction. Match the cutout on the DIMM module with the notch on
the DIMM socket.
3. Install the DIMM module into the socket and press it firmly down
until it is seated correctly. The socket latches are levered upwards
and latch on to the edges of the DIMM.
4. Install any remaining DIMM modules.
Over its predecessor DDR SDRAM, DDR2 SDRAM offers greater bandwidth and
density in a smaller package along with a reduction in power consumption. In
addition, DDR2 SDRAM offers new features and functions that enable a higher
clock rate and data rate operations of 400 MHz, 533 MHz and 667 MHz. DDR2
transfers 64 bits of data twice every clock cycle.
