Chapter 2: Motherboard Installation

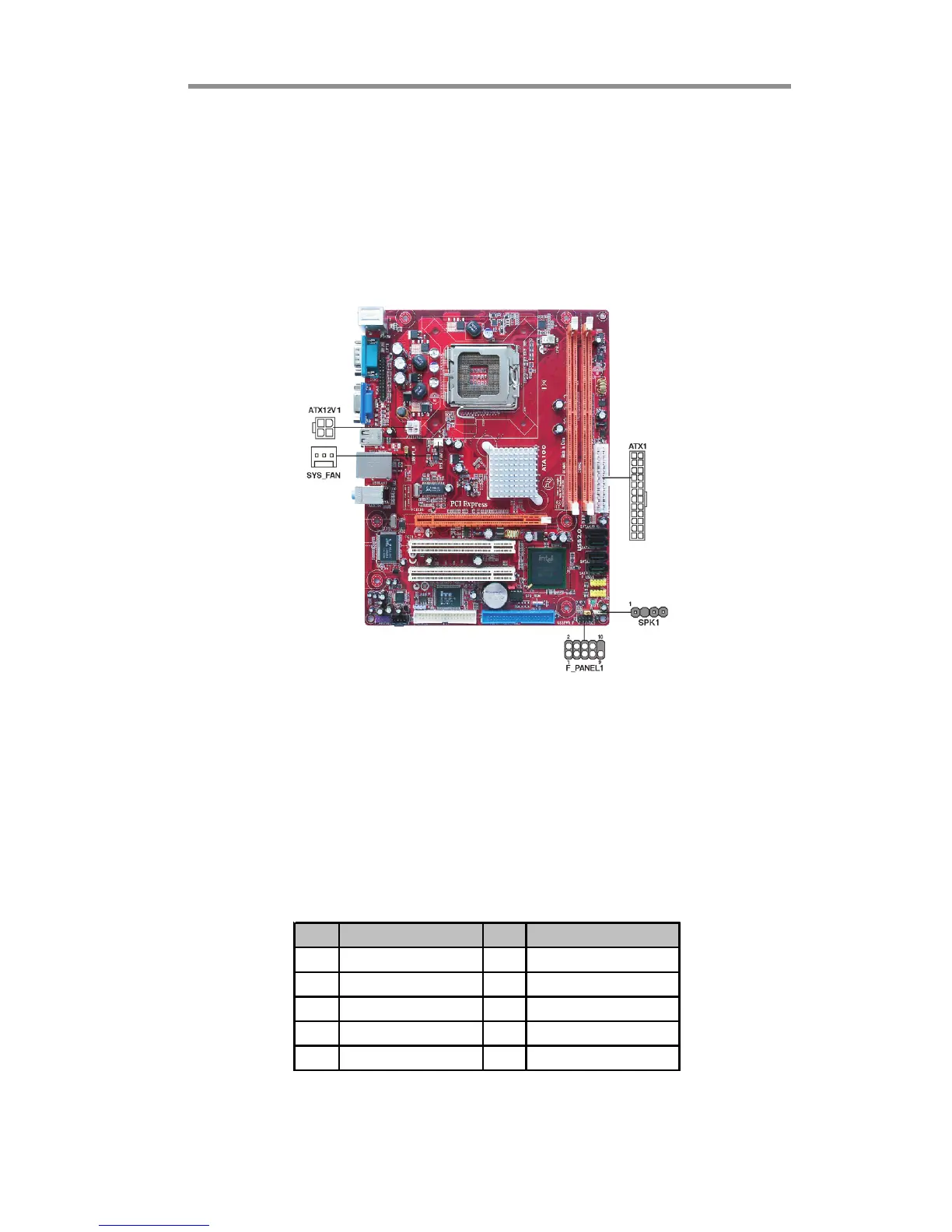

Connect the power connector from the power supply to the ATX1 connector on
the motherboard. The ATX12V1 is a +12V connector for CPU Vcore power.
Connect the auxiliary case power connector to the ATX12V1 connector.
Connect the system cooling fan connector to SYS_FAN.
Connect the case speaker cable to SPK1.
Connect the case switches and indicator LEDs to the F_PANEL1 header. Please
refer to the following list of the F_PANEL1 pin assignments.
Install the Motherboard
Install the motherboard in a system chassis (case). The board is a Micro ATX size
motherboard. You can install this motherboard in a Micro ATX case. Make sure
your case has an I/O cover plate matching the ports on this motherboard.
Install the motherboard in a case. Follow the case manufacturer’s instructions to
use the hardware and internal mounting points on the chassis.
Pin Signal Pin Signal
1 HD_LED_P(+) 2 FP PWR/SLP( +)
3 HD_LED_N( - ) 4 FP PWR/SLP( - )
5 RESET_ SW_N( - ) 6 POWER_ SW_P( +)
7 RESET_ SW_P( + ) 8 POWER_ SW_ N( - )
9RSVD 10KEY
