Motherboard User’s Guide
1. Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually config-
ure the card before installation.
2. FSB1333-CPU will operate in overclocking mode. Under this situation,
PCIE frequency will also be overclocked from 100MHz to 125MHz.
Note:
Expansion Slots

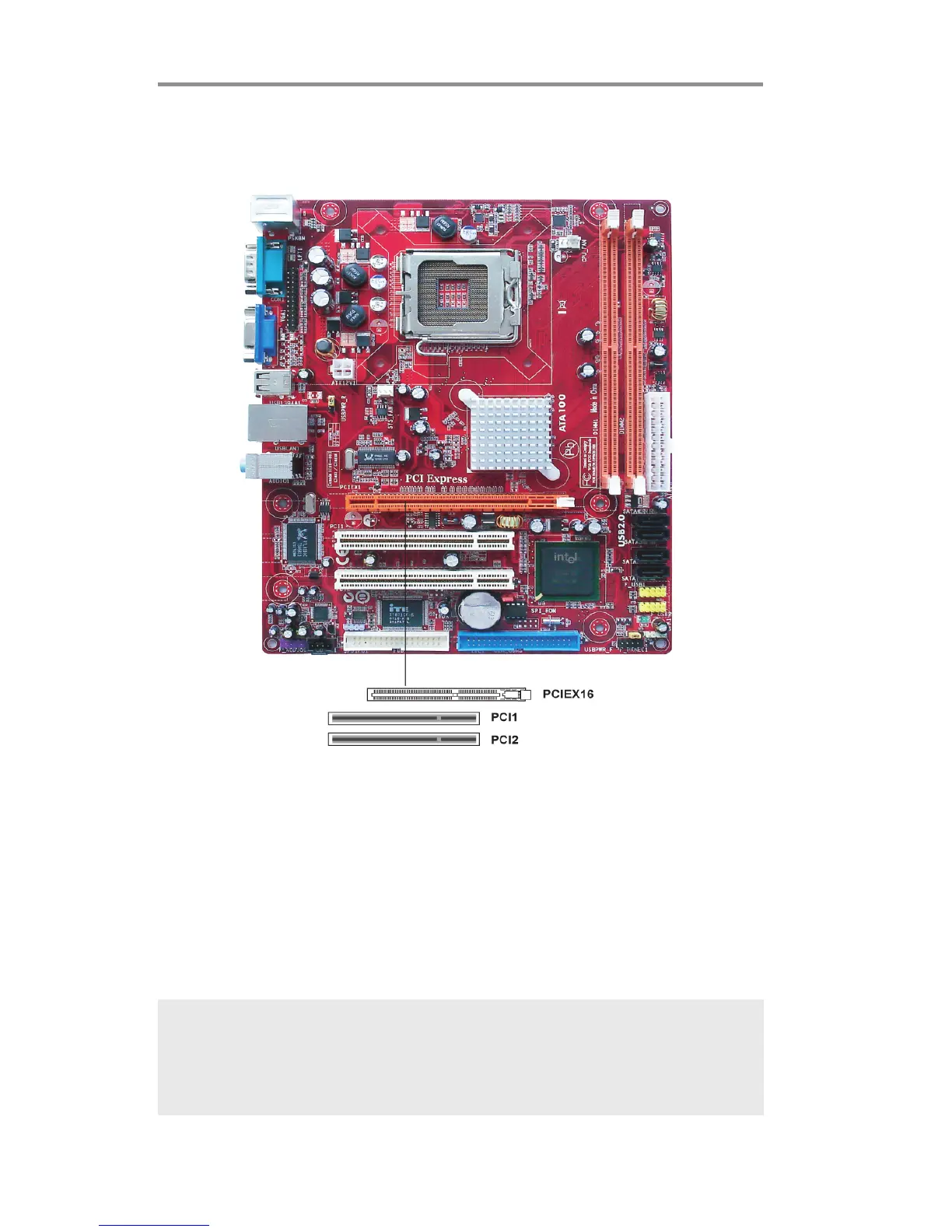

This motherboard has one PCIEX16 slot and two 32-bit PCI slots.
This motherboard is equipped with two standard PCI slots. PCI
stands for Peripheral Component Interconnect and is a bus standard
for expansion cards, which for the most part, is a supplement of the
older ISA bus standard. The PCI slots on this board are PCI v2.3
compliant.
PCI 1~2
Slots
PCIEX16
Slot
The PCIEX16 is used to install an external PCI Express graphics card
that is fully compliant to the PCI Express Base Specification revision
1.0a.
