Chapter 2
18
Q87H3-M6 USER MANUAL
SA
T
A3_1~5 connectors ar
e used to support the Serial A
T
A 6.0Gb/s device, simpler
disk driv
e cabling and easier PC assembly
. It eliminates limita
tions of the current
Par
allel A
T
A interface. But main
tains regis
ter compatibility and softwar
e compat-
ibility with P
arallel A
T
A.

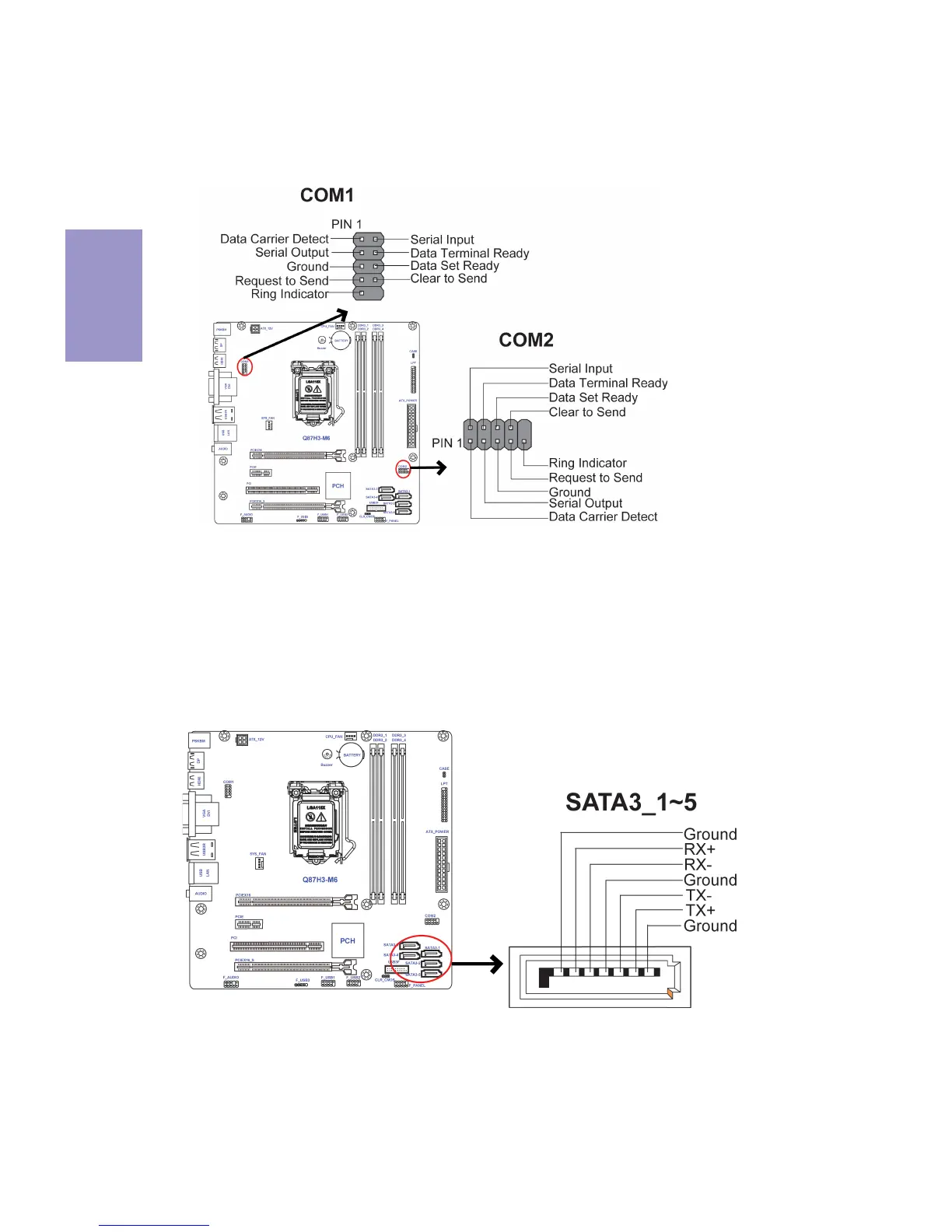

4. SA
T
A3_1~5: Serial A
T
A connectors
3. COM: Onboard serial port header
Connect a serial port extension bracket to this header to add a serial port to your
system.
21
23
Table of Contents
Default Chapter
2
About the Manual
2
Canadian Department of Communications
2
Declaration of Conformity
2
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Package Contents
5
Specifications
6
Motherboard Components
8
I/O Ports
10
Chapter 2 Installing the Motherboard
11
Safety Precautions
11
Installing the Motherboard in a Chassis
11
Checking Jumper Settings
12
Installing Hardware
13
Installing the Processor
13
Installing the CPU Cooler
15
Installing Memory Modules
16
Installing Add-On Cards
18
Connecting Optional Devices
20
Installing a SATA Hard Drive
26
Connecting Case Components
27
Front Panel Header
29
Hard Drive Activity LED
29
Power/Sleep/Message Waiting LED
29
Chapter 3 Using BIOS
31
About the Setup Utility
31
The Standard Configuration
31
Entering the Setup Utility
31
BIOS Navigation Keys
33
Main Menu
34
Advanced Menu
35
Advanced Chipset Configuration
37
Pci Express Configuration
39
Integrated Peripherals
40
Pc Health Status
42
Power Menu
43
Authentication Menu
45
Security Menu
46
Boot Options Menu
48
Exit Menu
49
Updating the BIOS
50
Chapter 4 Intel Matrix Storage Manager RAID Configuration
51
Before Creating a RAID Set
51
Entering Intel ® Matrix Storage Manager RAID BIOS Utility
52
Creating a RAID Set
53
Deleting a RAID Set
55
Reseting Disks to Non-RAID
56
Exiting Setup
56
Chapter 5 Trouble Shooting
57
Start up Problems During Assembly
57
Start up Problems after Prolong Use
58
Maintenance and Care Tips
58
Basic Troubleshooting Flowchart
59
