ECS Z77H2-A3 User Manual

Chapter 3
Z77H2-A3 USER MANUAL
33

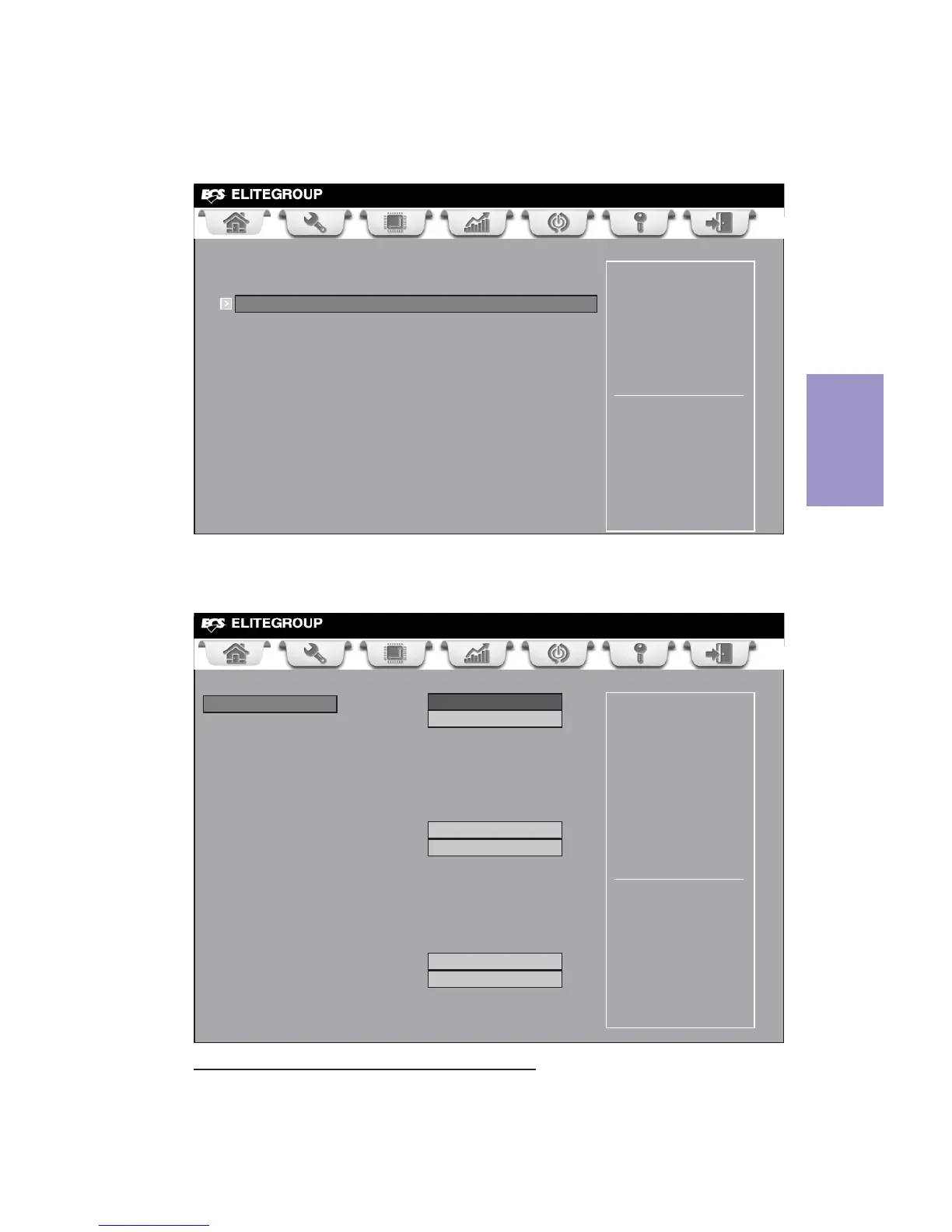

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
fSmart Fan Function
Main Advanced Chipset M.I.B III Boot Security Save & Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
System Temperature : 30
0
C
CPU Fan Speed : 1890 RPM
System Fan Speed : 0 RPM
PWR Fan Speed : 0 RPM
CPU Voltage : 1.116V
AXG Voltage : 2.220V
IMC Voltage : 1.044V
DIMM Voltage : 1.596V
PCH Voltage : 1.056V
+5V : 5.014V
+12V : 12.000V
-=- PECI Mode -=-
Offset to TCC Activation Temp. : -55
Smart Fan Function
PC Health Status
CPU/System/Power Smart Fan Control (Enabled)
This item enables you to define the CPU/system/Power by smartly adjusting the
CPU/system/Power Fan. When it is set at certain temperature, the CPU/system/
Power Fan PWM value will change accordingly.
mn
Main Advanced Chipset M.I.B III Boot Security Save & Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Smart Fan Control Enabled
Smart Fan Mode
Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
Delta T 3
Smart Fan Slope PWM value 10 PWM value/unit
CPU Fan Full Speed Offset (-) 23
System Smart Fan Control
Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
Delta T 3
SMART Fan Slope PWM value 10 PWM value/unit
CPU Fan Full Speed Offset (-) 23
Power Smart Fan Control
Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
Delta T 3
