Z77H2-A3 USER MANUAL
Chapter 4
eOC

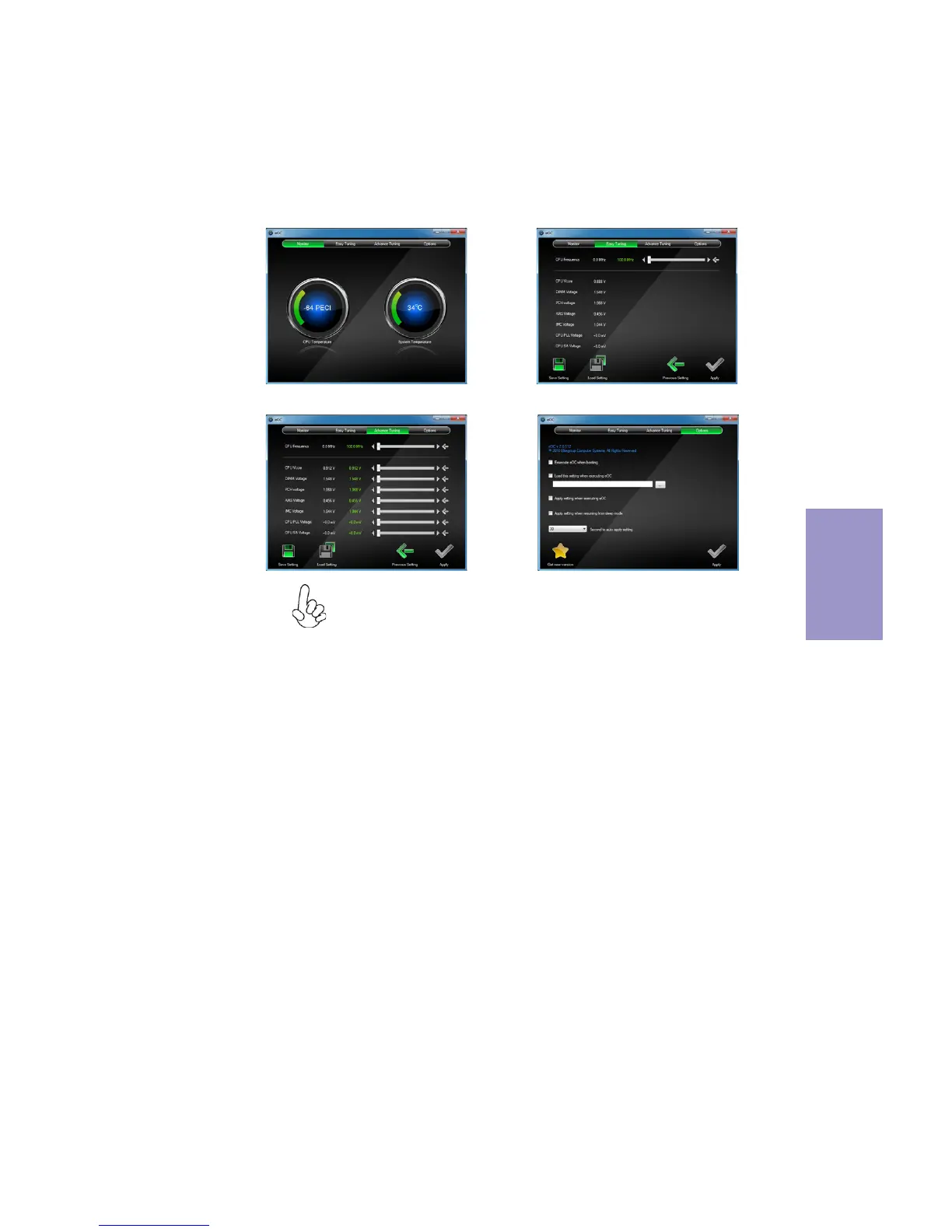

ECS eOC Utility is a simple over-clocking tool that provides user-friendly windows
operation interface for novices and over-clockers. Combining with ECS MIB III tech-
nology
, eOC challenges the undiscove
red over-clocking capabilit
y than ever bef
ore.
Monitor
E
as
y T
uning
Advance T
uning
Options
Microsoft .NET Framework 3.5 is required.
