ECS Z97M-PK User Manual

Chapter 2
27
Z97M-PK USER MANUAL

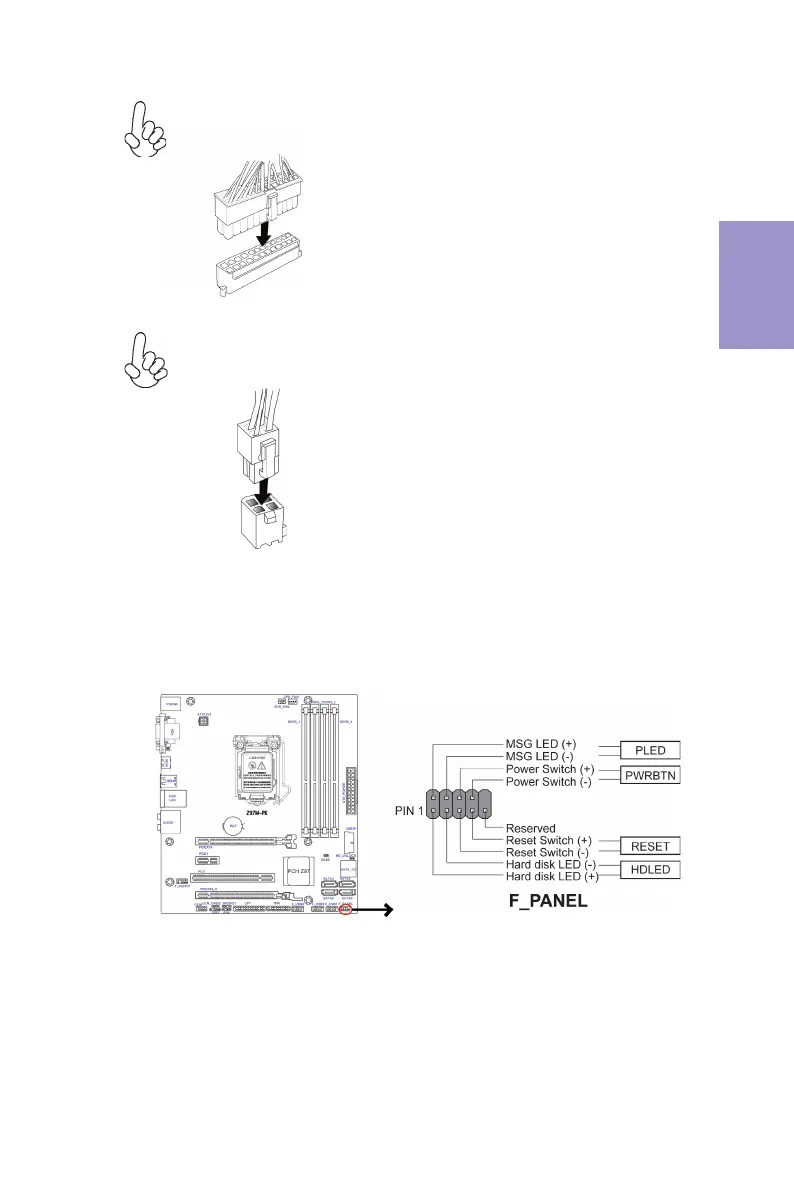

4. F_PANEL: Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX match perfectly.
Connecting 24-pin power cable
24-pin power cable
The ATX12V1 4-Pin power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V1
match perfectly.
Connecting 4-pin power cable
4-pin power cable
