ECS Z97M-PK User Manual

Chapter 3
Z97M-PK USER MANUAL
52
This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.

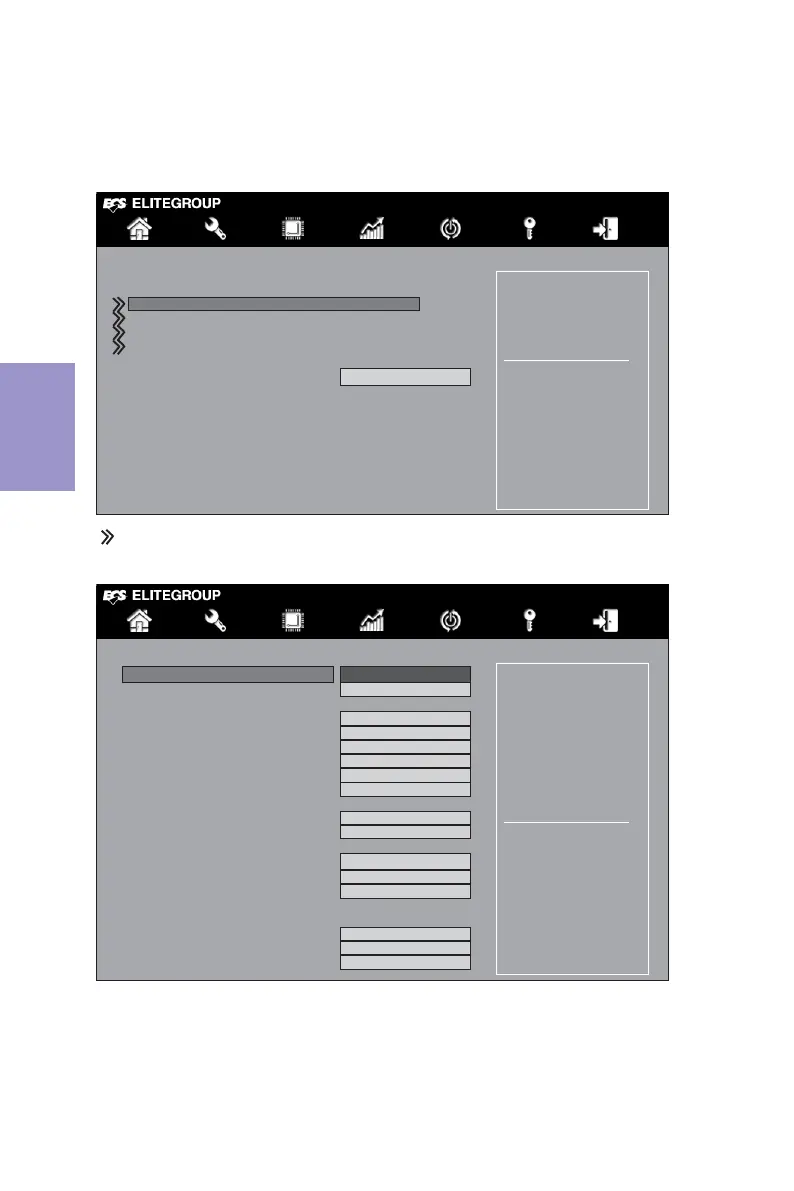

M.I.B. III (MB Intelligent BIOS III) Menu
 CPU Configuration
Scroll to this item to view the following screen:
+/- : Change Opt.
Enter/Dbl Click : Select

: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit
F4: Save & Exit

Main Advanced Chipset M.I.B. III Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU OverClocking
Configuration
M.I.B. III (MB Intelligent BIOS III)
CPU OverClocking Configuration
Memory Configuration
North Bridge Configuration
Over Voltage Configuration
Spread Spectrum Auto
Intel(R) Core(TM) i7-4765T CPU @ 2.00GHz
Processor Speed 2000 MHz
Memory Frequency 1333 MHz
Total Memory 4096MB (DDR3 )
Main Advanced Chipset M.I.B. III Security Boot Exit
Non Turbo Ratio Override
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Ratio (32)
This item allows users to control non turbo CPU ratio.
Package Current Lock (Disabled)
This item allows you to enable or disable the package current lock.
CPU Ratio 32
Package Current Lock Disabled
IA Core Current Maximum
Enhanced Intel SpeedStep Technology Enabled
Turbo Mode Enabled
Runtime Turbo Enable Disabled
Internal PLL Overvoltage Disabled
Boot performance Mode Max Non-Turbo Perfor...
Package TDP Lock Enable Disabled
Long Duration Power Limit Override Maximum
Power Limit 1 Time(Second) 8
Power Limit 2 Switch Enabled
Short Duration Power Limit Override Maximum
1 Core Ratio Limit 32
2 Core Ratio Limit 32
Disable OverClocking Lock Enabled
ICC clock setting
Host Clock Override(1/100 MHz) 100.00
PEG/DMI Ratio 1.00
LCPLL or SBPLL select LCPLL
