SE-601 Series Electrocardiograph User Manual Printing ECG Reports
- 52 -
7.7 ECG Reports
7.7.1 ECG Reports in the Auto Mode
7.7.1.1 Examples of 6×2+1rhy
(a)
(b)

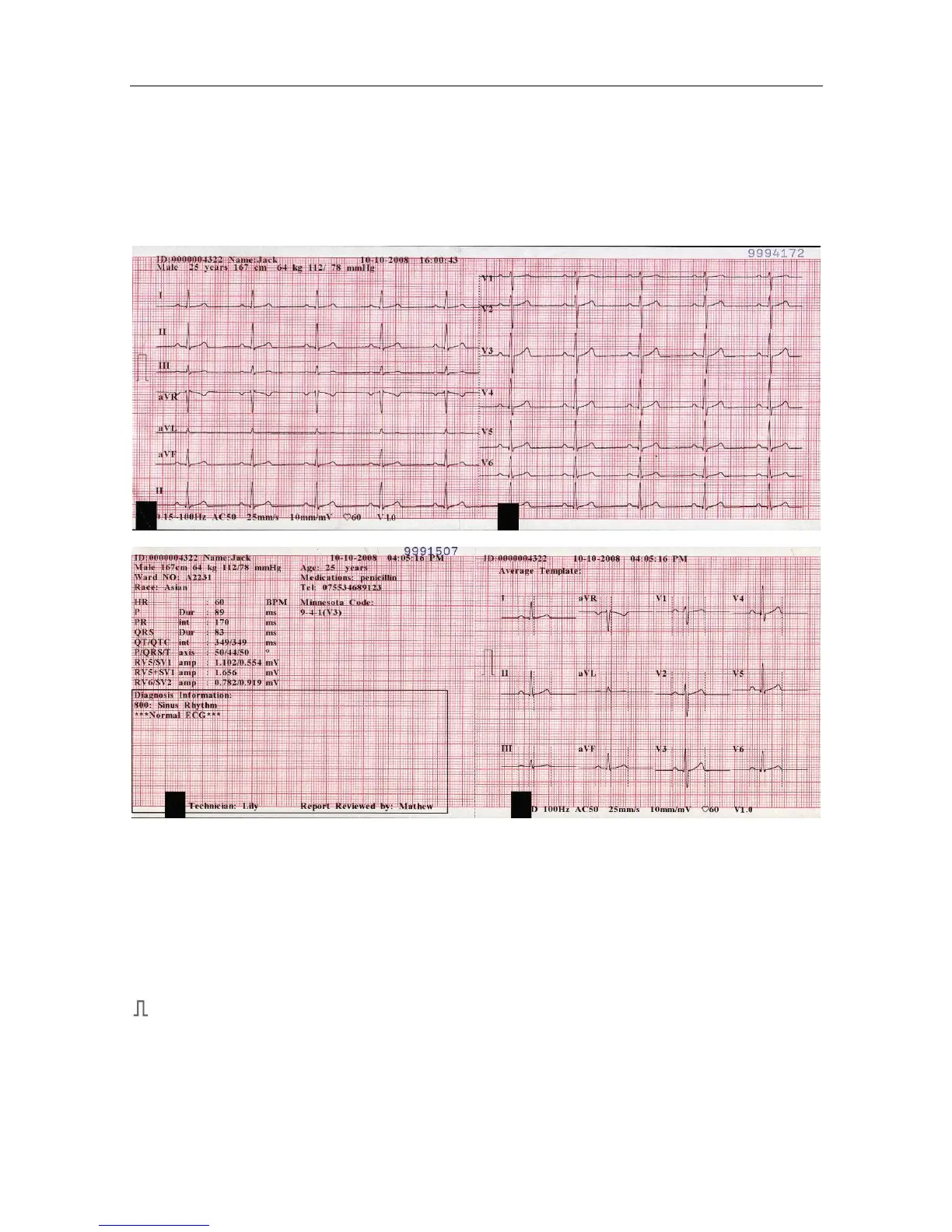

The above figures (a) and (b) show the ECG reports in the AUTO mode. Template is set to On,
and Auto Style is set to 6×2+1rhy.
Figure (a) shows:
ID: 0000004322 (Patient ID)
10-10-2008 16:00:43 (Current Date & Current Time)
Gender: Male, Age: 25 years, Height: 167cm, Weight: 64kg, BP: 112/78mmHg
(1mV calibration mark)
І, II, ІІІ, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 (12 standard Leads) and ECG waves
II on the bottom (Rhythm Lead) and rhythm wave
0.15~100Hz (0.15Hz DFT Filter, 100Hz Lowpass Filter)
AC50 (50Hz AC Filter)
To Next Page
