Operating Instructions
• FOR WET CUTTING: Attach the water supply. A ow rate of approximately 2 gallons per minute (minimum)
is required. Attach the water hose to the coolant valve. Use the valve to control the ow of water.
• FOR DRY CUTTING: Provide a respirator and dust control system.
• FOR GASOLINE MODELS: Put the engine stop switch in the “RUN” position. Consult the engine
manufacturers operating instructions and follow the directions for starting and breaking in the engine.
Before Starting Engine:
• BEFORE STARTING THE ENGINE OR MOTOR: Raise the saw blade clear of the working surface.
The blade is raised using the depth control handwheel knob mounted on the upper handle assembly
(Figure 2)
.
Lift the knob to unlock and turn the handwheel clockwise until the blade is clearly o the ground.
• START ENGINE AND ALLOW IT TO REACH OPERATING SPEED: Position the saw over the cutting line.
Bring the engine to full speed. Lower the blade into the slab surface by slowly turning the depth control handwheel
knob. Do not allow the arbor anges to contact slab surface.
When the selected cutting depth is reached, lock the depth control handwheel knob and proceed to push the
saw forward. The saw blade must remain straight, do not twist, and do not force blade, the engine or motor
should not strain when cutting.
Cutting to maximize depth should be achived in stepped increments of 1”.

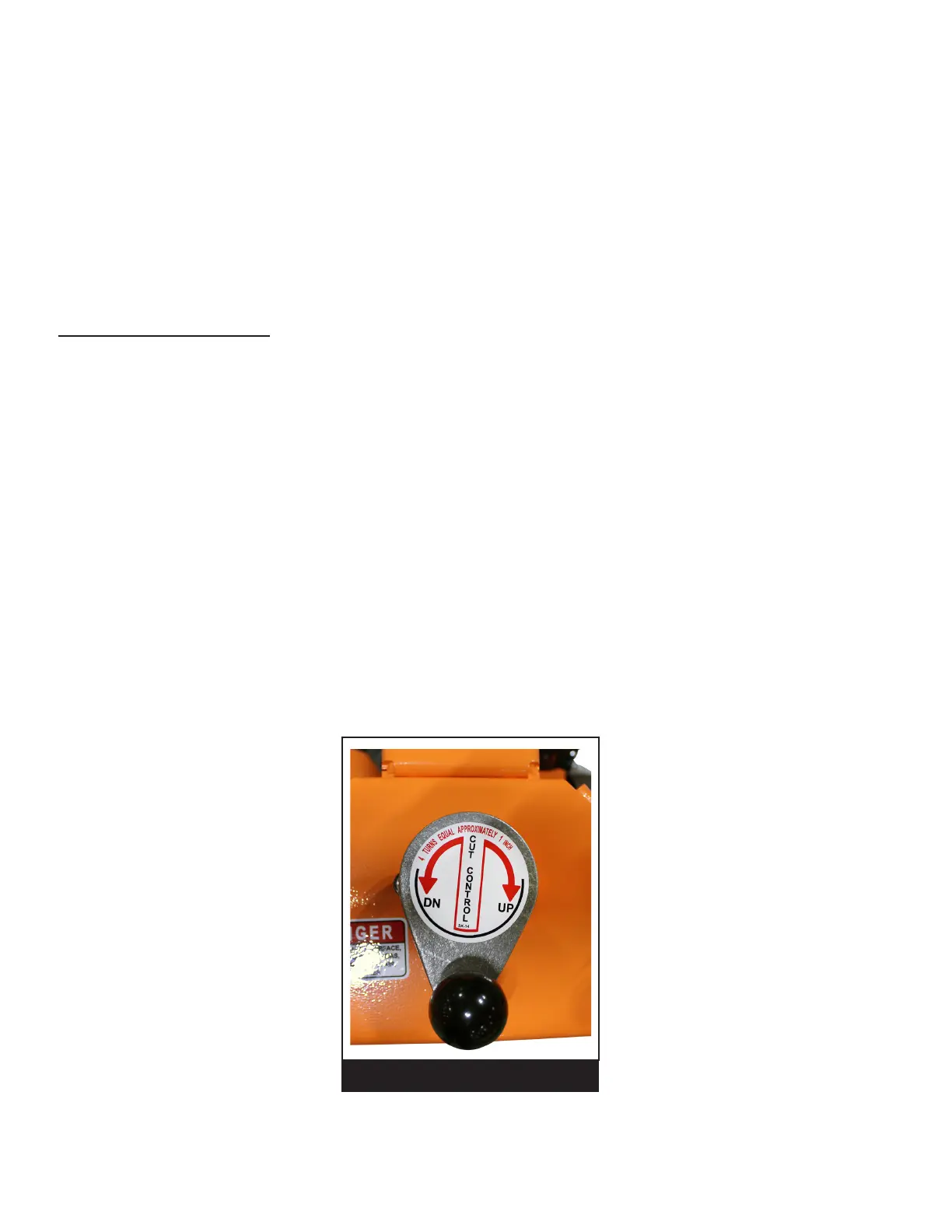

Figure 2
Depth Control Depth Control
Handwheel KnobHandwheel Knob
