Please fix the battery cables on the positive and negative terminals of the inverter tightly. Otherwise, there will be
large current which will result in severe heating problem and parts damaged.

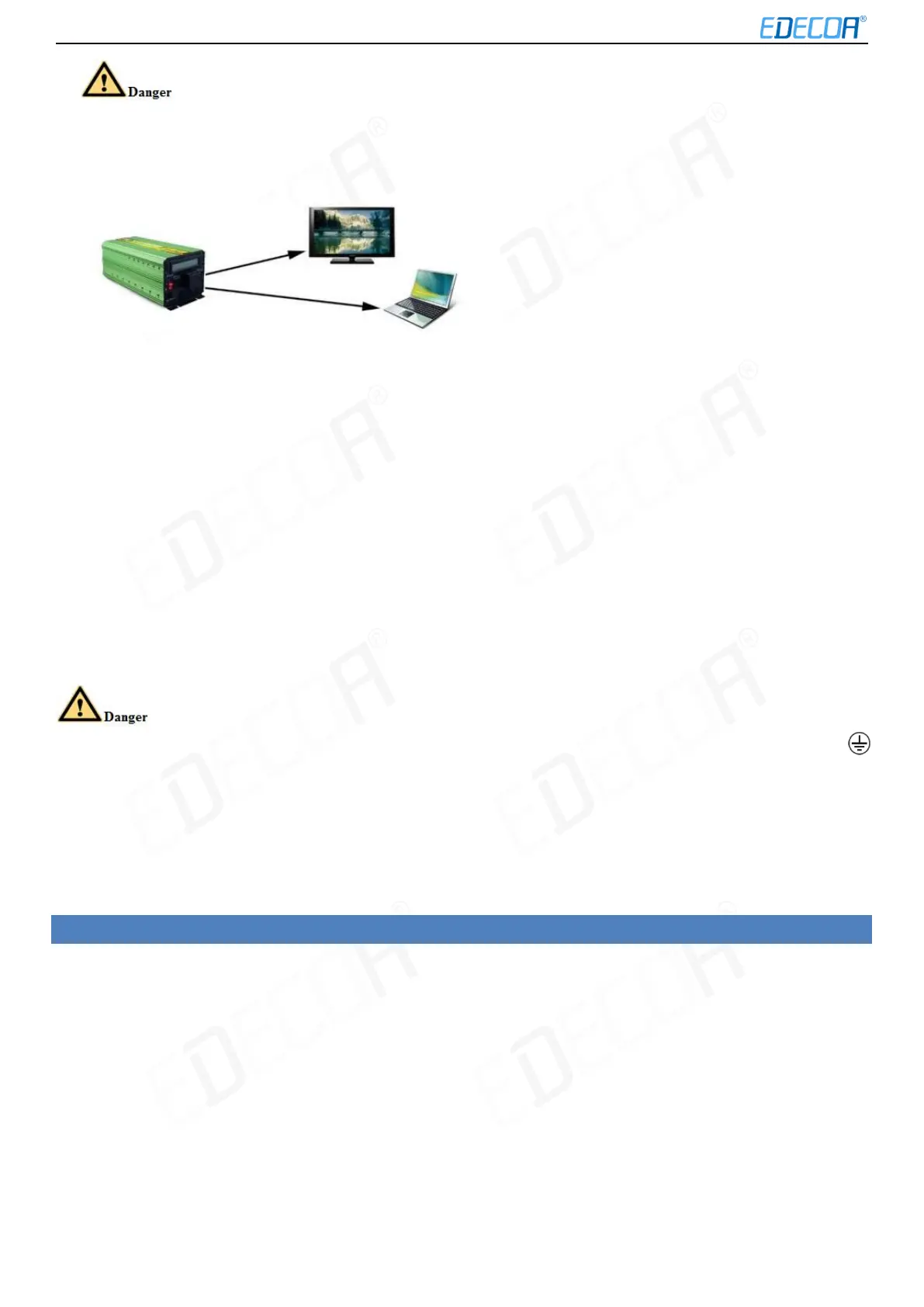

6.2 Load connection
Connect your device into power inverter AC outlet. (Make sure your device’s rated power is less than the inverter’s,
and the working voltage is 120V)
The connections between power source (battery) and inverter cable terminals must be securely mounted.
Set the switch to the "ON" position
Tips:
The battery must be able to deliver necessary amperage according to the power of the inverter and load. For example,
for a 24v inverter to drive 1000W resistive load, the battery should be able to provide more than 45 amps! (On a 12V
inverter it will be >90 amps!)
Please do not connect the AC output side to other power source (i.e. electric supply) as this is not a grid interactive
inverter.
The cover should be connected to protective ground before usage. Please switch off the inverter and only on as
necessary to avoid power consumption from the batteries without load when it is not being used.
Use the supplied cable from the manufacturer or at least those with the same or larger cross-section.
Keep these connections as short as possible, it will flow considerable current depending on power extraction!
The inverter should be installed in a dry and well-ventilated area. The air inlet may not be blocked, and it should be
kept 20cm away from the wall.
Do not install the inverter near flammable or explosive material. Please use dry cloth to clean the inverter. Do not
stack multiple inverters in operation above another so as the cooling is not guaranteed.
6.3 Grounding wire installation
The connection method of the ground wire is different based on the different using environment (vehicle,
boat, home, outdoors) . You could find where to connect the ground cable in the power inverter following that icon
“ ”
When using the power inverter in a vehicle, please connect the ground wire to the chassis of the vehicle.
When using the power inverter on a boat, please connect it to the boat's ground system.
When using the power inverter at home, please connect it to the home ground wire system. If there is no ground wire
system at home, please connect it to the negative terminal of the battery.
When using the power inverter outdoors, please connect it to the negative terminal of the battery. It will not affect
the normal working of the power inverter without connecting the ground wire.
7. ABOU T THE REMO TE CON TROLLE R
Tips: The switch of the remote control and the switch of the inverter is parallel.
Therefore, when any one controls the inverter, the other switch must keep the "OFF" state.
According to different models, we have two models of remote control (ED-RC, ET-RC). However, it is not possible to
replace each other.
