8. Connect Network Cables
For the RJ-45 Management port, connect 100-ohm Category
5, 5e or better twisted-pair cable.

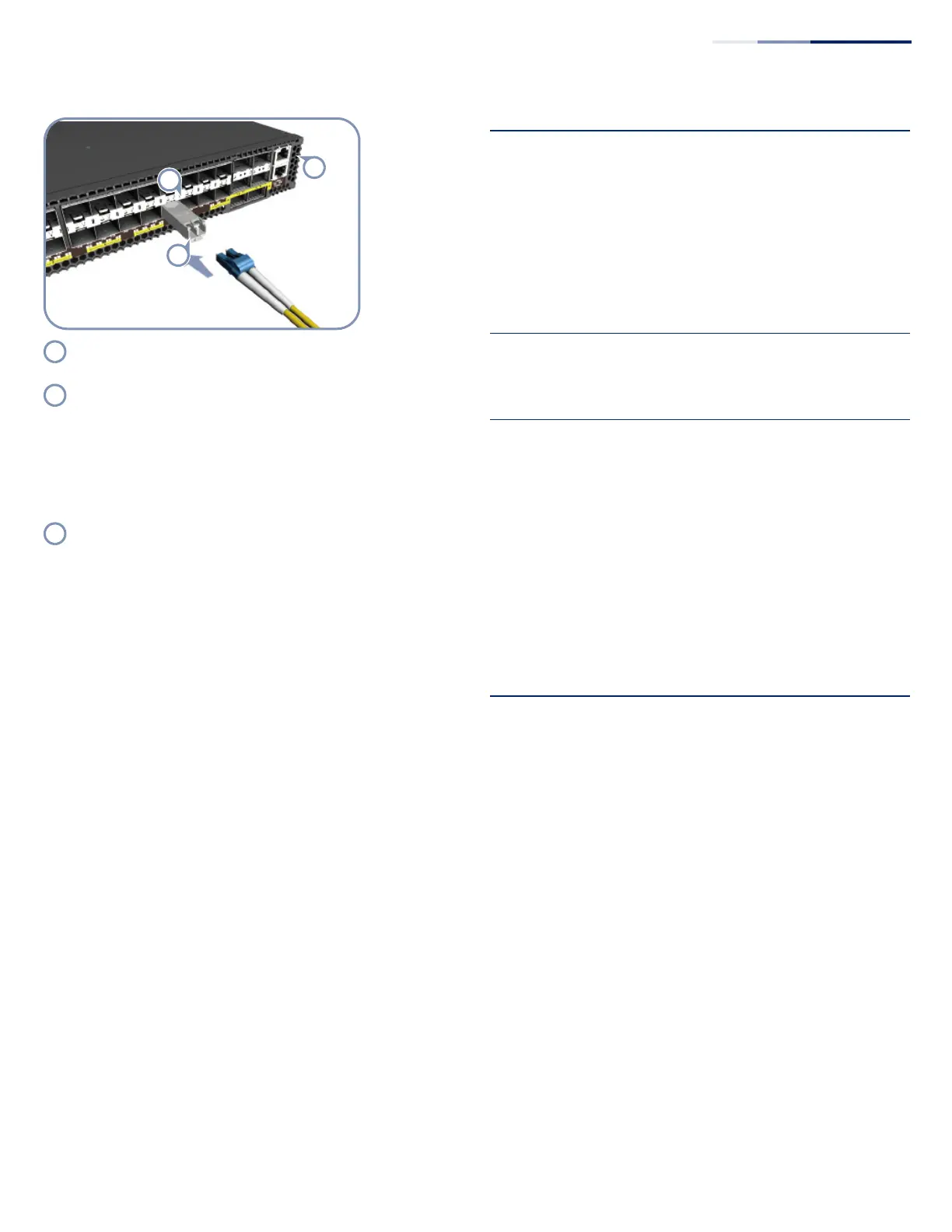

Connect DAC cables to the SFP+/QSFP28 slots. Or first install
SFP+/QSFP28 transceivers and then connect fiber optic
cabling to the transceiver ports.
The following transceivers are supported:
◆
100GBASE-CR4, AOC, SR4, LR4, and PSM4
◆
40GBASE-CR4, SR4, and LR4
◆
25GBASE-CR4 and AOC
◆
10GBASE-CR, SR, and LR
As connections are made, check the port status LEDs to be
sure the links are valid.
For the SFP+ ports:
◆
Green — 10 Gbps mode
◆
Amber — 1 Gbps mode
Each QSFP28 port has four LEDs that indicate valid links in
the following modes:
◆
1 LED Green — 100 Gbps mode
◆
1 LED Blue — 40 Gbps mode
◆
1-4 LEDs Amber — 25 Gbps breakout mode (four lanes)
◆
1-4 LEDs Purple — 10 Gbps breakout mode (four lanes)
Hardware Specifications
Switch Chassis
Size (WxDxH) 435 x 515 x 43.84 mm (17.12 x 20.27 x 1.72 inch)
Weight 9.72 kg (21.42 lb), with two installed PSUs
Temperature Operating: 0° C to 40° C (32° F to 104° F)
Storage: -40° C to 70° C (-40° F to 158° F)
Humidity Operating: 5% to 95% (non-condensing)
Power
Consumption
450 Watts maximum
System Input Power Rating
AC Input 100–240 VAC, 50-60 Hz, 6 A maximum
DC Input -36–-72 VDC, 28-14 A
Regulatory Compliances
Emissions EN 55032:2015+AC:2016, Class A
EN 61000-3-2:2014, Class A
EN 61000-3-3:2013
FCC Class A
VCCI Class A
CE Mark
BSMI Class A, CNS 13438
Immunity EN 55024:2010+A1:2015
IEC 61000-4-2/3/4/5/6/8/11
Safety UL (CSA 22.2 No 60950-1 & UL60950-1)
CB (IEC/EN60950-1)
BSMI Class A, CNS 14336-1
Taiwan RoHS CNS 15663
Quick Start Guide
– English 3 –
