Edge-Core AS6701-32X User Manual

Quick Start Guide
– 2 –

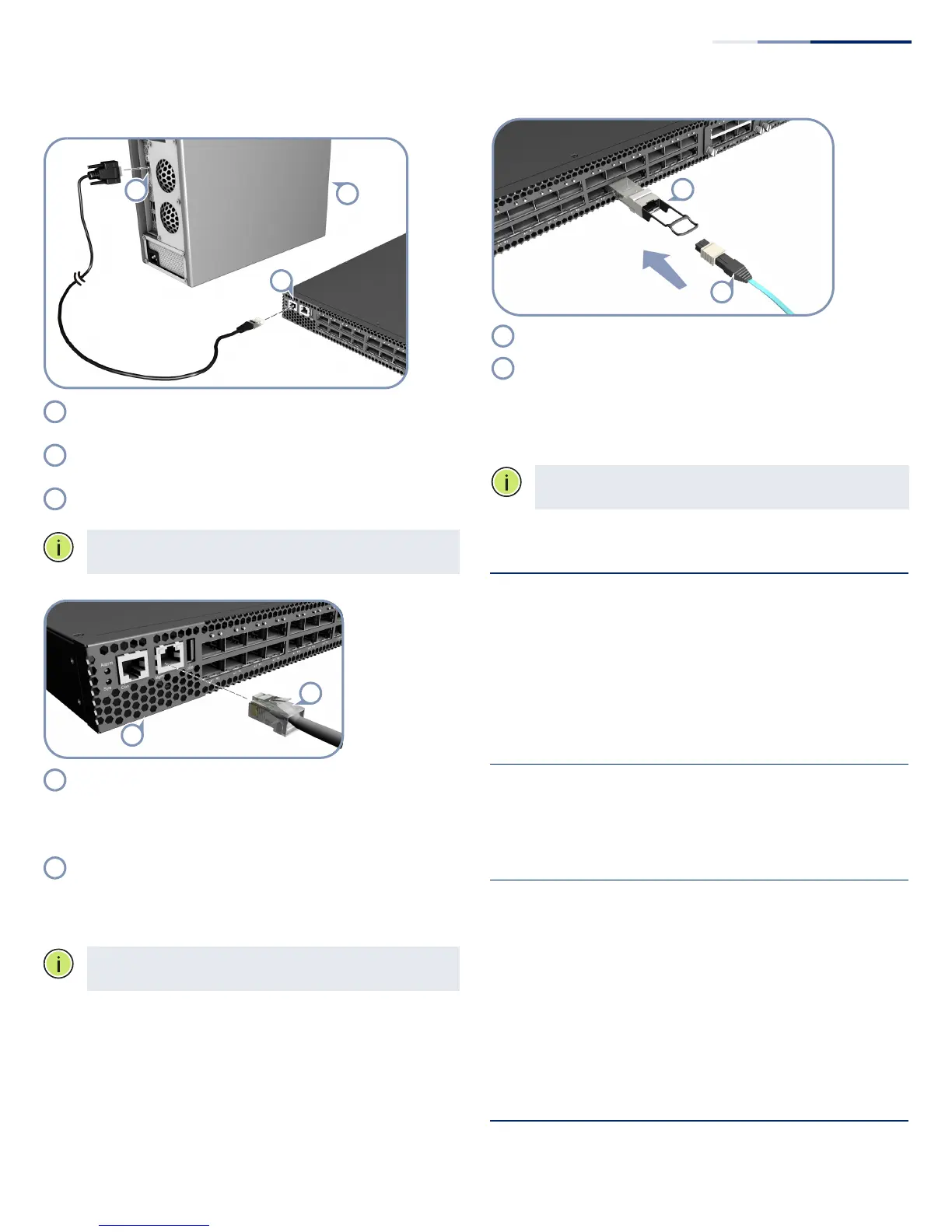

6. Perform Initial Configuration
a. Edge-Core DCSS Software
Connect a PC to the switch console port using the included
console cable.
Configure the PC’s serial port: 115200 bps, 8 characters, no
parity, one stop bit, 8 data bits, and no flow control.
Log in to the command-line interface (CLI) using default
settings: User “admin” with no password.
Note: For information on initial switch configuration, refer
to the Administrator’s Guide.
b. ONIE Installer Software
If the network operating system (NOS) installer is located on
a network server, first connect the RJ-45 Management
(Mgmt) port to the network using Category 5, 5e or better
twisted-pair cable. (Not required if the NOS installer is
located on attached storage.)
Boot the switch. Wait for the ONIE software to locate and
execute the NOS installer, and then wait for the installer to
load the NOS software image.
Subsequent switch boots will bypass ONIE and directly run
the NOS software.
Note: Refer to NOS installer and NOS documentation for
details on software location options and set up for ONIE.
1
2
3
1
2
3
2
1
1
2
7. Connect Network Cables
Install QSFP+ transceivers in the QSFP+ slots.
Connect fiber optic cabling to the transceiver ports. Or,
connect DAC cables directly to the QSFP+ slots.
The following transceivers are supported:
◆
40GBASE-CR4 (DAC)
◆
40GBASE-SR4
◆
40GBASE-LR4
Note: As connections are made, check the port status LEDs
to be sure the links are valid.
Hardware Specifications
Chassis Specifications
SIze W x D x H:
438.4 x 473 x 43.4 mm (17.26 x 18.62 x 1.71 in.)
Weight 8.382 kg (18.52 lb), with two installed PSUs,
five fan trays, and two 40G modules
Temperature Operating: 0° C to 40° C (32° F to 104° F)
Storage: -40° C to 70° C (-40° F to 158° F)
Humidity Operating: 5% to 95% (non-condensing)
Power Specifications
PSU AC Input
Rating
100-240 VAC, 50-60 Hz, 6.0-3.0 A
Switch Power
Consumption
375 Watts maximum, 267 Watts typical
Regulatory Compliances
Emissions EN 55022:2010, Class A
EN 61000-3-2:2009, Class A
EN 61000-3-3:2008
FCC Class A
VCCI Class A
CE Mark
Immunity EN 55024:2010
IEC 61000-4-2/3/4/5/6/8/11
Safety UL (CSA 22.2 No 60950-1 & UL60950-1)
CB (IEC/EN60950-1)
2
1
1
2

Edge-Core AS6701-32X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

psu ac input	100-240 VAC, 50-60 Hz, 6.0-3.0 A
power consumption (maximum)	375 Watts
power consumption (typical)	267 Watts

Weight and Dimensions

size	438.4 x 473 x 43.4 mm
weight	8.382 kg
