MAINTENANCE AND CARE
• Turn Edge right side up and lift cover
making sure pedals stay secure in
cover housing.
2. Remove secondary cover
• Remove clear plastic neck release
lever and return spring-set aside.
• Remove 3 #10 Torx screws and set
aside.
• Lift secondary cover slide by wiring
harness-set aside.
3. Remove Brush Roller Assembly
• Lift Roller Assembly while guiding end cap past belt.
4. Replace Brush Roller
• Only use part #9193.
• Place brush roller assembly with belt over gear into base assembly.
Note: Narrow side of end cap faces down.
5. Reverse Steps above to reassemble the powerhead
• Make certain all wires are in their original positions.
• Take care when placing the neck assembly into its original position. The 2
yellow wires from the neck must move freely through the ‘gate’ under the
neck axis pivot. Be certain wires do not become “pinched.”

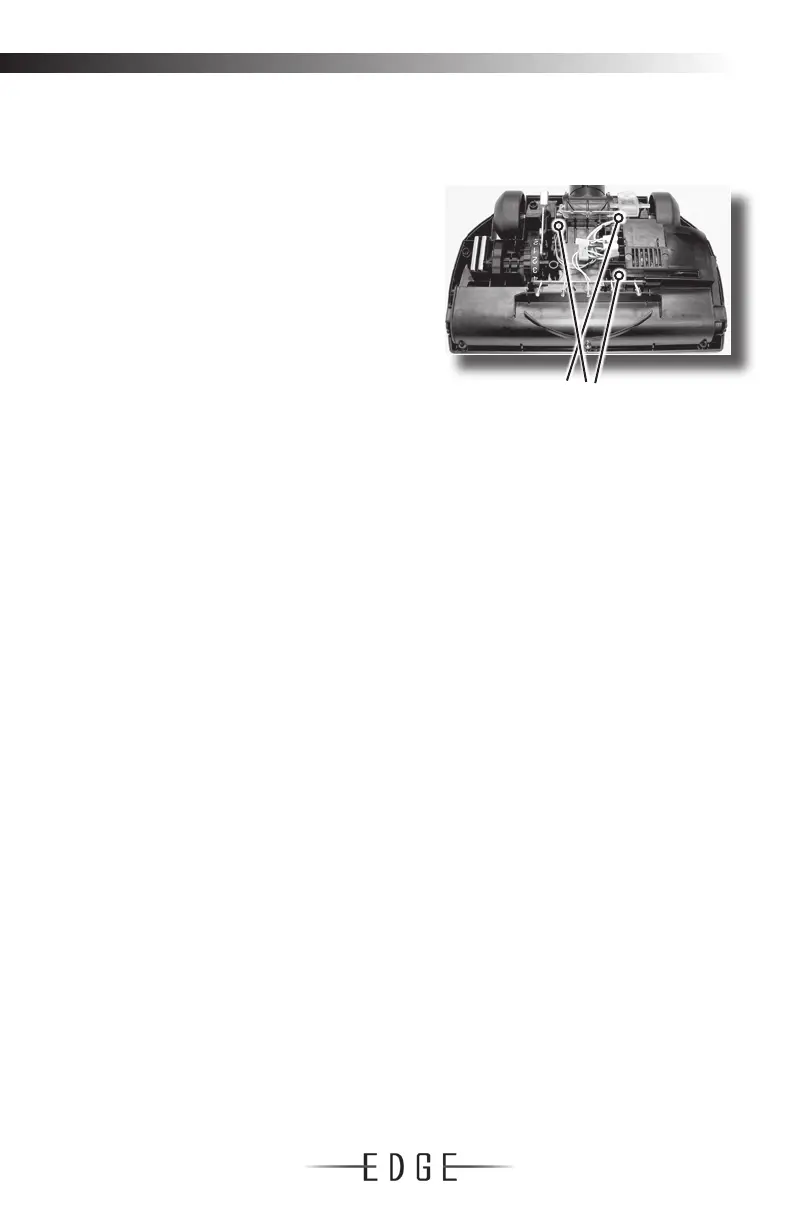

Remove 3 Torx Screws
