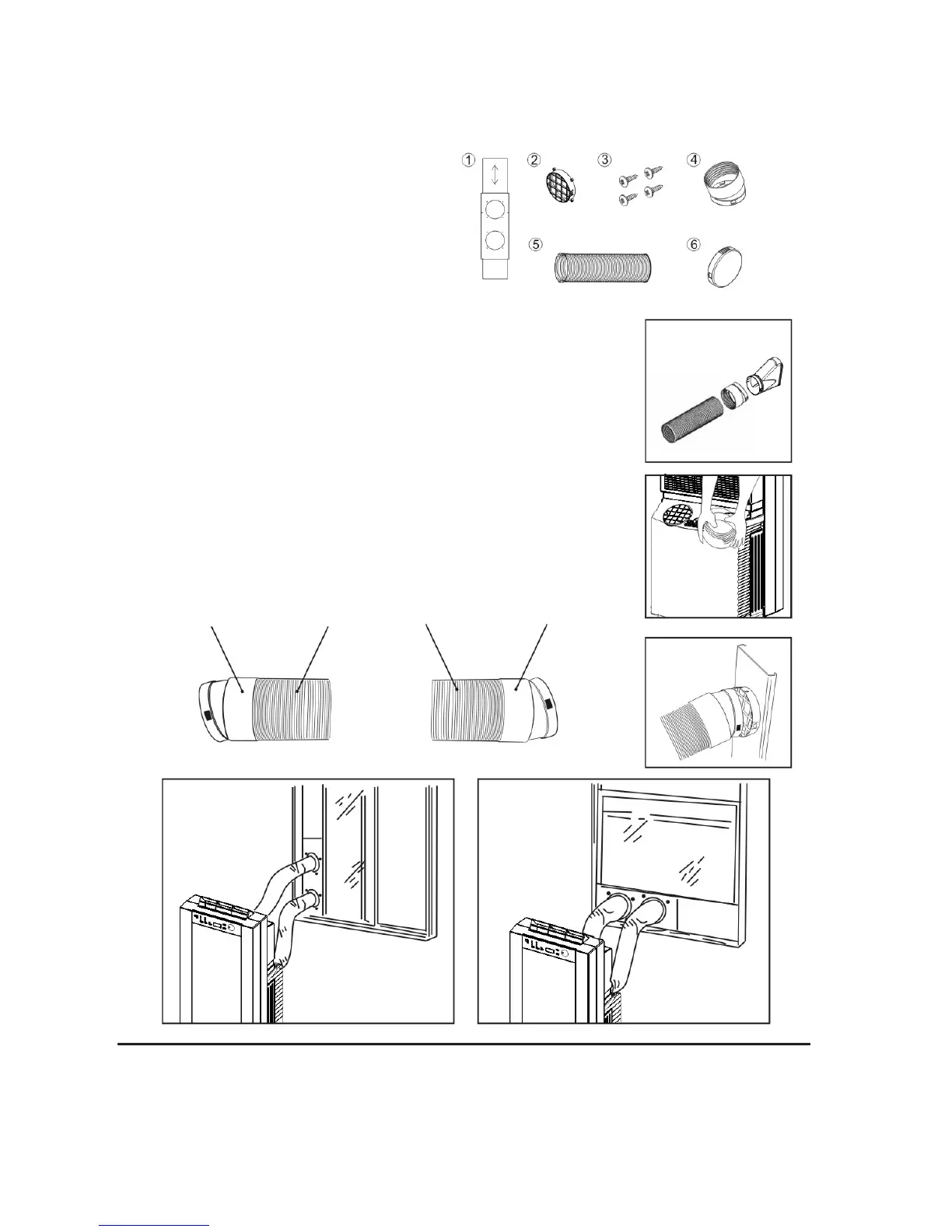

Window Kit Installation Instructions
Accessories Include
1. Window / Patio door slider kit.... 1 set
2. Fixture ....................................... 2 pieces
3. Screws ...................................... 8 pieces
4. Heat exhaust hose connector ... 4 pieces
5. Heat exhaust hose .................... 2 pieces
6. Cover ........................................ 2 pieces
1. Adjust the plastic panel to the width or height of your window and
tighten the 2 screws that are attached to the panel.
2. Push the round window panel adapter through the rear of the plastic
panel. Line up the holes and tighten the adapter with 4 screws that
are included in the kit. (Tighten screws from the front).
3. Install the window plastic panel into the window. If necessary use
duct tape to better secure the panel.
4. Connect exhaust hose to the unit by inserting the hose connector
that is attached to the hose into the exhaust.
5. Move the unit to the window, extend the hose and attach the other
end of the hose to the window. Align the tabs on the hose and
window panel adapters and fasten them together.
Hose Connector Exhaust Hose Hose Connector
Note: This unit can be used with one or two vent hoses. The exhaust hose should always be used in cooling
and heating (HS model) mode. The air intake hose can be used to increase the cooling efficiency of the unit. If
the air intake hose is not used, simply cover one of the grated adapters on the window kit with a vent cap.
6
EdgeStar Portable Air Conditioner
