Wall installation (permanent mounting)

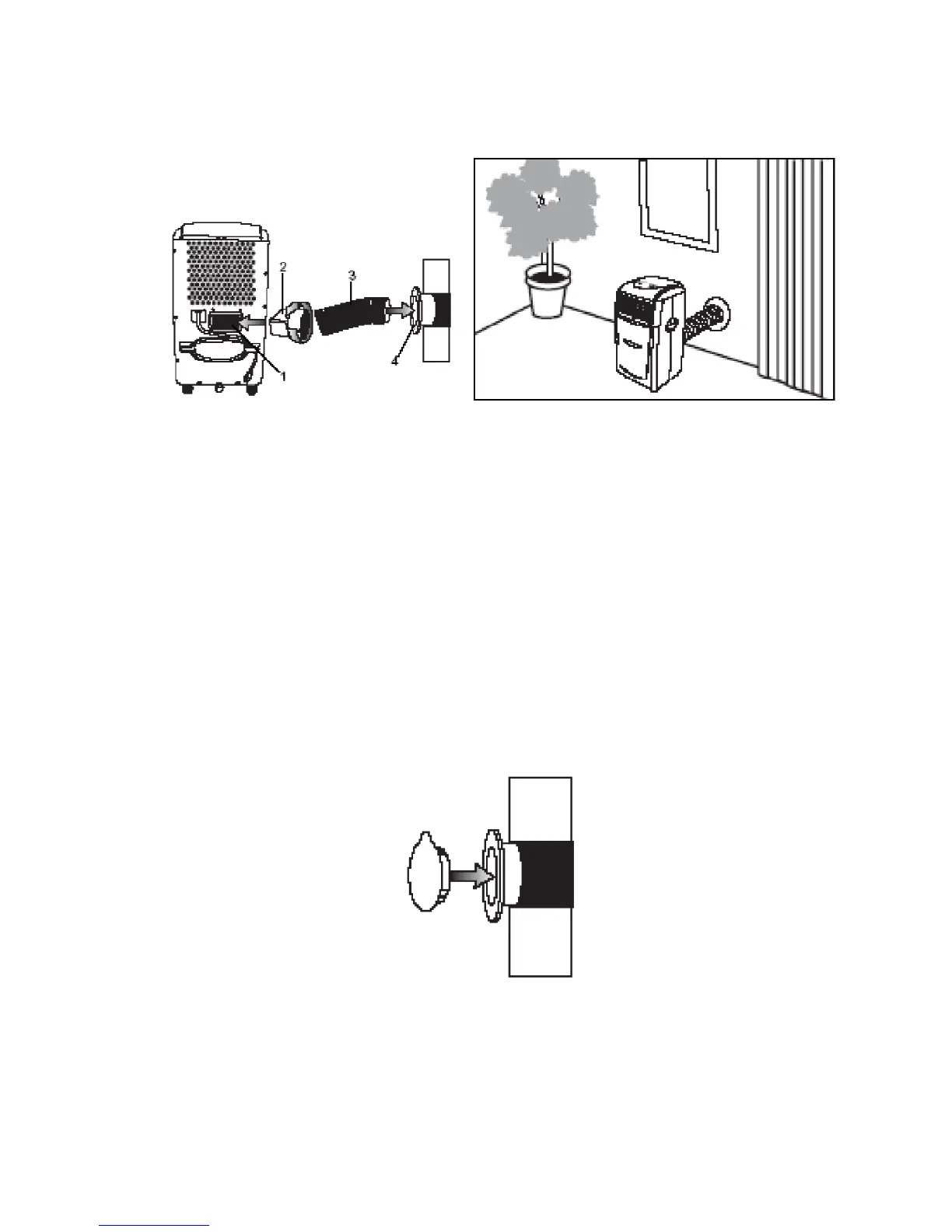

Key for the above diagram:
1. Exhaust port
2. Vent connector
3. Exhaust hose
4. Round adapter
1. Drill a 5 1/8” diameter (approx.) hole through the wall. For safety and to avoid
cutting into structural support beams or electrical wires, please have a qualified
technician drill this hole.
2. Insert the round adapter into the hole (from inside the room) and mark the screw
hole positions on the wall
3. Remove the round adapter from the wall and drill four screw holes in the
positions marked.
4. Replace the round adapter into the wall and screw it into place.
5. Move the portable air conditioner into place near the wall and insert the exhaust
hose into the round adapter. Twist the exhaust hose into the adapter in a clockwise
direction.
6. When not in use, remove the exhaust hose from the round adapter and place the
round adapter cap over the hole.
