3. DISASSEMBLY
2.

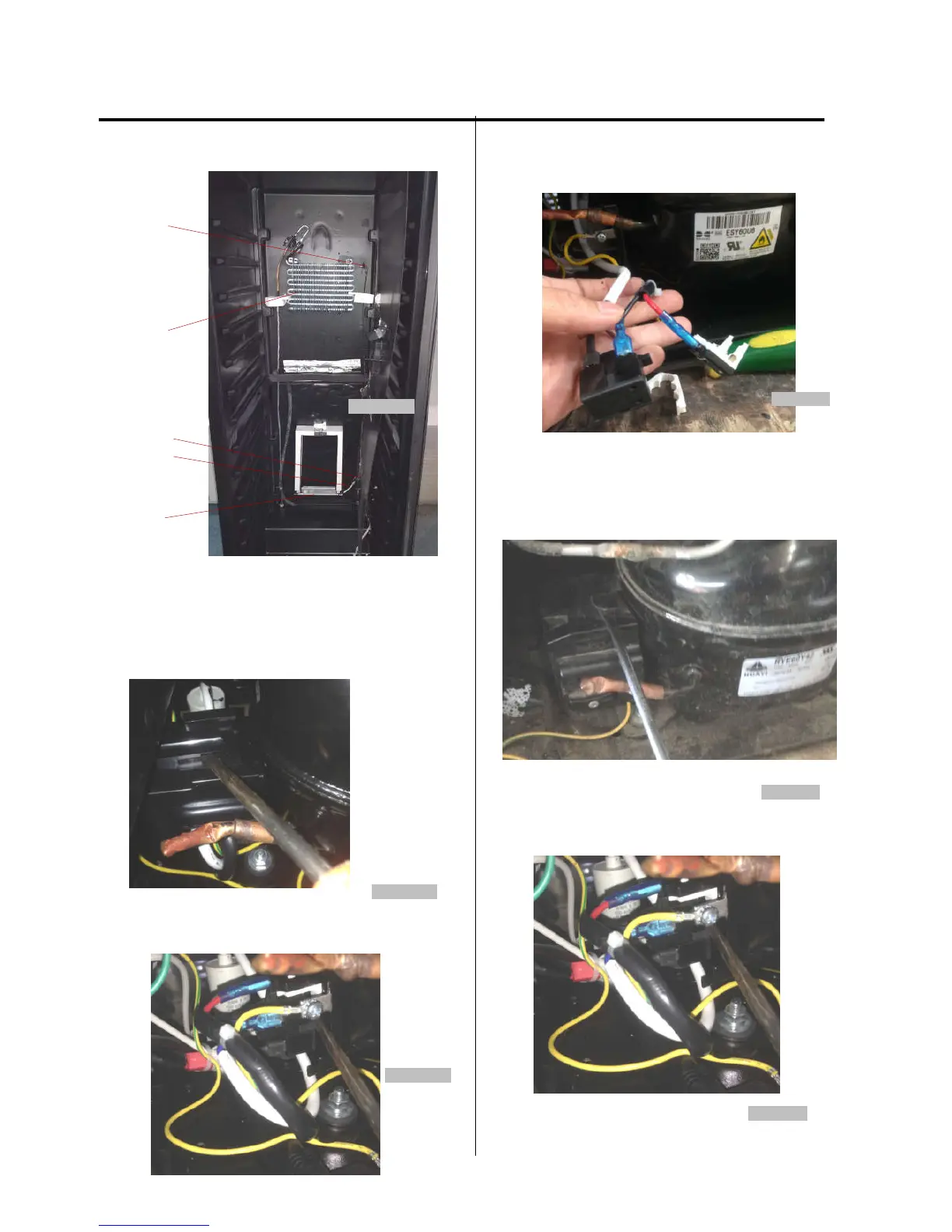

Loosen 1 screw to replace the sensor & fan.
(figure 42)
defrost
sensor
evaporator
Figure 42
screw
wire housing
PTC Heater
3-7 COMPRESSOR PTC STARTER & OVERLOAD
PROTECTOR
(Models：AWC151DZ, AWC241DZ)
1. Open the box near compressor, The starter and overload
protector are located inside. (figure 43)
Figure 43
2. Dismantle the compressor PTC starter and overload
protector. (figure 44)
Figure 44
3. The compressor PTC starter and overload protector is like
below. (figure 45)
Figure 45
(Models：AWC241TDZ)
1、Open the box near compressor, The starter and overload
protector are located inside.(figure 46)
Figure 46
2、 Remove the compressor junction box. (figure 47)
Figure 47
