Parts Replacement Procedures

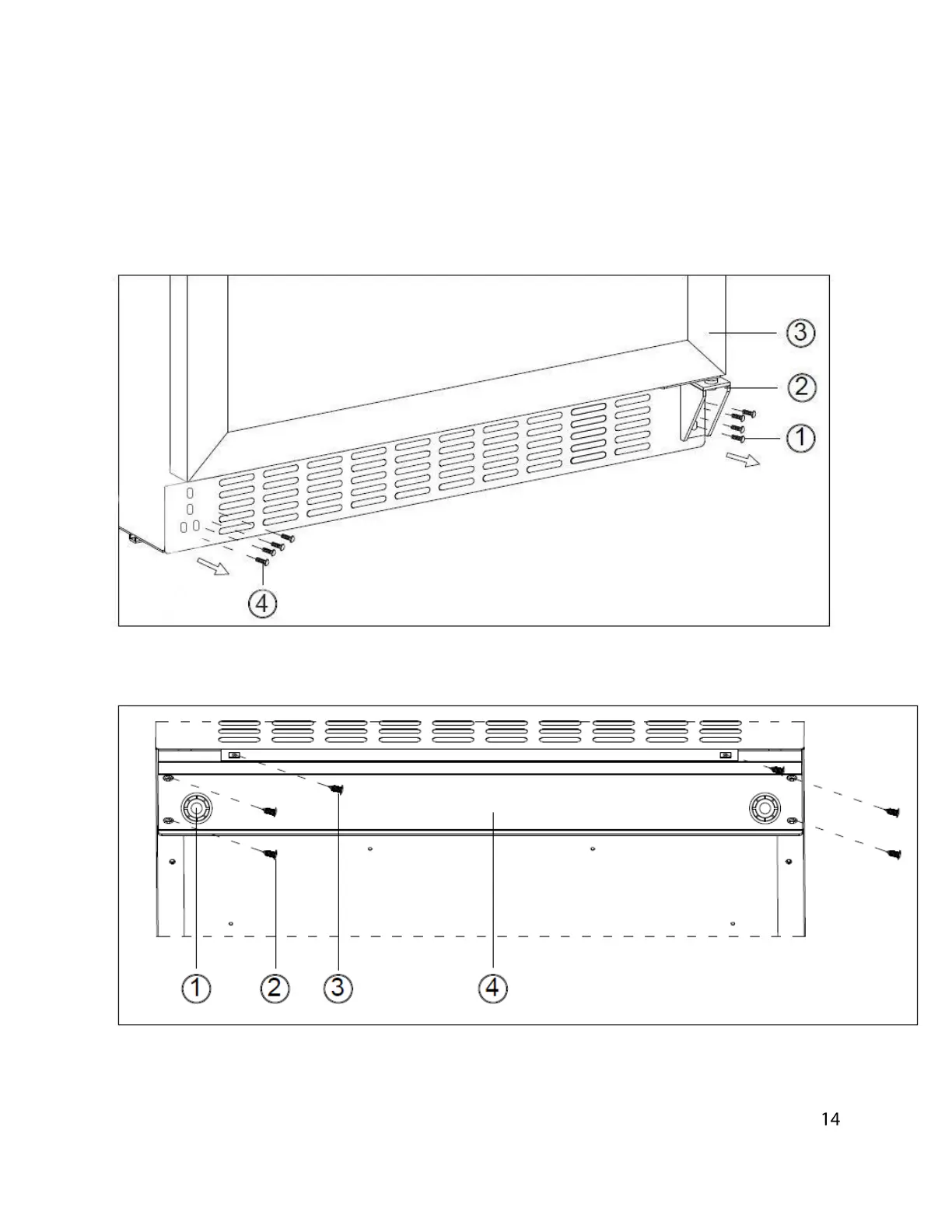

Replacing the ventilation grill / lock assembly
1. With assistance, tilt the unit back and remove screws 1,2, & 4. Be careful to hold the glass
door firmly after removing the screws. Pull down to remove the glass door and place it on a
padded surface to prevent scratching it.
2. Remove the two screws (3) that secure the ventilation grille to the reinforced bracket. At the
same time remove the four bolts (2 and 4) that fix the reinforced bracket to the cabinet.
