REPLACING THE CONDENSER
NOTE: Before replacing any component of the refrigeration system, make sure to read the
instructions “Service Precautions for R600A System” or “Service Precautions for R134a
System”.
1. Disconnect the unit from the power source.

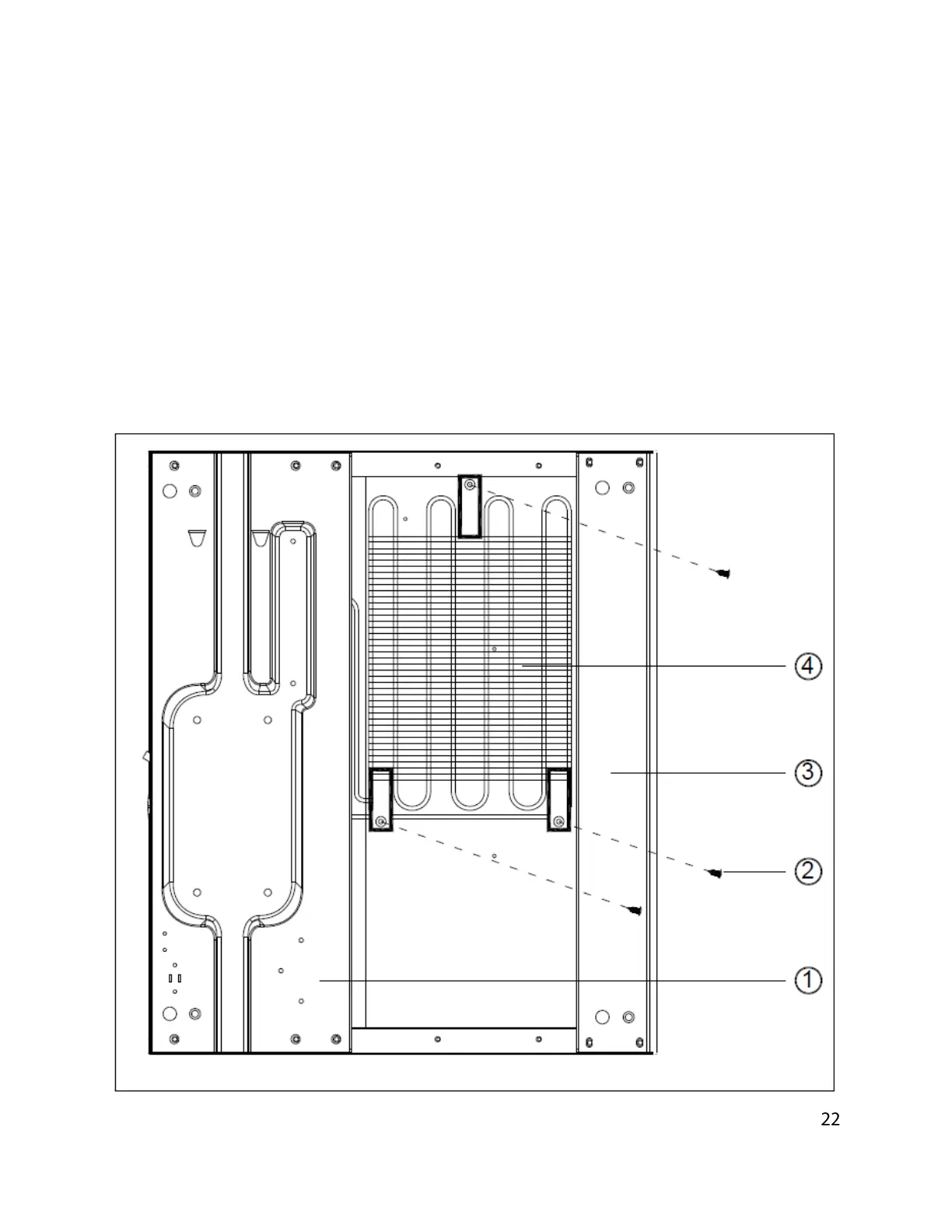

2. Clean and then solder the inlet and the outlet tube from the old condenser (4)
3. With assistance, tilt the cabinet side and remove the screws (2) that secure the
1. condenser to the cabinet bottom.
4. Install the new replacement condenser to the cabinet by screws.
5. Clean and connect the hot pipe to the outlet tubing.
6. Clean again and connect the inlet tubing of the condenser to the spiral pipe.
7. Solder all joints. Silver solder and proper flux should be used on copper to steel or steel to
steel joints. Excess flux should be wiped off all tubing.
