Edgewater Networks 245CC - Order Guide; Cylinder Specification; Optional Pump

8-2

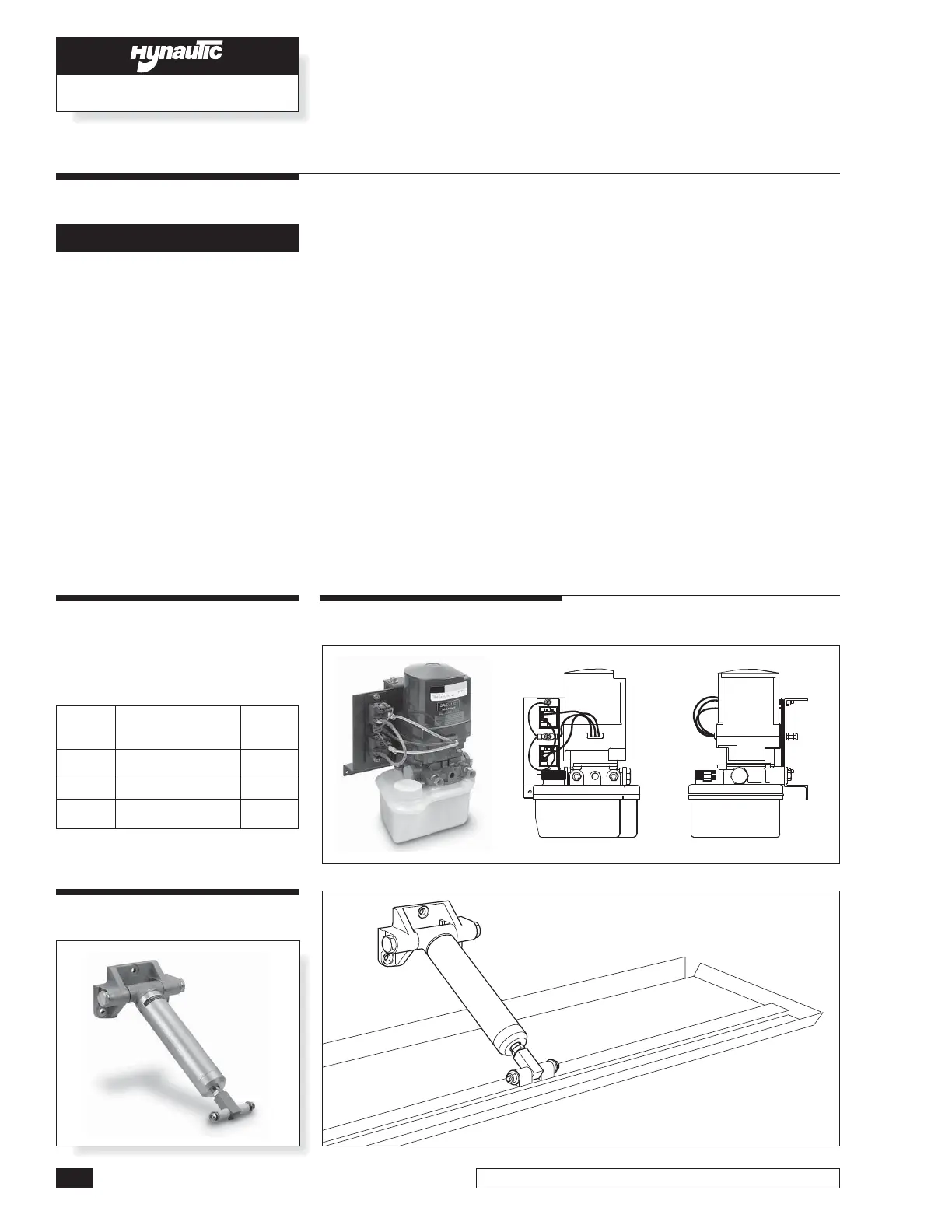

Selection Guide
Order Guide
Tab Cylinder
Part# TK-01
Optional Pump Part# TP-03
TCS-1-01 TAB CYLINDER SYS, 24 VOLT:
Control switch 1 ea ............................................................TC-03
Tab cyl. - cruiser 2 ea ............................................................TK-01
Power pump 2 ea ............................................................TP-01
Manual 1 ea ........................................................182037
Hose - 2ft. 4 ea ........................................................207402
TCS-1-02 TAB CYLINDER SYS, 12 VOLT:
Control switch 1 ea ............................................................TC-03
Tab cyl. - cruiser 2 ea ............................................................TK-01
Power pump 2 ea ............................................................TP-02
Manual 1 ea ........................................................182038
Hose - 2ft. 4 ea ........................................................207402
TCS-2-02 TAB CYLINDER SYS, 12 VOLT:
Control switch 1 ea ............................................................TC-03
Tab cyl. - cruiser 4 ea ............................................................TK-01
Power pump 2 ea ............................................................TP-02
Manual 1 ea ........................................................182038
Hose - 2ft. 4 ea ........................................................207402
OPTIONAL PUMP:
Pump 24V DC (110cu. in./minute).............................................TP-03
TRIM TABS
Cylinder Specification
Stroke = 4"
Displacement = 5.94 cu in.
Force = 2230 ft lb @ rated pressure
Pressure and plate dimensional
requirements are to be calculated
by your Naval Architect.
NOTICE
Model Displacement Motor
(in. 3/min)
TP-02 57 12V
TP-01 80 24V
TP-03 110 24V
