SEASTAR and BAYSTAR Hydraulic Steering Systems
9-5
HELMS

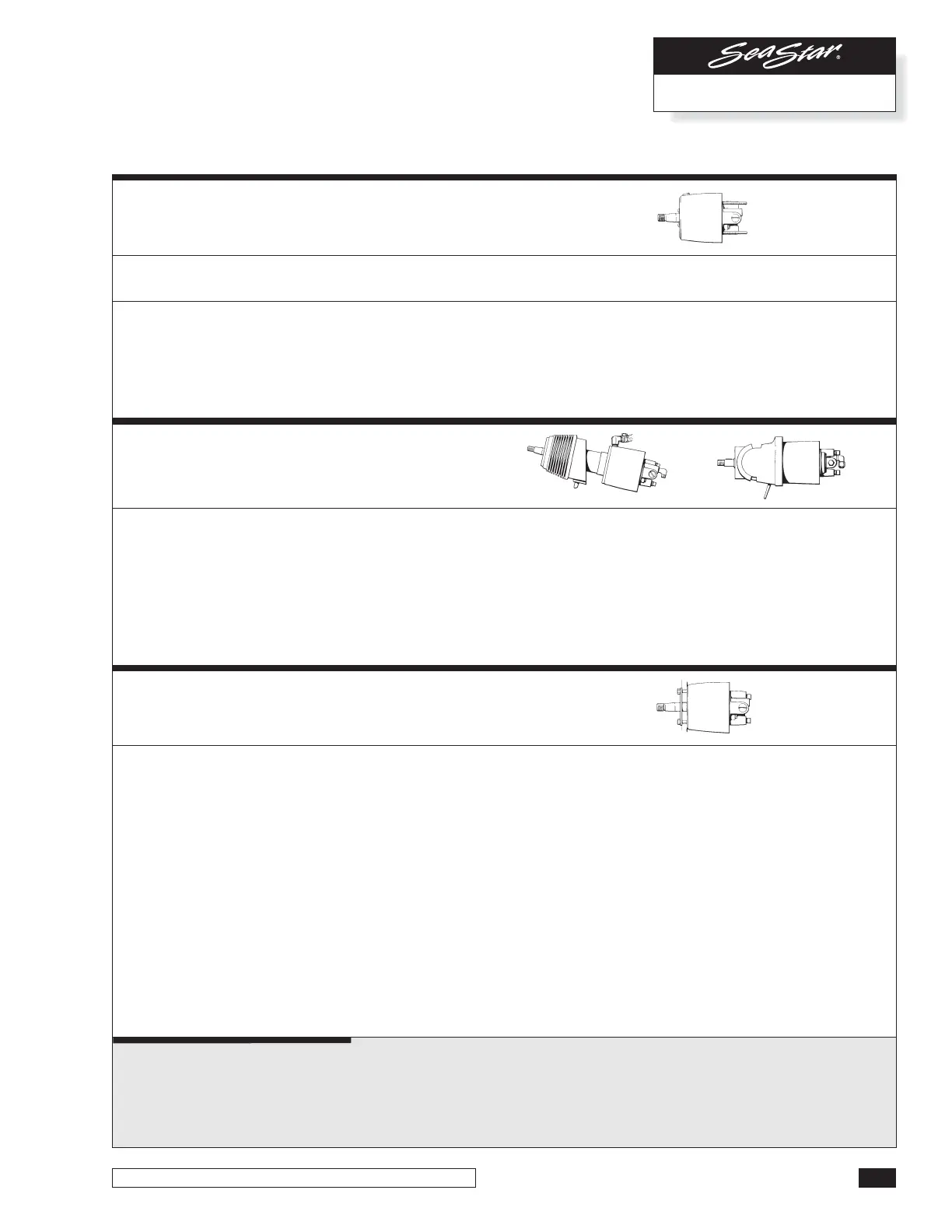

SeaStar PRO Helm – Order Guide
PART HELM DISPLACEMENT RELIEF VALVE SETTING NOTES
NUMBER DESCRIPTION CU. IN./REV (CC/REV) PSI (BAR)
HH5779 STANDARD MOUNT 1.7 (27.8) 1500 (103) 1
HH5218 STD. MOUNT, COMMERCIAL 1.7 (27.8) 1500 (103) 1, 3
HH5770 STANDARD MOUNT 2.0 (33.0) 1500 (103) 1
HH5772 STANDARD MOUNT 2.4 (39.3) 1500 (103) 1
HH5775 TRADITIONAL TILT 1.4 (23.0) 1500 (103) 1
HH5773 TRADITIONAL TILT 1.7 (27.8) 1500 (103) 1
HH6189 SPORT TILT 1.7 (27.8) 1500 (103) 1
HH5774 TRADITIONAL TILT 2.0 (33.0) 1500 (103) 1
HH6190 SPORT TILT 2.0 (33.0) 1500 (103) 1
HH6188 SPORT TILT 2.4 (39.3) 1500 (103) 1
HH5778 REAR MOUNT 1.7 (27.8) 1500 (103) 1
HH5771 REAR MOUNT 2.0 (33.0) 1500 (103) 1
NOTES
1. SeaStar PRO helms cannot be used with an unbalanced cylinder. SeaStar reinforced Kevlar
Outboard style hoses MUST be used with ALL SeaStar PRO helms.
2. No “Check Valves” are installed into these helm pumps. These are intended for use in a single
steering station application ONLY. Not for use in multiple steering stations and/or in conjunction
with autopilot.
3. Commercial helms use a stainless steel shaft and a better sealing top plate for use in extreme
conditions and or commercial type applications.
SeaStar PRO Standard Mount
SeaStar PRO Traditional and Sport
Tilt Mount
SeaStar PRO Rear Mount
