PART HELM DISPLACEMENT RELIEF VALVE SETTING NOTES
NUMBER DESCRIPTION CU. IN./REV (CC/REV) PSI (BAR)
HH5269 STANDARD MOUNT 1.4 (23.0) 1000 (70)
HH5271 STANDARD MOUNT 1.7 (27.8) 1000 (70)
HH5761 STANDARD MOUNT FULL FEEDBACK 1.7 (27.8) 1000 (70) 2
HH5217 STD. MOUNT, COMMERCIAL 1.7 (27.8) 1000 (70) 3
HH5273 STANDARD MOUNT 2.0 (33.0) 1000 (70)
HH5760 STANDARD MOUNT FULL FEEDBACK 2.0 (33.0) 1000 (70) 2
HH5272 STANDARD MOUNT 2.4 (39.3) 1000 (70)
HH5762 STANDARD MOUNT FULL FEEDBACK 2.4 (39.3) 1000 (70) 2
HH5224 STD. MOUNT, COMMERCIAL 2.4 (39.3) 1000 (70) 3
HH5744 TRADITIONAL TILT 1.4 (23.0) 1000 (70)
HH6193 SPORT TILT 1.4 (23.0) 1000 (70)
HH5741 TRADITIONAL TILT 1.7 (27.8) 1000 (70)
HH6191 SPORT TILT 1.7 (27.8) 1000 (70)
HH6291 SPORT TILT (Spline Shaft) 1.7 (27.8) 1000 (70)
HH5743 TRADITIONAL TILT 2.0 (33.0) 1000 (70)
HH6145 SPORT TILT 2.0 (33.0) 1000 (70)
HH5742 TRADITIONAL TILT 2.4 (39.3) 1000 (70)
HH6192 SPORT TILT 2.4 (39.3) 1000 (70)
HH6292 SPORT TILT (Spline Shaft) 2.4 (39.3) 1000 (70)
HH5260 REAR MOUNT 1.4 (23.0) 1000 (70)
HH5279 REAR MOUNT 1" STRAIGHT SHAFT 1.4 (23.0) 1000 (70)
HH5280 REAR MOUNT 1" TAPERED SHAFT 1.4 (23.0) 1000 (70)
HH5231 REAR MOUNT FULL FEEDBACK 1.4 (23.0) 1000 (70)
HH5261 REAR MOUNT 1.7 (27.8) 1000 (70)
HH5281 REAR MOUNT 1" TAPERED SHAFT 1.7 (27.8) 1000 (70)
HH5262 REAR MOUNT 2.4 (39.3) 1000 (70)
HH5282 REAR MOUNT 1" TAPERED SHAFT 2.4 (39.3) 1000 (70)
9-4
Selection Guide

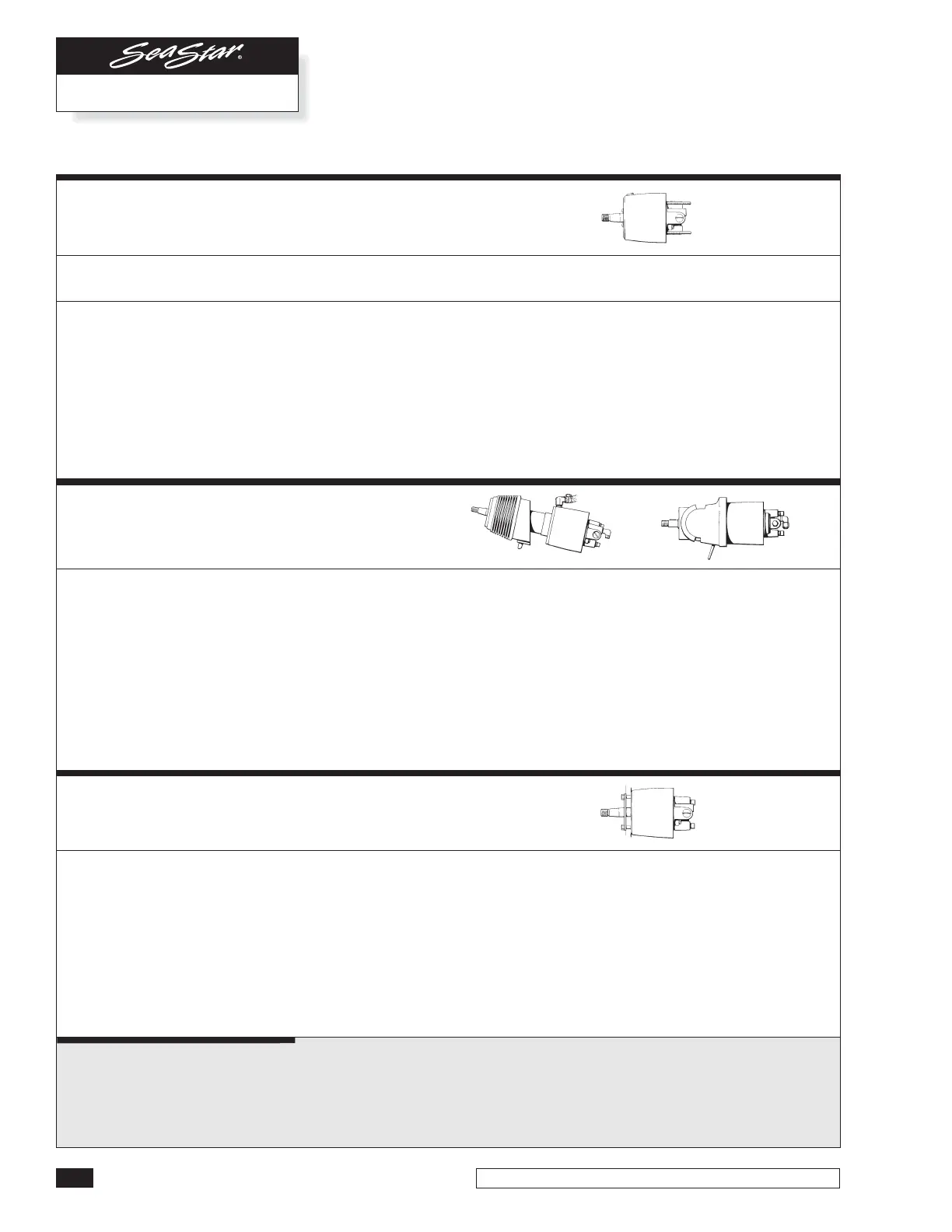

SeaStar Helm – Order Guide
HELMS
NOTES
1. SeaStar PRO helms cannot be used with an unbalanced cylinder. SeaStar reinforced Kevlar
Outboard style hoses MUST be used with ALL SeaStar PRO helms.
2. No “Check Valves” are installed into these helm pumps. These are intended for use in a single
steering station application ONLY. Not for use in multiple steering stations and/or in conjunction
with autopilot.
3. Commercial helms use a stainless steel shaft and a better sealing top plate for use in extreme
conditions and or commercial type applications.
SeaStar Standard Mount
SeaStar Tilt Mount
SeaStar Rear Mount
