Edgewater Networks 245CC - Accessories; Backplate Kit (part # HA5418); Round Bezel (part # HA5417); 20° Wedge (part # HA5419 & HA5408 c;w Drain kit)

SEASTAR and BAYSTAR Hydraulic Steering Systems
9-3
STEERING HELM MODEL SYSTEM BACKPLATE
MANUFACTURER TYPE KIT REQ
TELEFLEX SAFE-T MECHANICAL YES
BIG-T MECHANICAL YES
ROTARY MECHANICAL NO
RACK AND PINION MECHANICAL NO
SYTEN HYDRAULIC YES
MORSE ROTARY MECHANICAL NO
RACK AND PINION MECHANICAL NO
HYNAUTIC H-50 SERIES HYDRAULIC YES
H-60 SERIES HYDRAULIC YES
H-80 SERIES HYDRAULIC YES
H-300 SERIES HYDRAULIC YES
L For this configuration use HA5408
NUT

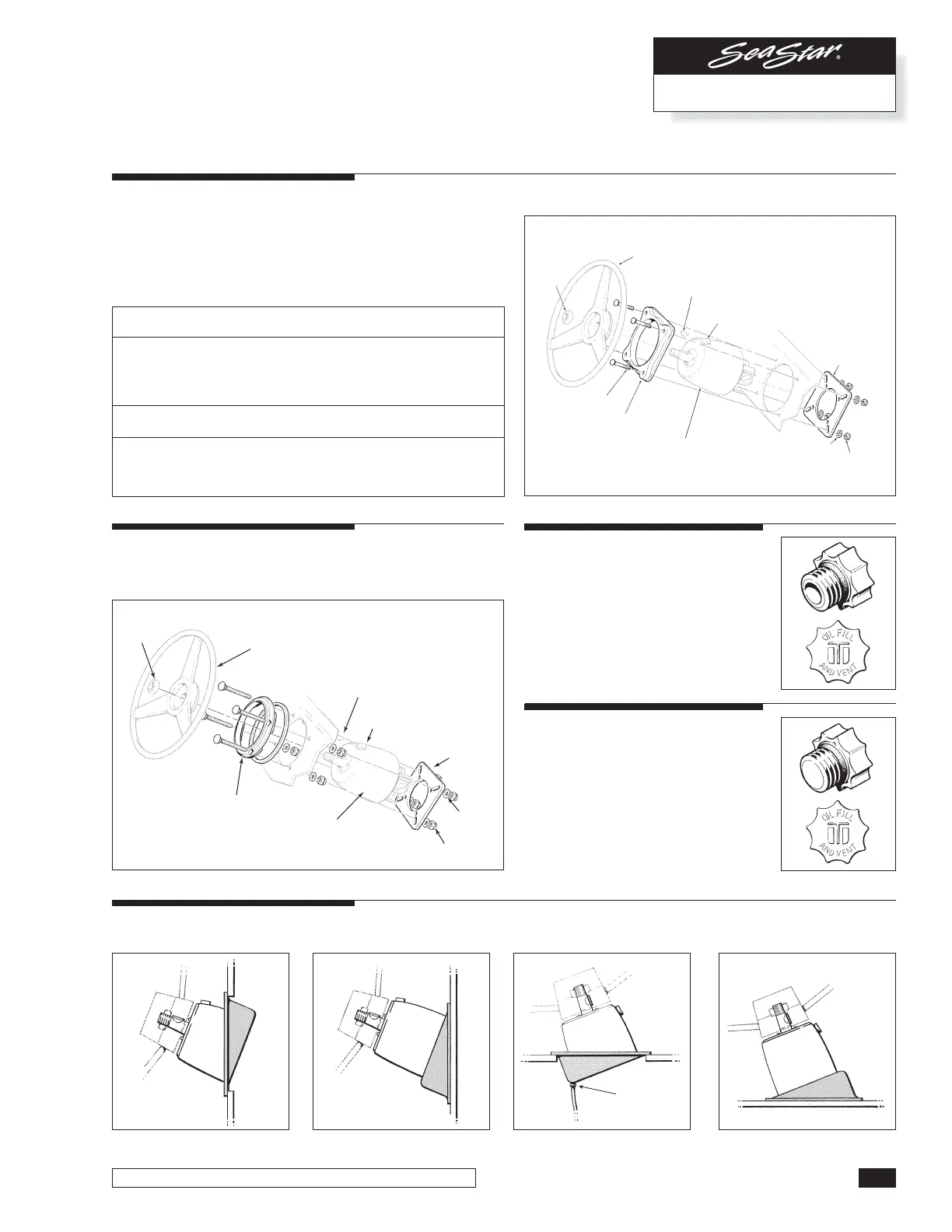

Backplate Kit (part # HA5418)
a) Used to retrofit a new Seastar standard helm in the old
4.5" (115mm) diameter hole, or
b) reduce the helm protrusion from the dash by the thickness
of the dash, or
c) retrofit new SEASTAR standard helm into hole cutouts for
mechanical and hydraulic steering as per chart.
STEERING WHEEL
CARRIAGE BOLTS
PLASTIC BEZEL
HELM PUMP
WASHER
LOCKNUT
BACK PLATE
WOODRUFF KEY
FILLER PLUG
(VENTED OR NON-VENTED)
DRAIN KIT
DASH
DASH
DASH
DASH
Accessories
Round Bezel (part # HA5417)
Reduces the distance the helm protrudes from the front of
the dash to 3.75" (93mm).
20° Wedge (part # HA5419 & HA5408 c/w Drain kit)
This kit is designed to mount the helm at a 20° angle to the
mounting surface. 4 possible mounting configurations are available.
Vent Plug (part # HA5431)
Supplied with SeaStar Helm Pump
Must Be used with Helm Pump on all
single steering station systems.
Must be used on uppermost Helm Pump
on multi steering station systems.
Non-Vent Plug (part # HA5432)
Must be used on all Helm Pumps
other than uppermost Helm Pump on
multi steering station systems.
This Non-Vent Plug is supplied with
additional Fitting Kit No. HF5501 &
HF5502
HELM PUMP
BEZEL
NUT
STEERING WHEEL
WOODRUFF KEY
BACK PLATE
WASHER
LOCKNUT
FILLER PLUG
(VENTED OR NON-VENTED)
HELMS
