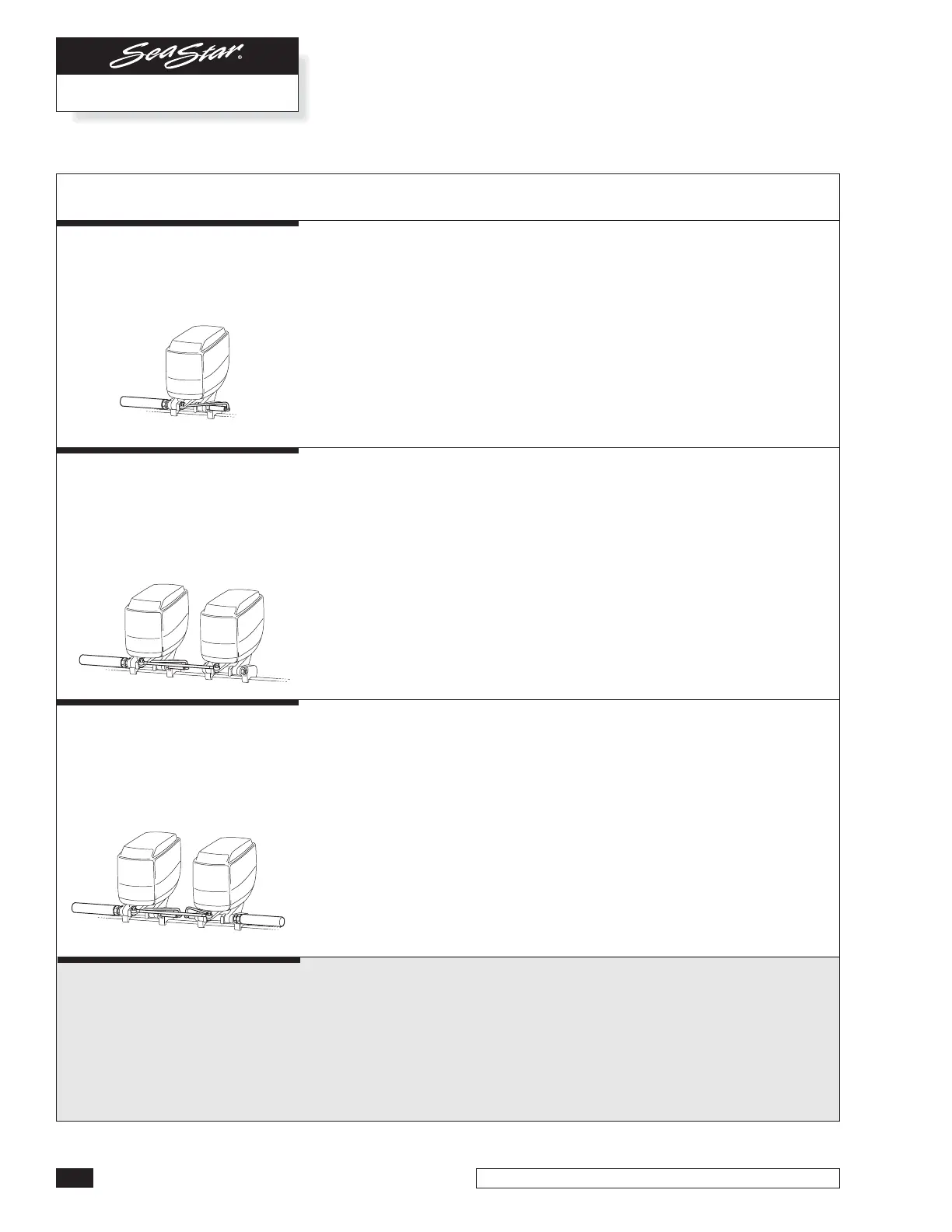

Selection Guide
OUTBOARD–SIDE MOUNT
ENGINE/ CYLINDER
CONFIGURATION
DUAL ENGINE
(SINGLE CYLINDER)
NON-COUNTER ROTATING APPLICATIONS UP
TO 300 HP MAX
COUNTER ROTATING ENGINE APPLICATIONS
UP TO 600 HP MAX
NUMBER OF TURNS 4.8/5.7
APPLICATIONS UP TO 300 HP MAX
NUMBER OF TURNS 4.8/5.7
SINGLE ENGINE
(SINGLE CYLINDER)
NON-COUNTER ROTATING APPLICATIONS UP
TO 600 HP MAX
ALL COUNTER ROTATING ENGINE
APPLICATIONS
NUMBER OF TURNS 7.5
DUAL ENGINE
(DUAL CYLINDERS)
CYLINDER 1 SIDE MOUNT HC5370
TIE BAR KIT 1 TIE BAR ONLY HO5009
HELM 1 * SEASTAR I- STANDARD HH5271 9-6
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
OIL 3 SEASTAR OIL HA5430 11-1
FOR EXTRA STEERING STATIONS ADD:
HELM 1 * SEASTAR I- STANDARD HH5271 9-6
FITTING KIT 1 ADD A STATION HF5501 10-10
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
OIL 1 SEASTAR OIL HA5430 11-1
CYLINDER 2 SIDE MOUNT HC5370
TIE BAR KIT 1 TIE BAR ONLY HO5009
HELM 1 ** SEASTAR II- STANDARD HH5272 9-6
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
FITTING KIT 1 TEE FITTINGS HF5530 10-1
OIL 3 SEASTAR OIL HA5430 11-1
FOR EXTRA STEERING STATIONS ADD:
HELM 1 ** SEASTAR II- STANDARD HH5272 9-6
FITTING KIT 1 ADD A STATION HF5501 10-10
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
OIL 1 SEASTAR OIL HA5430 11-1
BACK PLATE KIT (FOR STANDARD HELMS) HA5418 9-3
20 DEGREE WEDGE (FOR STANDARD HELMS) HA5419 9-3
AUTOPILOT FITTING KIT (FOR ALL HELMS) HF5501 10-10
* TILT HELM- SEASTAR I HH5741 9-7
REAR MOUNT HELM- SEASTAR I HH5261 9-7
** TILT HELM- SEASTAR II HH5742 9-7
REAR MOUNT HELM- SEASTAR II HH5262 9-7
POWER ASSIST STEERING PA1200 2-1
DESCRIPTION QTY MODEL PART REF.
REQ NUMBER PAGE #
CYLINDER 1 SIDE MOUNT HC5370
HELM 1 * SEASTAR I- STANDARD HH5271 9-6
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
OIL 3 SEASTAR OIL HA5430 11-1
FOR EXTRA STEERING STATIONS ADD:
HELM 1 * SEASTAR I- STANDARD HH5271 9-6
FITTING KIT 1 ADD A STATION HF5501 10-10
HOSE KIT 1 OUTBOARD HOSE HO51_ _ 10-2
OIL 1 SEASTAR OIL HA5430 11-1
