SEASTAR and BAYSTAR Hydraulic Steering Systems
3-15

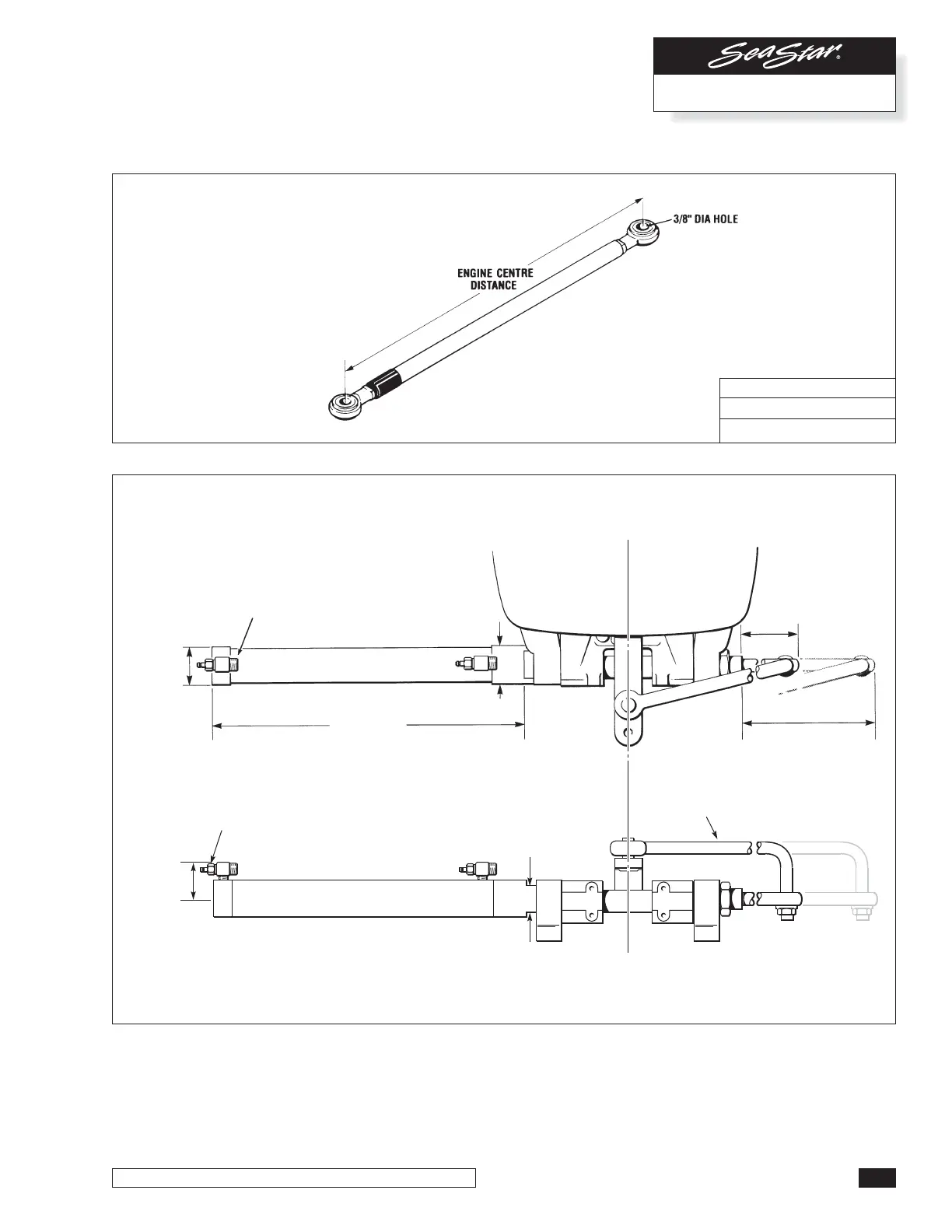

General Dimensions
LINK ARM SUPPLIED BY
ENGINE MANUFACTURER
3/8" COMPRESSION FITTING
13" (330mm)
9" (229mm) AT
FULL EXTENSION
0.75" (19mm) AT
FULL RETRACTION
1.5" DIA
(38mm)
1.5" (38mm)
1-5/16" ACROSS
WRENCH FLATS
BLEED NIPPLE
1.74"
(45mm)
Tie Bar for Side Mount Cylinders Part# HO5009
ENGINE CENTRE DISTANCE
MAXIMUM: 36" (914mm)
MINIMUM: 26" (660mm)
PART# HC5370
OUTBOARD–SIDE MOUNT
