5-4
Selection Guide

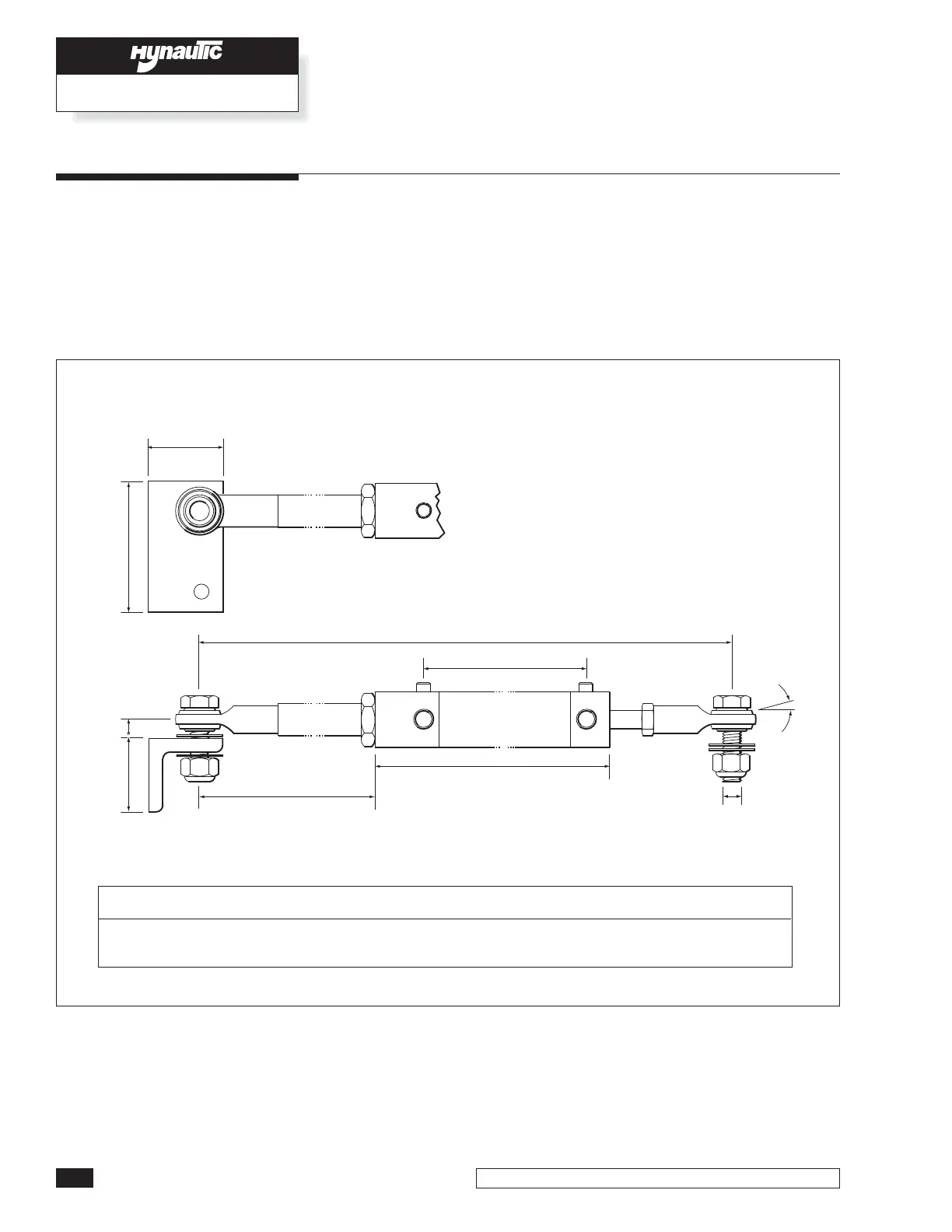

A (COLLAPSED LENGTH)
FIXED MOUNT SIDE
D
C
B
2"
(51mm)
0.85"
(22mm)
3.5"
(89mm)
2" (51mm)
0.5"
(13mm)
DIA.
15° MAX.
MISALIGNMENT
K-18 & K-19
INBOARD STEERING
The K-18 and K-19 balanced cylinders are double rod ended, each
end held in place with internal wire ties. Every cylinder is equipped
with a swivel joint at each end. One provides for a fixed mount
attachment point at the end of the housing to protect the moving
rod. The other swivel joint, located at the rod end, allows for free
movement of the cylinder without binding when attached to the
rudder arm.
Above cylinders can be used on the following boats:
K-18 = ALL System #1 as noted on page 5-2.
K-19 = ALL Systems #1 through #3 as noted on page 5-2.
CYL DIMENSIONS
MODEL A B C D BORE STROKE DISP
K-18 24.5" (662mm) 9.31" (237mm) 11.75" (299mm) 9.875" (251mm) 1.25" (32mm) 7" (178mm) 7cu in
K-19 28.5" (724mm) 11.31" (287mm) 13.75" (350mm) 11.875" (302mm) 1.25" (32mm) 9" (229mm) 9cu in
Universal Mount Cylinders
K-18/K-19
General Dimensions–Hynautic
