INBOARD STEERING
These Brass cylinders are for larger boats up to approximately 70 ft.
Tubes, ends, and external rods are brass: cylinder rods are 17-4
stainless steel: mounts are manganese bronze. There are two
different types of mounting packages for Brass cylinders: fixed
mount and pivot mount.
Fixed Mount and Pivot
Mount models:
K-22, K-27 and K-31

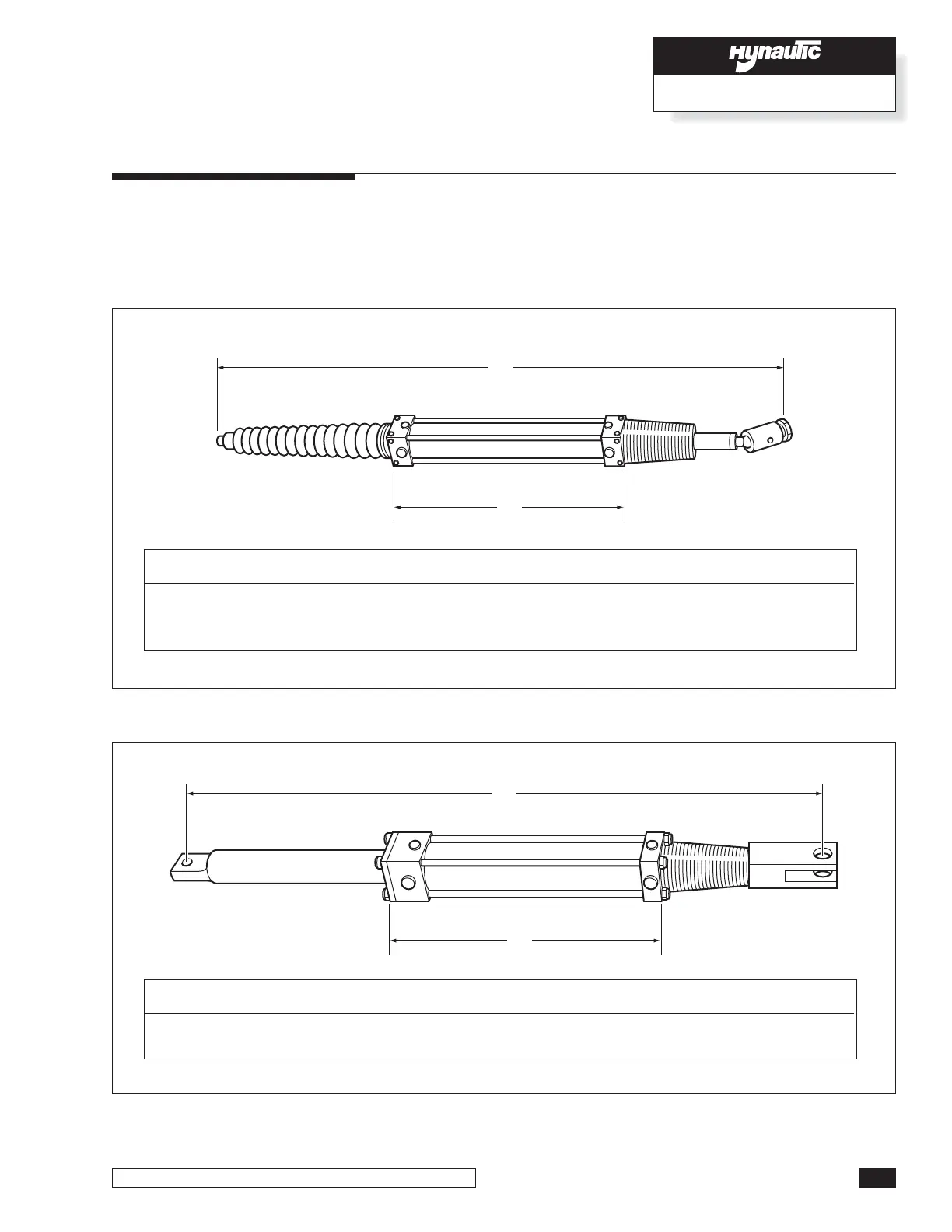

CYL DIMENSIONS
MODEL A B BORE STROKE DISP
K-31 *38.37" (975mm) 14.12" (359mm) 2.0" (51mm) 10" (254mm) 25.5cu in
*Dimensions are with the cylinder rod centered.
CYL DIMENSIONS
MODEL A B BORE STROKE DISP
K-22 *34.12" (867mm) 13.25" (337mm) 1.5" (38mm) 10" (254mm) 13.20cu in
K-27 *36.75" (934mm) 13.25" (337mm) 1.5" (38mm) 10" (254mm) 13.20cu in
*Dimensions are with the cylinder rod centered.
A
B
A
B
K-22 & K-27
K-31
For use in Systems #3 through #4 as noted on page page 5-2.
For use in System #5 as noted on page 5-2.
