MODEL VOLTS AMP DRAW (A)
@ 10 psi (0.7 bar)
FUSE SIZE (A) OPEN FLOW
GPM (l/min)
MAX PSI (bar)
31395-0092 12V dc 4.4 10 2.9 (11) 50 (3.4)
31395-0094 24V dc 2.2 5 2.9 (11) 50 (3.4)
31395-0392 12V dc 4.4 10 2.9 (11) 40 (2.7)
31395-0394 24V dc 2.2 5 2.9 (11) 40 (2.7)
31395-0292 12V dc 4.4 10 2.9 (11) 25 (1.7)
31395-0294 24V dc 2.2 5 2.9 (11) 25 (1.7)
31295-0092 12V dc 3.5 10 1.9 (7) 25 (1.7)
31295-0094 24V dc 1.7 5 1.9 (7) 25 (1.7)
3.18
(80 mm)
4.24
(105 mm)
4.75
(121 mm)
9.00
(229 mm)
3.12
(80 mm)
2.25
(63 mm)

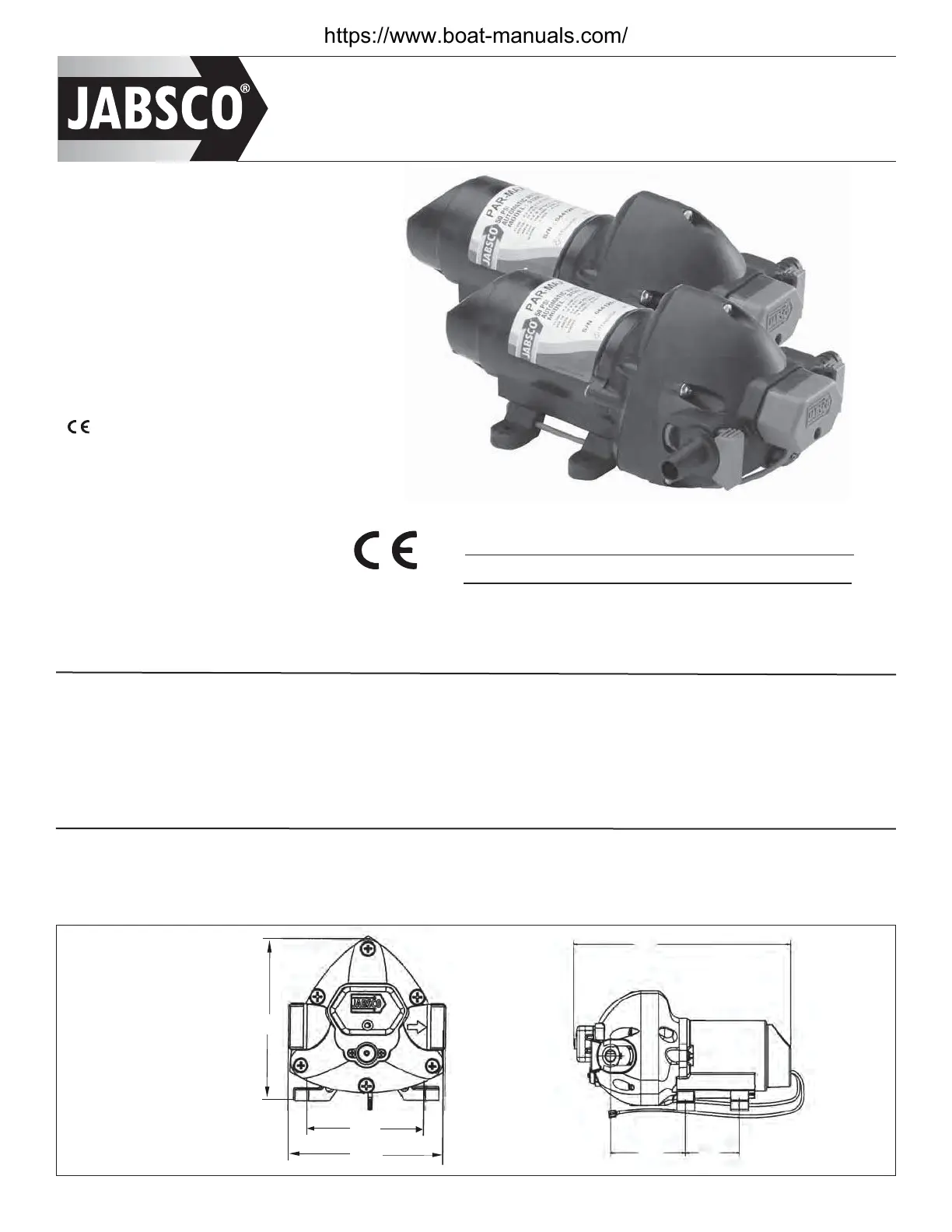

31295 / 31395 - SERIES
AUTOMATIC WATER SYSTEM PUMP
31295 / 31395 - Series
Pump Series Dimensions - Inches (mm) Weight
Height Width Length lb. (kg)
31X95-XXXX 4-3/4" (121) 6" (152) 9" (229) 3.5 (1.6 kg)
With pump switch off and battery fully charged, fill water tank,
open all faucets, then turn pump switch on. Water will begin to
flow. When the water is free of air, turn faucets off. Remember,
you are filling the water heater and the toilet and shower lines.
When all valves are shut-off, pump will stop. Should pump fail to
stop, turn switch off and see the trouble shooting guide.
OPERATION
DIMENSIONAL DRAWING
(2) 1/2” (13 mm) Hose Barbs
FEATURES
• Smooth Flow
• Self-Priming up to 10 feet (3m)
• Dry running capability
• Soft noise absorbing mounts
• Snap-fit port fittings
• Built-in bypass — less pulsation
• Reduces need for accumulator tank
• Corrosion resistant materials
• Thermal overload protection
• Motor rating: IP 54
• CSA listed
• ISO 8846 MARINE (ignition protection)
•
SPECIFICATIONS
Motor: Permanent Magnet, Ball Bearing Totally Enclosed.
Not for Continuous Duty. Intermittent Duty Only.
Pump: Body - Polypropylene
Diaphragm - Santoprene
Valves - EPDM
Fittings: (2) 1/2” - 14 Male pipe
