FEATURES
* The heatable room dimensions are calculated on the basis of pellets with an lhv of at least 4300 kcal/kg and home insulation in compliance
with Italian law 10/91, and subsequent changes together with an expected heat output of 33 Kcal/m³ per hour.
It is also important to consider the position of the thermal stove in the room to be heated.
A LOT DEPENDS ON THE EFFICIENCY OF THE SYSTEM TERMINALS (heaters).
N.B.
1) Bear in mind that external devices may cause interference.
2) Warning: work on live components, maintenance and /or checks must be performed by qualified personnel.
(Before carrying out any maintenance, disconnect the device from the mains power supply)
ENGLISH
28
ELECTRICAL CHARACTERISTICS
Power supply 230Vac +/- 10% 50 Hz
On/off switch yes
Average power consumed 120 W
Average power consumed upon ignition 400 W
Radio control / Remote control frequency Radio waves 2.4 GHz / Infrared
Main power supply protection ** ** Fuse 2A, 250 VAC 5x20
Electronic control board protection ** Fuse 2A, 250 VAC 5x20
SERIAL PORT
The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone remote,
local thermostat), located at the rear oh the stove. Can be connected via special optional trestle (code 640560).
BACKUP BATTERY
A backup battery is found on the control board (3-Volt CR 2032 battery). Its malfunction is indicated with the following messages
(not considered a defect but due to normal wear-and-tear): “Battery check”.
For more detailed information, please contact the DEALER who has performed the first 1st ignition.
The data shown above is purely indicative.
EDILKAMIN reserves the right to make changes to these products to improve their performance with no prior warning.
SAFETY DEVICES
**

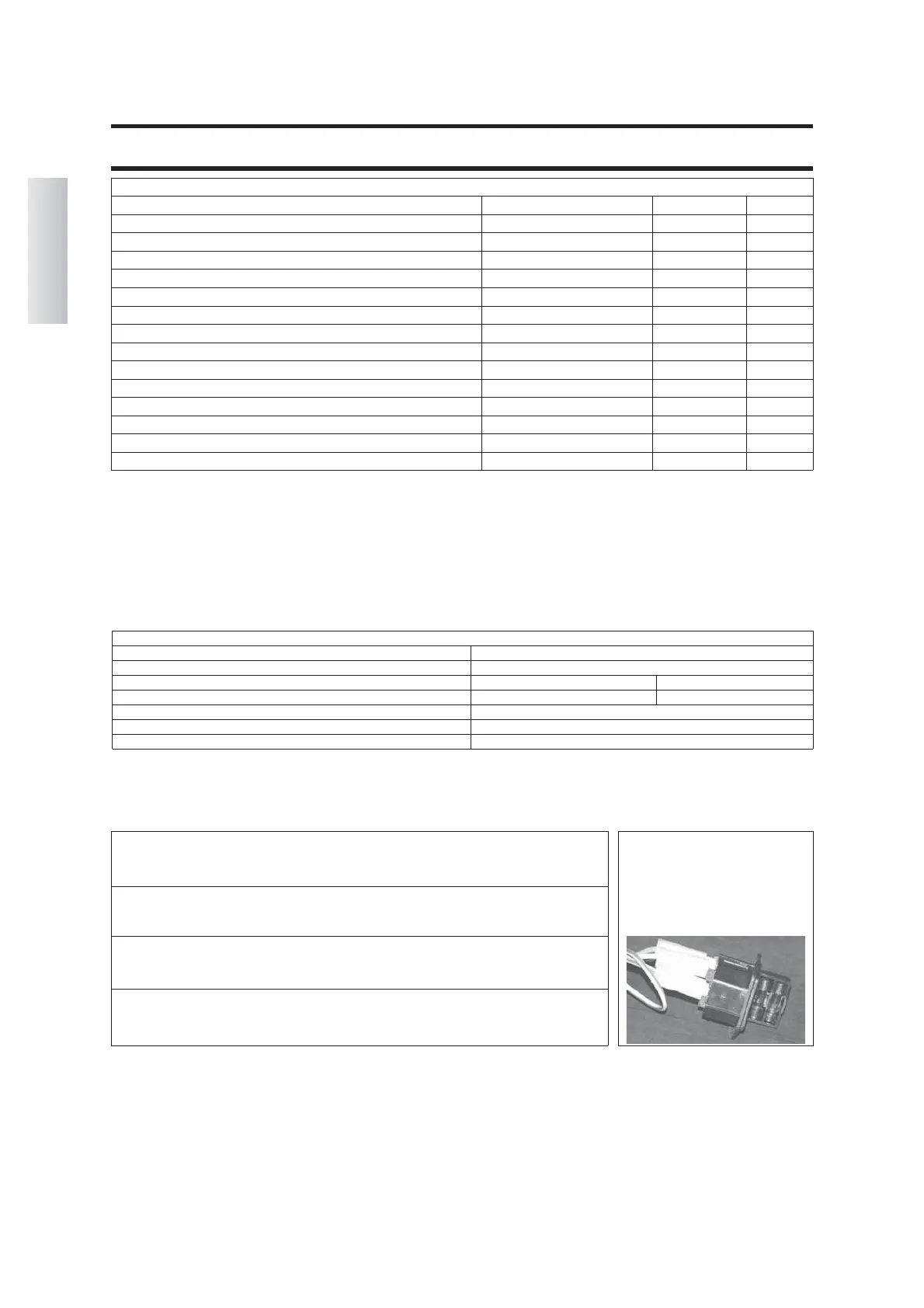

FUSE**
two fuses are inserted in the soc-
ket with switch, located on the
back of the stove, one of which
operational and the other is held
in reserve.
THERMOCOUPLE:
placed at the smoke outlet to detect the temperature. Turns the thermal stove on and off and
controls its operation based on defined parameters.
VACUUM GAUGE (electronic pressure sensor):
positioned on the smoke extractor, which detects the vacuum value (compared to the
installation environment) in the combustion chamber.
WATER SAFETY THERMOSTAT:
trips when the temperature inside the thermal stove is too high.
It stops pellet loading, causing the thermal stove to go out. Reset manually.
TANK SAFETY THERMOSTAT:
trips when the temperature inside the thermal stove is too high.
It stops pellet loading, causing the thermal stove to go out.
TECHNICAL AND HEATING SPECIFICATIONS
ESPRIT/MAGIC/PRESTIGE BASIC
Hopper capacity 26 60 kg
Approx. overall efficiency 91,9 92,7 %
Rated power 18 18 kW
Water heating power 16 18 kW
Min./max. autonomy 6,3 / 21,5 15 / 60 hores
Fuel consumption min./max. 1,2 /4,1 1 /4 kg/h
Minimum draught 12 12 Pa
Max. pressure 3 3 bar
Operating pressure 1,5 1,5 bar
Smoke output temperature from test EN14785 127,5 124 °C
CO emission (13% O2) 0,015 0,007 %
Weight including packing 305 / 270 / 325 258 kg
Heating capacity * 470 470 m
3
Diameter of smoke extract duct male thread 8 8 cm
