FEATURES

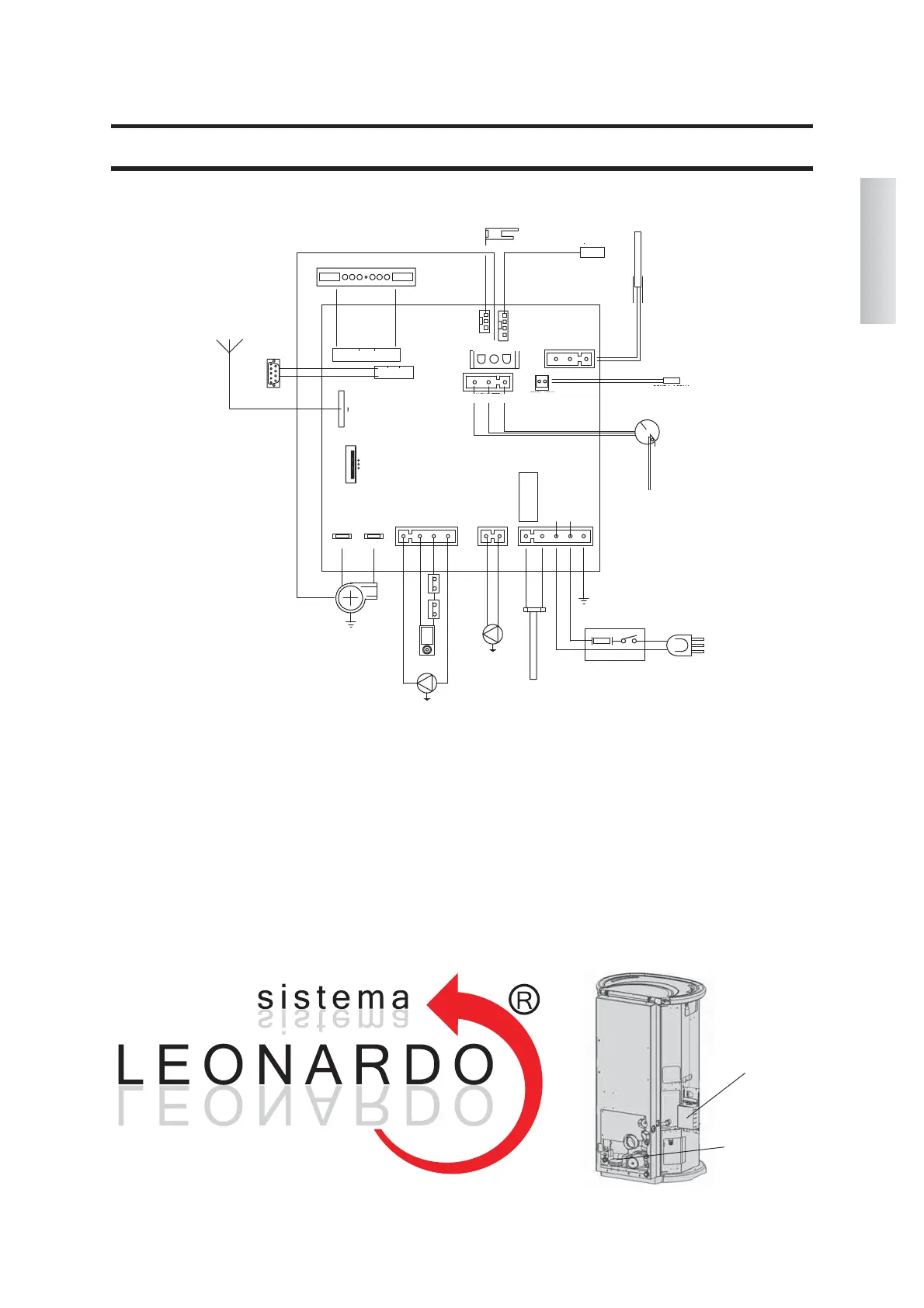

ELECTRONIC CIRCUIT BOARD
The BASIC, ESPRIT - MAGIC and PRESTIGE pellet thermo-stoves are equipped with the LEONARDO® SYSTEM, which provi-
des for optimal combustion.
LEONARDO® ensures excellent operation thanks to two sensors measuring the pressure level in the combustion chamber and
smoke temperature. The detection of and subsequent optimisation of these two parameters is continuous in order to correct opera-
tion anomalies in real time.
The LEONARDO® system offers constant combustion, automatically regulating the draft based on the characteristics of the chim-
ney flue (bends, length, shape, diameter, etc..) and environmental conditions (wind, humidity, atmospheric pressure, installations at
high altitude, etc.). The standards for installation must be respected.
LEONARDO ® system is also able to recognise the type of pellets and automatically adjust the flow moment by moment to ensure
the required level of combustion (use wood pellets with a diameter of approximately 6 mm).
N° M2010A000084
ENGLISH
29
Vacuum gauge
Control board
+---
RPM smoke
TM RM 90°C
CONSOLLE
TM 120°C
Termocoppia
RS232
P1
P2
Flow sensor
Boiler circulator
(optional)
Tx/sx radio module
(Basic)
Antenna
(Basic)
Panel control
Water outlet probe
THERMOCOUPLE
T° smoke
Smoke expulsion
motor
2A Fuse
230 Vac Power
50Hz +/-10%
2A Fuse
Stove rear socket
INGNITION ELEMENT
Outlet pump
Screw
backup battery
Optional
boiler probe
Reading points
Vacuum gauge
RS232
socket
Vacuum gauge
